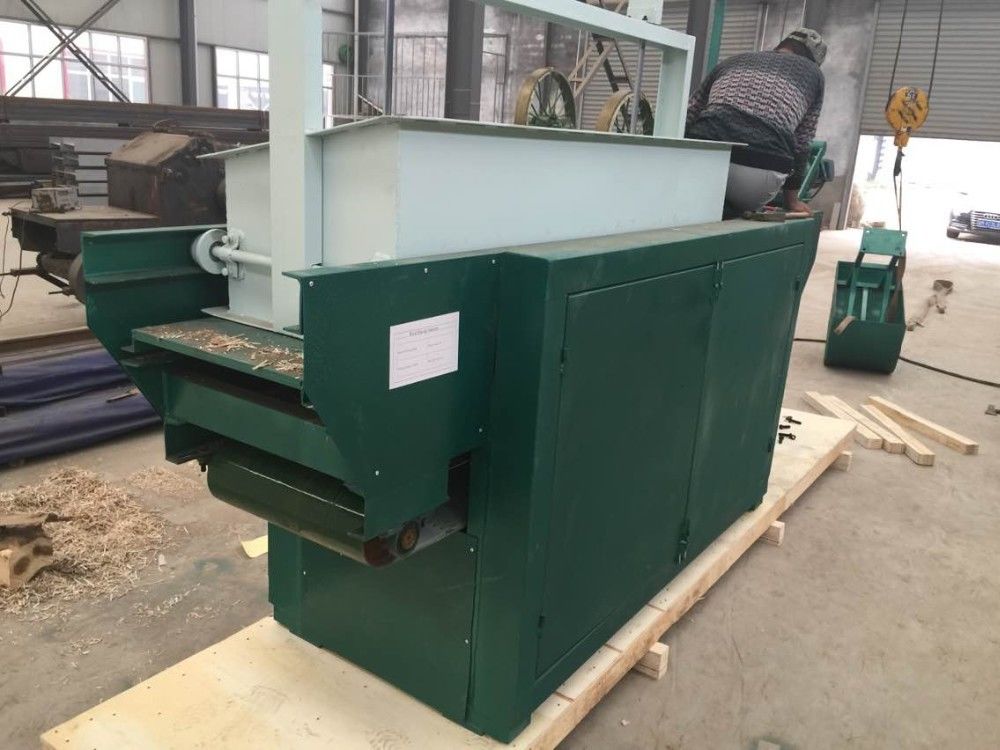

Wood Shaving Machine
Process wood sticks,twigs,branches,wood scraps into shaving.
Adjust the size and thickness of the wood shaving.
It is the material for Plywood,furniture or paper factory.
Add as filler to prevent damage when transport some fragile items.
Use as nest shavings filler in poultry or animal breeding.
Bio-energy ignition material.

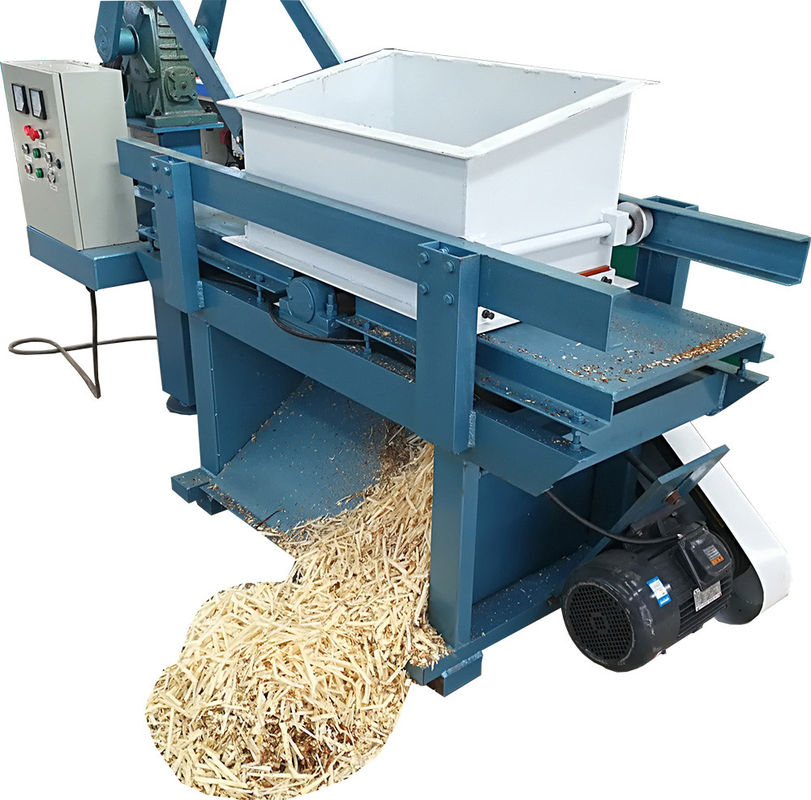

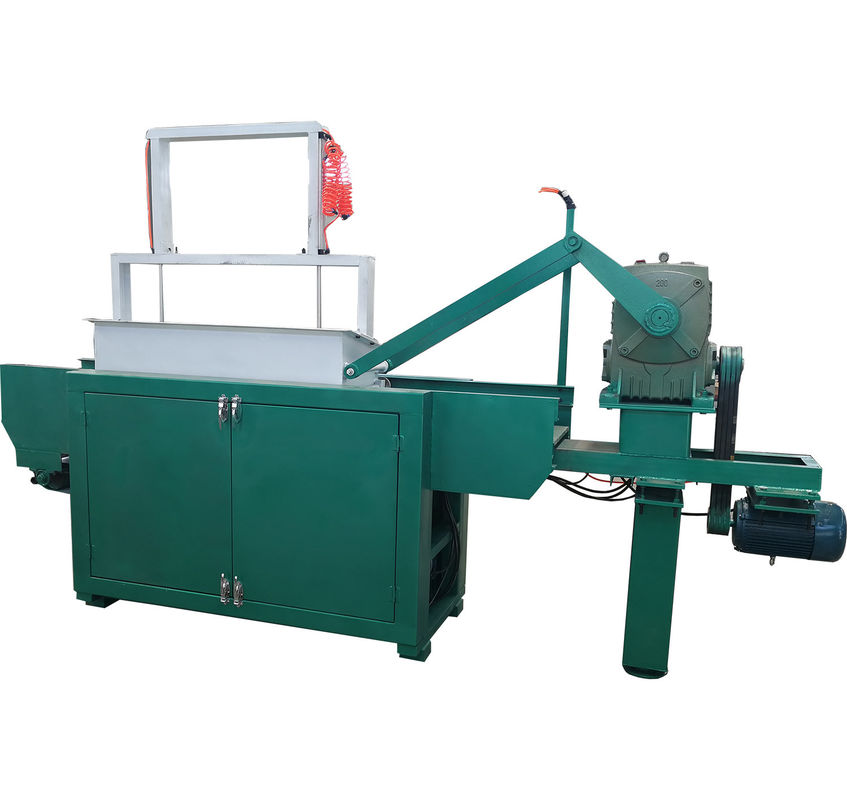

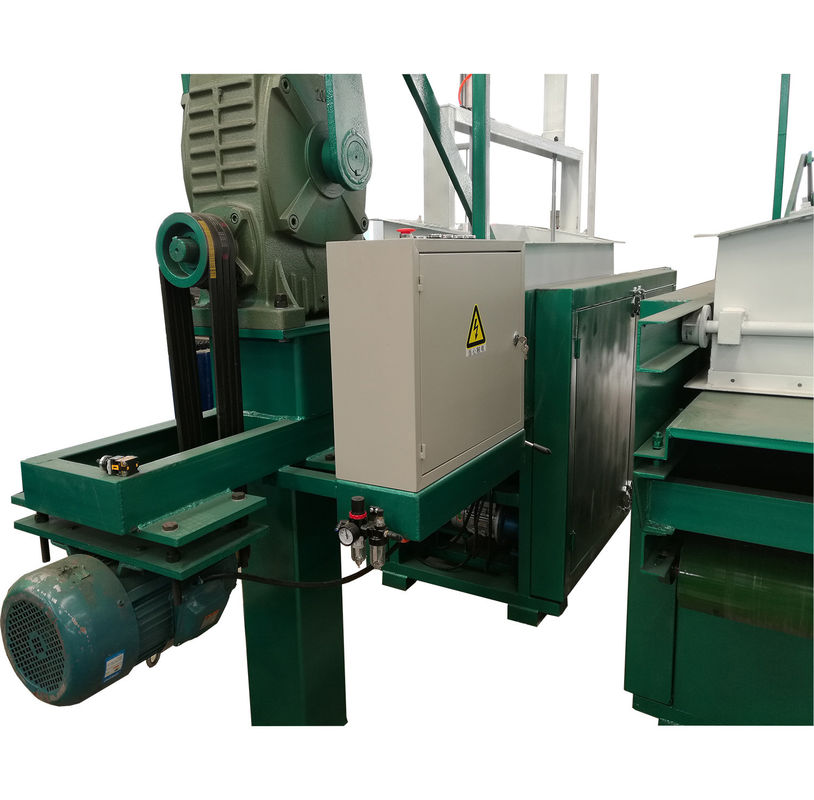

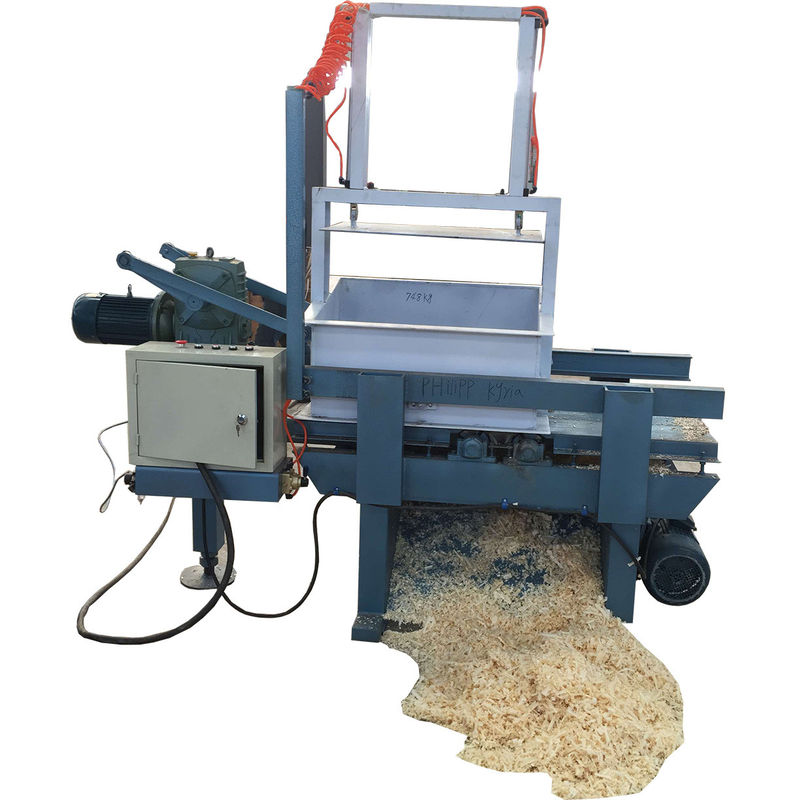

Electric Powered Wood Shaving Machine
|
Model |
SHBH500-1 | SHBH500-2 | SHBH500-4 | SHBH500-6 | SHBH1000-6 |
| Max Processing Length | 800MM | 800MM | 1400MM | 1400MM | 1800 |
|
Production(KG/Hour) |
250 | 500 | 1000 | 1500 | 4000 |
|
Max Processing Width |
500MM | 500MM | 500MM | 500MM | 1000 |
|
Axle Quantity |
1 | 2 | 4 | 6 | 6 |
|
Blade Quantity |
4 | 8 | 16 | 24 | 48 |
|
Total Power (kw) |
7.7KW | 10.5KW | 18.5KW | 25.5KW | 50KW |
|
Shaving Depth(mm) |
1-5 | 1-5 | 1-5 | 1-5 | 1-5 |
|
With pneumatic press cover |
|||||
Diesel Engine Wood Shaving Machine
| Model | SH500-2D | SH500-4D | SH500-6D |
| Max Processing Length | 800MM | 1600MM | 1600MM |
| Production(KG/Hour) | 500 | 1000 | 1500 |
| Max Processing Width | 500MM | 500MM | 500MM |
| Axle Quantity | 2 | 4 | 6 |
| Blade Quantity | 8 | 16 | 24 |
| Speed R/Min | 3500 | 3500 | 3500 |
| Bucket Length | 800 | 1600 | 1600 |
| Diesel Engine | 22HP | 30HP | 40HP |
| Generator | 10KW | 15KW | 15KW |
| Shaving Depth(mm) | 0.2-2 | 0.2-2 | 0.2-2 |
