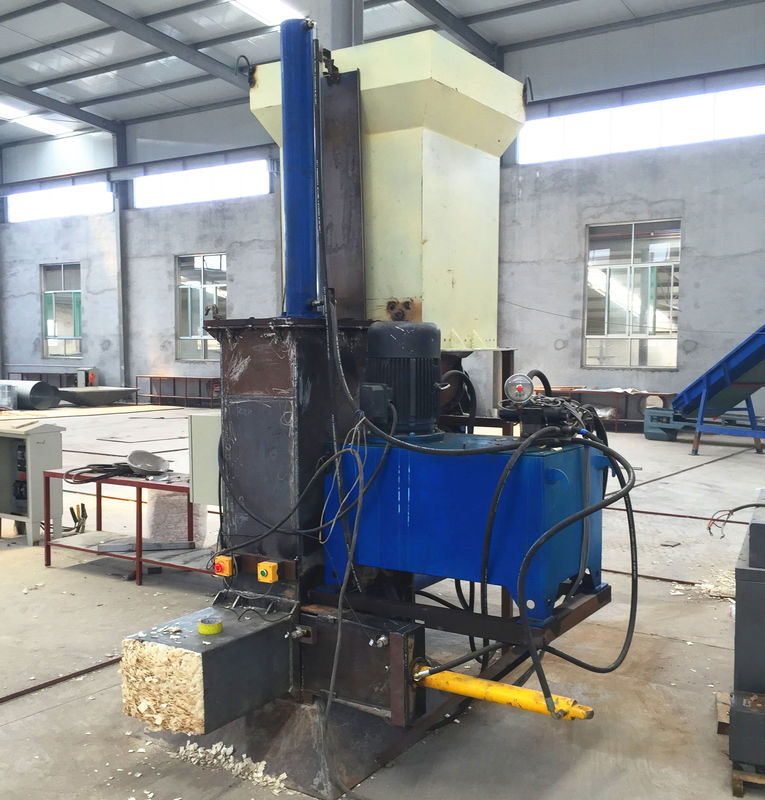

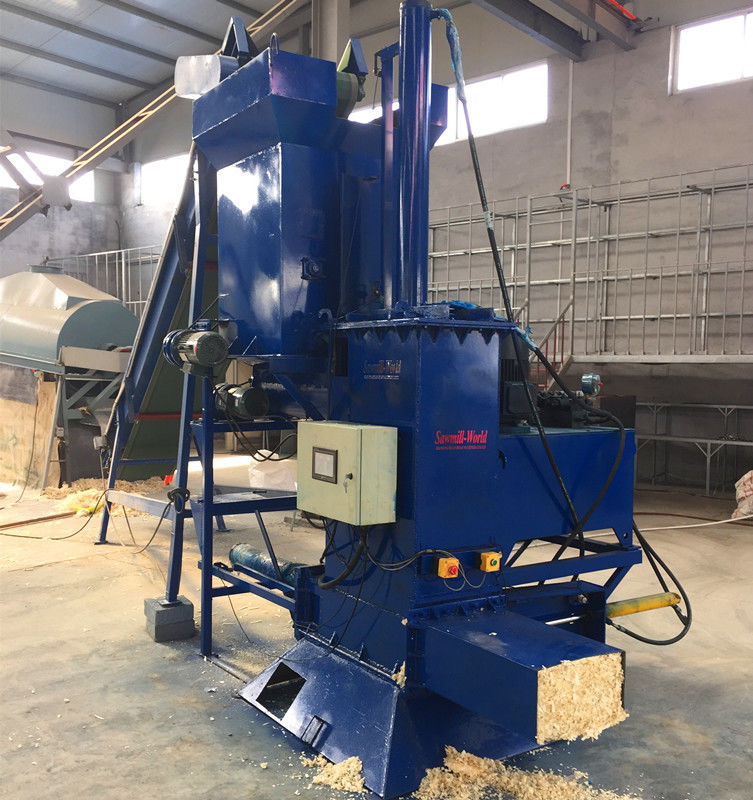

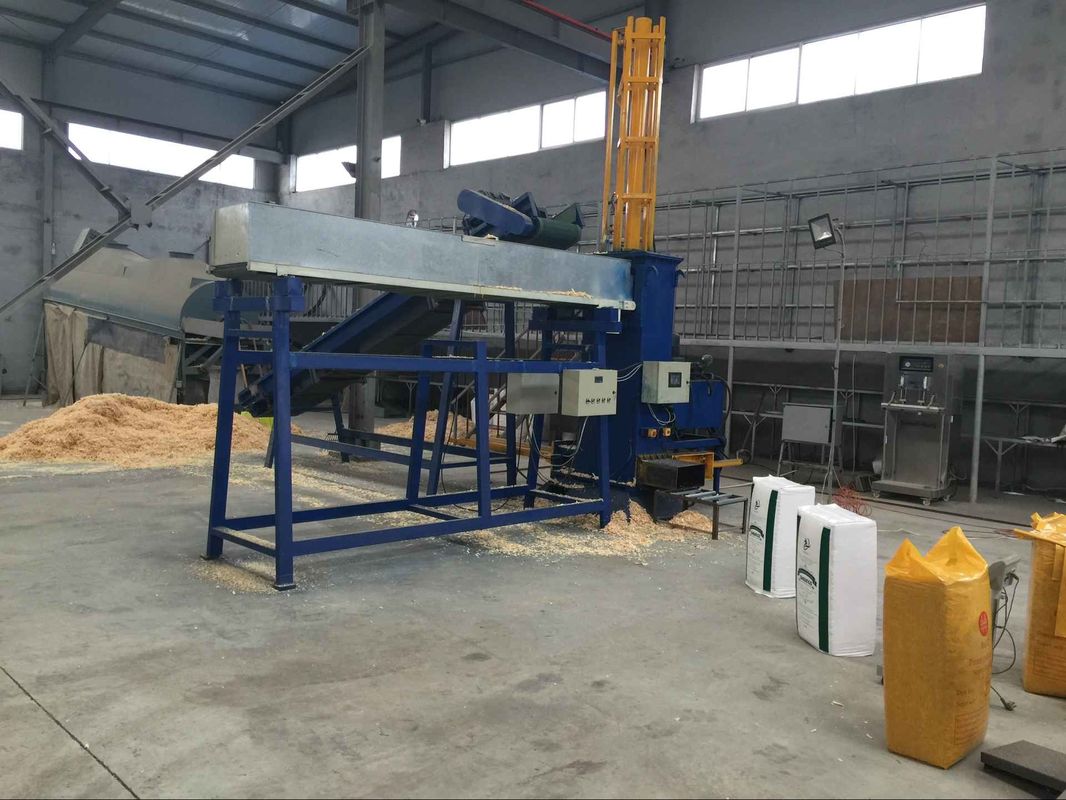

The machine adopts hydraulic transmission, control system.
This machine is with a high degree of automation, smooth speed, high yield, simple operation. And it is suitable for compression packaging of sawdust, wood shavings, cottonseed hull, peanut shells, corn cob and other materials.
The machine is one-time pressure into a bag, easy storage to lower transport cost. After compression, the materials are easy to get out. So can also be used for environmentally building materials, agricultural fertilizers, mushroom cultivation and so on.
Compression chamber size and package shape can be set according to user requirements.
| Model | LS40 |
| Hydraulic cylinder pressure | 40 T |
| Feeding mode | Spiral twisted dragon count feed |
| Operation control mode | PLC programmed, touching screen operate |
| Feeding conveyor size | 5800x600mm |
| Main motor power | 18kw |
| Package size or as customer needs | 720x440x320mm; 600 x 400 x300mm |
| Package weight | 15-20kgs/pc |
| Machine weight | 2500kg |

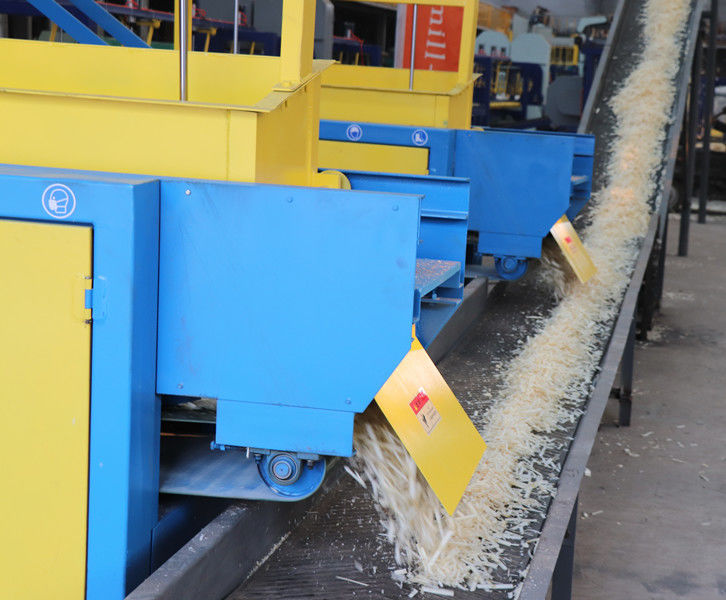

Wood Shaving Machine
Process wood sticks,twigs,branches,wood scraps into shaving.
Adjust the size and thickness of the wood shaving.
It is the material for Plywood,furniture or paper factory.
Add as filler to prevent damage when transport some fragile items.
Use as nest shavings filler in poultry or animal breeding.
Bio-energy ignition material.
Electric Powered Wood Shaving Machine
|
Model |
SHBH500-1 | SHBH500-2 | SHBH500-4 | SHBH500-6 | SHBH1000-6 |
|
Max Processing Length |
800MM | 800MM | 1400MM | 1400MM | 1800 |
|
Production(KG/Hour) |
250 | 500 | 1000 | 1500 | 4000 |
|
Max Processing Width |
500MM | 500MM | 500MM | 500MM | 1000 |
|
Axle Quantity |
1 | 2 | 4 | 6 | 6 |
|
Blade Quantity |
4 | 8 | 16 | 24 | 48 |
|
Total Power (kw) |
7.7KW | 10.5KW | 18.5KW | 25.5KW | 50KW |
|
Shaving Depth(mm) |
1-5 | 1-5 | 1-5 | 1-5 | 1-5 |
|
With pneumatic press cover |
|||||
