| Place of Origin: | shandong province, China |
| Brand Name: | SH |
| Certification: | ISO9001 |
| Model Number: | SHBH500-2,SHBH500-4,SHBH500-6 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | US $3,900 - 15,800 / Set |
| Packaging Details: | wooden pallet or iron frame packings |
| Delivery Time: | within 20 days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 1000sets/year |
| Product Name: | Wood Shaving Making Machine For Horse Chicken Animal Bedding | Condition: | New |
|---|---|---|---|
| Type: | Hot Sale Wood Shaving Machine For Animal Beds | Production Capacity: | 500-1500kg/hour |
| Voltage: | 380V, 3PHASE/50HZ Or As Customer Needs | Power(w): | 10.5KW-30.75KW |
| Max Width Of Wood: | 500mm | Max Length Of Wood: | 1400mm |
| Weight: | 950kgs-2200kgs | Applicable Industries: | Manufacturing Plant,Farms |
| After-sales Service Provided: | Online Support,Video Technical Support,Free Spare Parts | Warranty: | 1 Year |

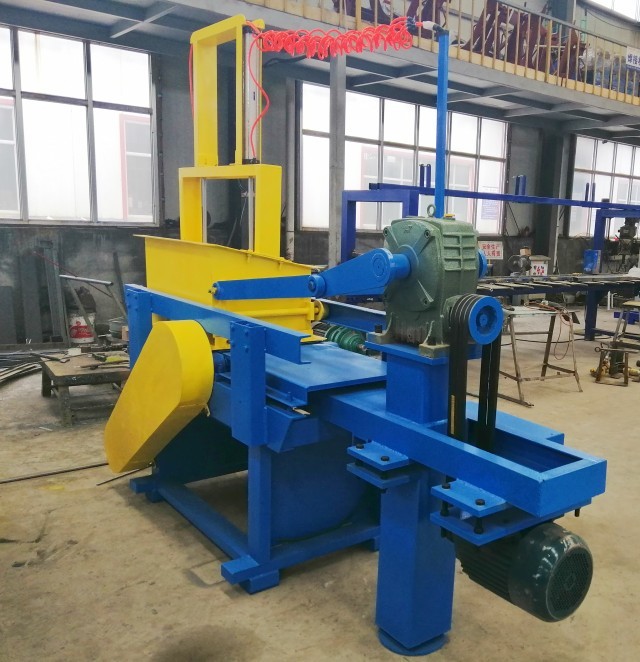

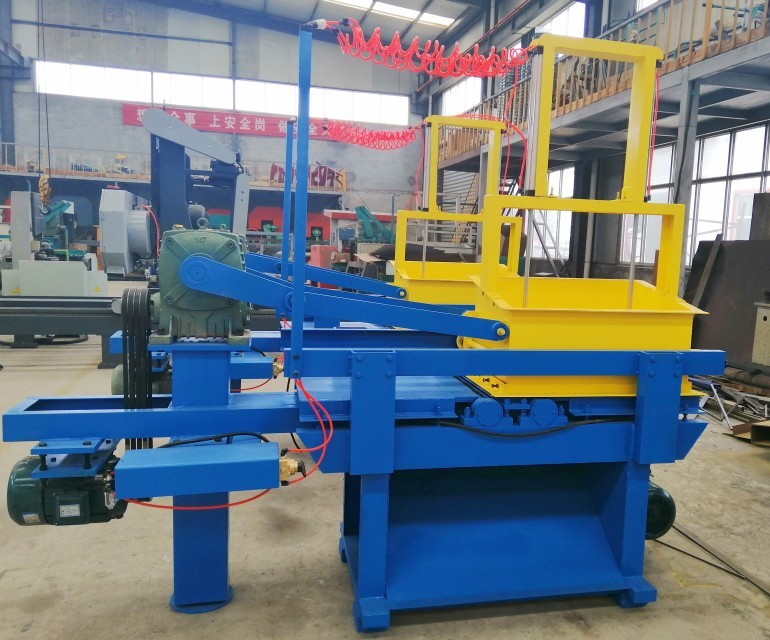

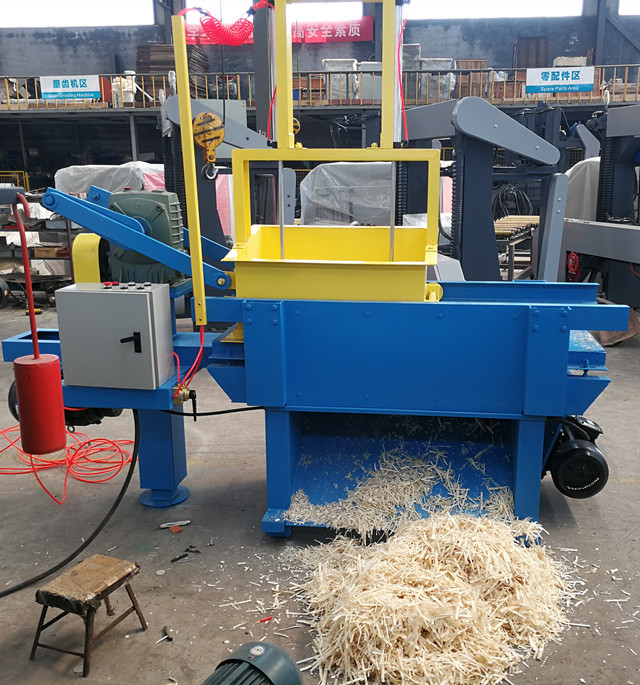

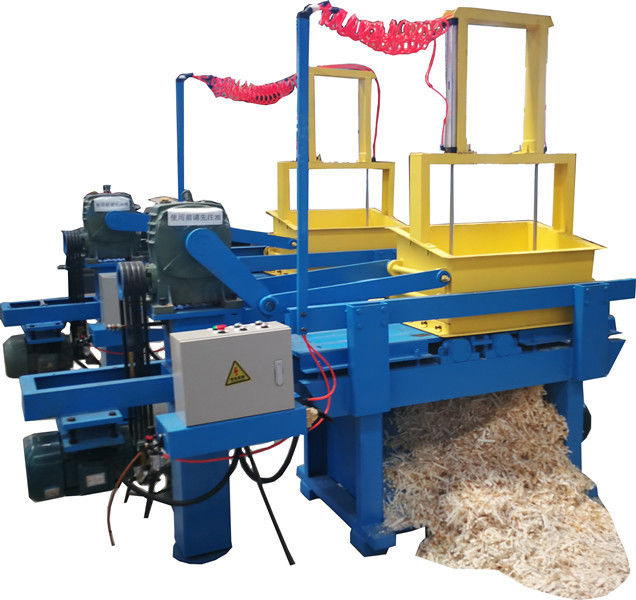

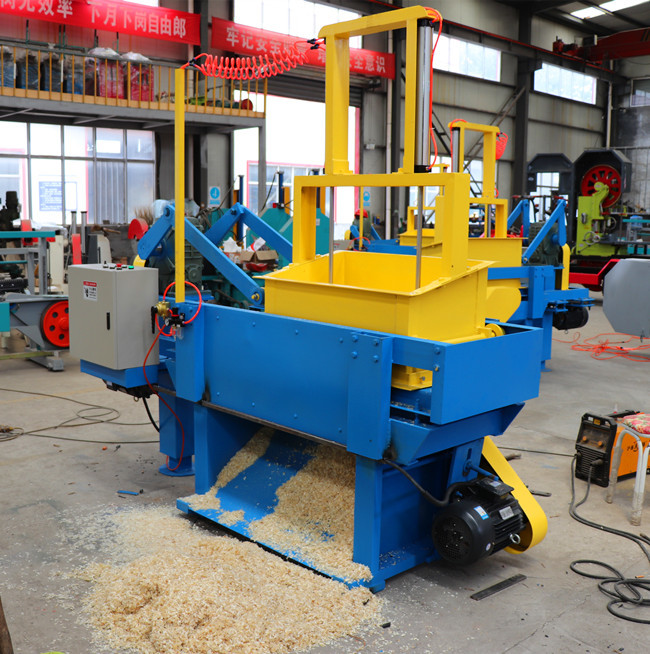

Wood Shaving Machine
Process wood sticks,twigs,branches,wood scraps into shaving.
Adjust the size and thickness of the wood shaving.
It is the material for Plywood,furniture or paper factory.
Add as filler to prevent damage when transport some fragile items.
Use as nest shavings filler in poultry or animal breeding.
Bio-energy ignition material.
Working video link : https://youtu.be/hYl98MumWqI
video link : https://youtu.be/Ls9bCIdzzpU
Technical Specifications:
| Model | SHBH500-2 | SHBH500-4 | SHBH500-6 |
| Processing wood max. length(mm) | 800 | 1400 | 1400 |
| Processing max. width/diameter(mm) | 500 | 500 | 500 |
| Shaft quantity | 2 | 4 | 6 |
| Blade (pcs) | 8 | 16 | 24 |
| Motor speed (rpm) | 3500 | 3500 | 3500 |
| Bin length (mm) | 800 | 1400 | 1400 |
| Total Motor power (kw) | 10.5KW | 23.25KW | 30.75KW |
| Shaving depth (mm) | 0.2-1 | 0.2-1 | 0.2-1 |
| Shavings output | 500KG/H | 1000KG/H | 1500KG/H |
| Machine weight | 950kgs | 1800kgs | 2200kgs |
| 1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity; | |||
