Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs

  • Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs
  • Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs
  • Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs
  • Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs
  • Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs
  • Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs
Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number MJ1200,MJ1500, MJ2000, MJ2500
Minimum Order Quantity 1 SET
Price US $12,000 - 31,000 / Set
Packaging Details container loading
Delivery Time within 20 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conditon New Type Horizontal Band Saw
Use Woodworking Voltage 380V/3phase/50HZ Or As Customer Needs
Power 30KW- 53KW Weight 2800kg To 4000kgs
Warranty 12 Months After-sales Service Provided Engineers Available To Service Machine Overseas
Operation PLC Touching Screen Automatic Engine Electrical Type Or Diesel Engine Powered
High Light

Electric Motor Large Bandsaw Mill

,

Horizontal Band Saw For Cutting Logs

,

Large Bandsaw Mill Horizontal
Leave a Message
Product Description

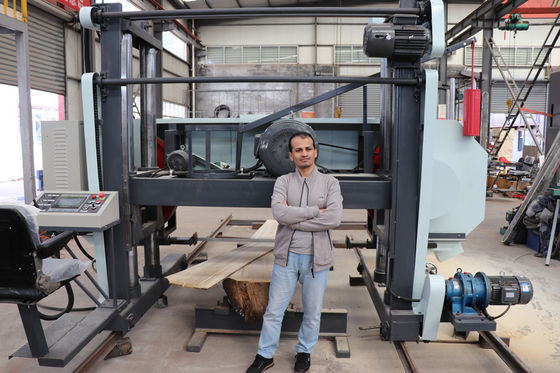

Automatic Wood Band Saw Machine Electric Motor Log Cutting Horizontal Bandsaw Mill

Heavy Duty Large Size Horizontal Band Sawmill

  • The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
  • It have large saw wheel and high power.
  • Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola, Fiji and Southeast Asian countries .

Technical specifications:



Model  MJ1200 MJ1500 MJ2000 MJ2500
Max. sawing width  1200mm 1500mm 2000mm 2500mm
Height from blade to track 1100mm 1200mm 1700mm 2200mm
Saw wheel diameter  1070mm 1070mm 1070mm 1070mm
Max.sawn thickness 350mm 350mm 400mm 400mm
Sawing wood length max. 6meters 6meters  6meters  6meters
Saw blade length & width 7900 &125mm 8600&125mm 9700&125mm 10500&125,150mm
Main motor power 30kw  37kw 45kw 55kw
Weight 3800kgs 4500kg 5000kg 5500kg




















Detailed Image

Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs 0
Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs 1
Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs 2

Optional Parts- free base ground track

Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs 3
Optional Parts- pre-cut
Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs 4

Diesel Engine Powered Large Size Horizontal Band Sawmill
Model MJ1200 MJ1500 MJ2000 MJ2500
Max. sawing width 1200mm 1500mm 2000mm 2500mm
Height from blade to track 1100mm 1200mm 1700mm 2200mm
Saw wheel diameter 1070mm 1070mm 1070mm 1070mm
Max.sawn thickness 350mm 350mm 400mm 400mm
Sawing wood length max. 6meters 6meters 6meters 6meters
Saw blade length & width 7900 &125mm 8600&125mm 9700&125mm 10500&125,150mm
Diesel engine +20kw generator 80HP 80HP 80HP 80HP
Weight 3800kgs 4500kg 5000kg 5500kg


Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs 5Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs 6

Spare parts -optional  -auto blade sharpener

Electric Motor Large Bandsaw Mill Horizontal Band Saw For Cutting Logs 7
