Name: Hydraulic Horizontal Log Band Saw Big Automatic Wood Sawmill For Sawing Wood
Brand: Weifang Jiuyi Information technology co., LTD
SKU: MJH1200E,MJH1500E
Price: 30.00 USD
Availability: InStock

Detail Information

Product Name:	Hydraulic Horizontal Band Saw For Wood Plank Board	Type:	Horizontal Band Saw
Max. Sawing Log Diameter:	1500mm	Max. Sawing Log Length:	4500mm Or As Customer Needs
Power:	37KW,45KW	Operation:	PLC Touching Screen Auto Setworks
Applicable Industries:	Manufacturing Plant	Key Selling Points:	Competitive Price,Automatic,High Productivity,Easy To Operate
Warranty:	12 Months	After-sales Service Provided:	Online Support,Video Technical Support

Product Description

Heavy Duty Hydraulic Automatic Wood Cutting Horizontal Band Sawmill

Combined with Hydraulic automation technology, the heavy duty hydraulic horizontal band sawmill realizes all digital intelligent control .
Chinese and English operating systems, automatic rotation, sawing and cutting of large diameter wood, simple operation of equipment, precise cutting thickness, improves wood usage rate .

Technical Data:

Model	MJH1200E	MJH1500E
Max Sawing Wood Diameter	1200mm	1500mm
Saw Wheel Diameter	1000mm	1070mm
Max Sawing Wood Thickness	400mm	400mm
Standard Sawing Wood Length	4500mm	4500mm
Electric Motor Power	37kw	45kw
Up/Down Electric Motor	2.2kw	2.2kw
Forward/Backward Electric Motor	3kw	3kw
Band Saw Blade Width	125-150mm	125-150mm
Band Saw Blade Tension	Electric
Machine Length	7000mm	7000mm
Weight	7000kg	8500kg

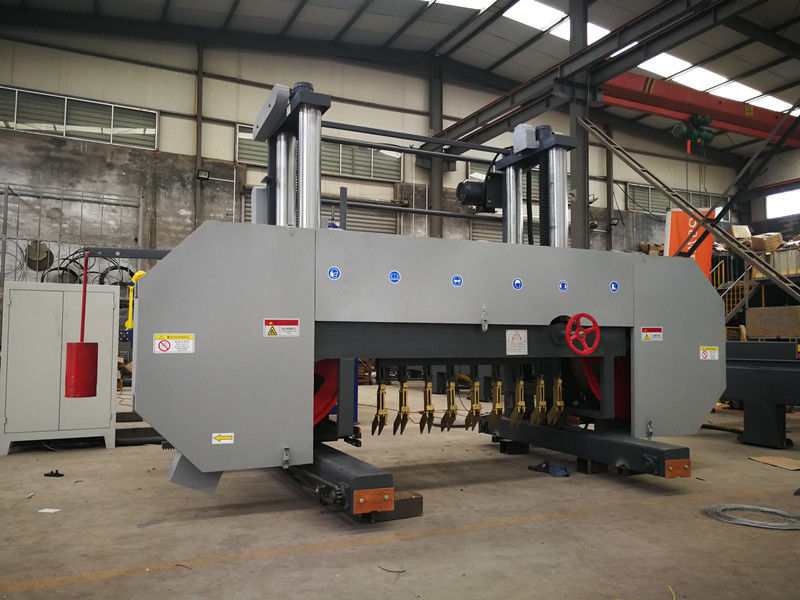

Hydraulic Horizontal Log Band Saw Big Automatic Wood Sawmill For Sawing Wood 0

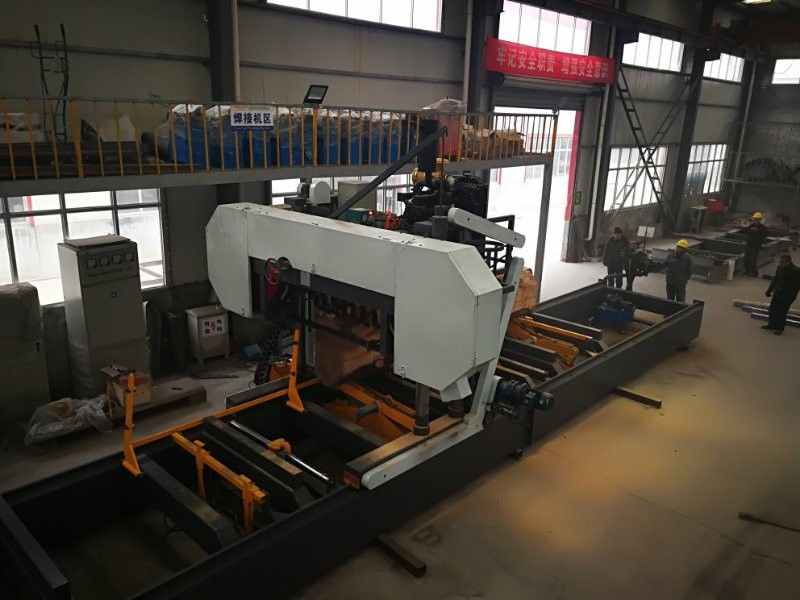

Hydraulic Horizontal Log Band Saw Big Automatic Wood Sawmill For Sawing Wood 1

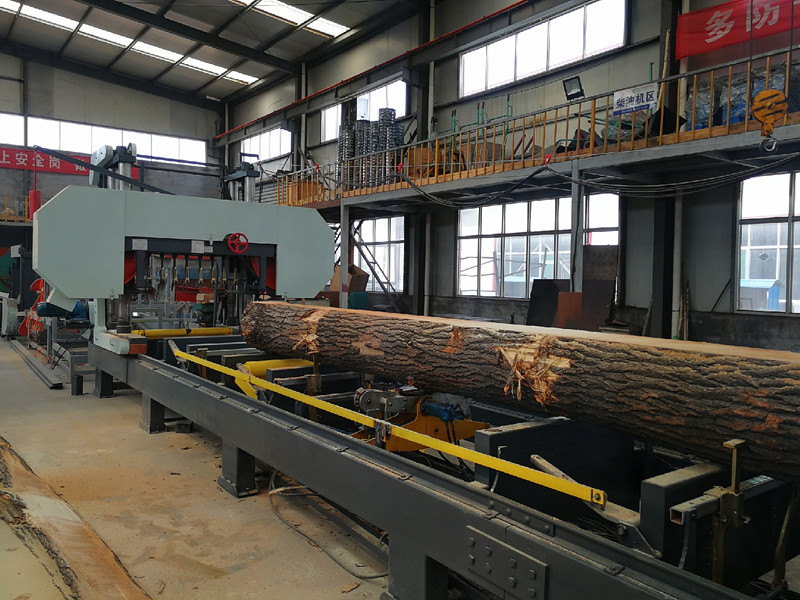

Hydraulic Large Sawmill Automatic Production Line - we design it as customer needs

Hydraulic Horizontal Log Band Saw Big Automatic Wood Sawmill For Sawing Wood 3

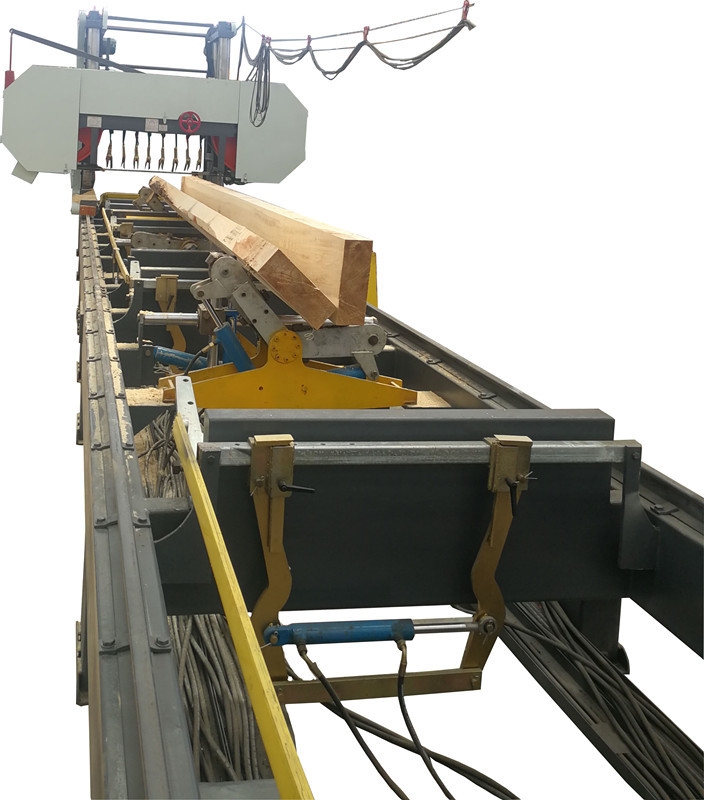

Optional - Log Loading Rack

Hydraulic Horizontal Log Band Saw Big Automatic Wood Sawmill For Sawing Wood 4

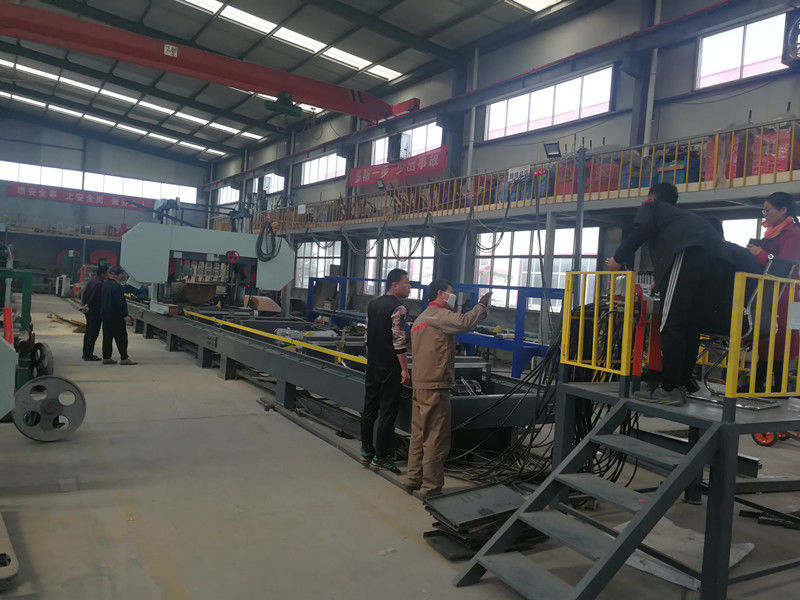

Optional - Board Roller Conveyor

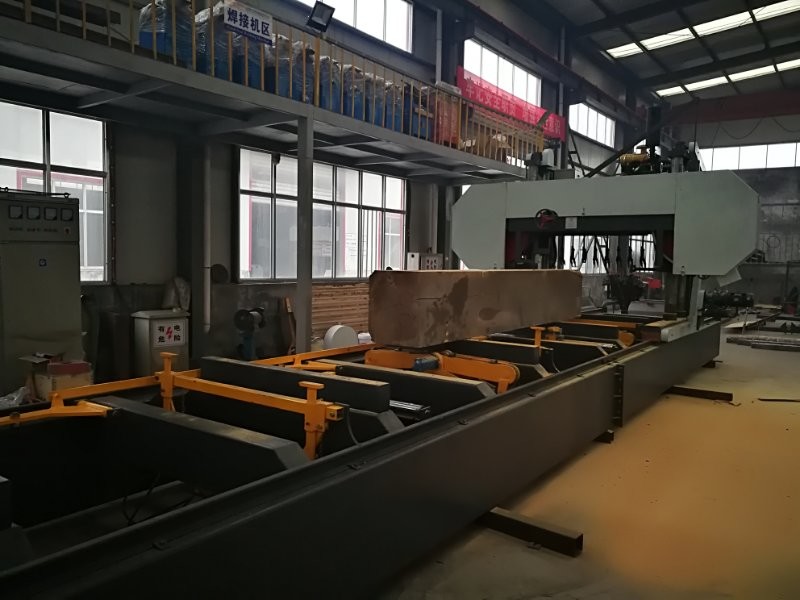

Hydraulic Horizontal Log Band Saw Big Automatic Wood Sawmill For Sawing Wood 5

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	MJH1200E,MJH1500E

Minimum Order Quantity:	1 SET
Price:	US $21,000 - 39,000 / Set
Packaging Details:	container loading
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	500sets/year
