1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	MJH1200E,MJH1500E

Minimum Order Quantity:	1 SET
Price:	US $41,000 - 51,000 / Set
Packaging Details:	container loading
Delivery Time:	within 15 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	500sets/year

Get Best Price Contact Now

Detail Information

Name:	Heavy Duty Hydraulic Automatic Band Sawmill	Max. Sawing Log Diameter:	1500mm
Max. Sawing Log Length:	4500mm Or Extend Sawmill Track	Saw Wheel Diameter:	1070mm
Band Saw Blade Width:	125mm, 150mm	Saw Head Up/down:	Electric 2.2kw
Band Saw Blade Tension:	Electric	Operation:	Touching Screen Auto Setworks
Main Motor Power:	37kw, 45kw	Cutting Speed:	10-15meters/minute
Highlight:	1500mm Hydraulic Bandsaw Machine , 1500mm Horizontal Band Sawing Machine , Hydraulic Bandsaw Machine Horizontal

Product Description

Heavy Duty Hydraulic Horizontal Band Sawing Machine For Large Wood

Heavy Duty Hydraulic Automatic Wood Cutting Horizontal Band Sawmill

Combined with Hydraulic automation technology, the heavy duty hydraulic horizontal band sawmill realizes all digital intelligent control . Chinese and English operating systems, automatic rotation, sawing and cutting of large diameter wood, simple operation of equipment, precise cutting thickness, improves wood usage rate .

Key features:

Fast return speed & servo controlled blade positioning,
Fast automatic control preventing operator delays,
High speed hydraulic log manoeuvring functions,
Precision made machine with top quality components.

Technical Data:

Model	MJH1200E	MJH1500E
Max Sawing Wood Diameter	1200mm	1500mm
Saw Wheel Diameter	1000mm	1070mm
Max Sawing Wood Thickness	400mm	400mm
Standard Sawing Wood Length	4500mm	4500mm
Electric Motor Power	37kw	45kw
Up/Down Electric Motor	2.2kw	2.2kw
Forward/Backward Electric Motor	3kw	3kw
Band Saw Blade Width	125-150mm	125-150mm
Band Saw Blade Tension	Electric
Machine Length	7000mm	7000mm
Weight	7000kg	8500kg

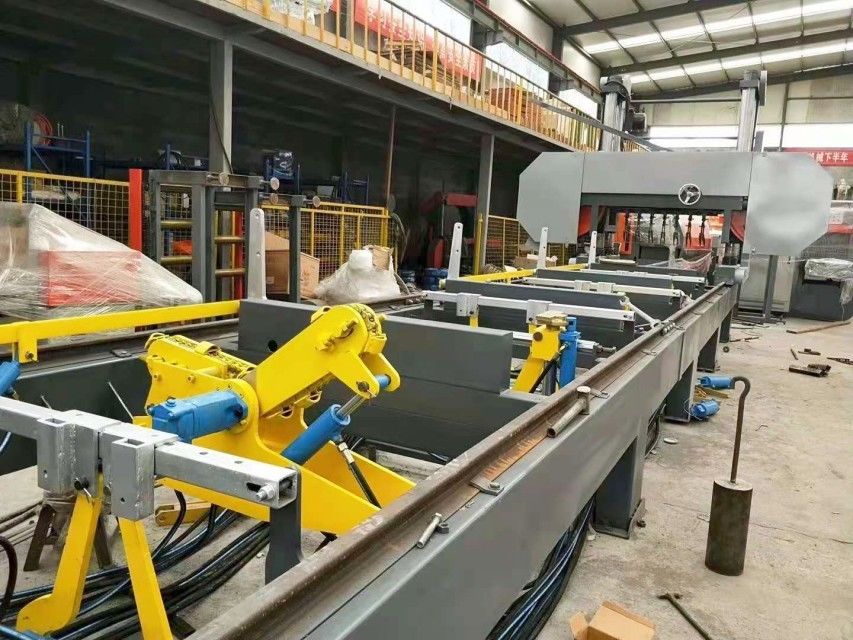

1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill 0

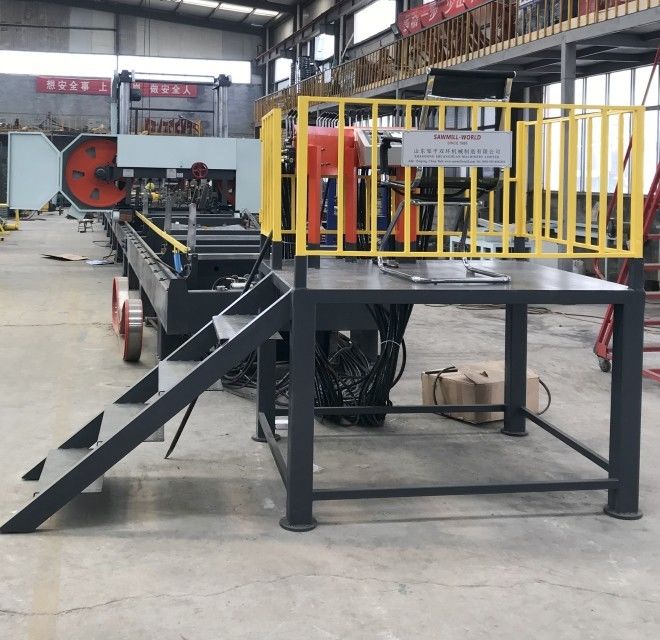

1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill 1

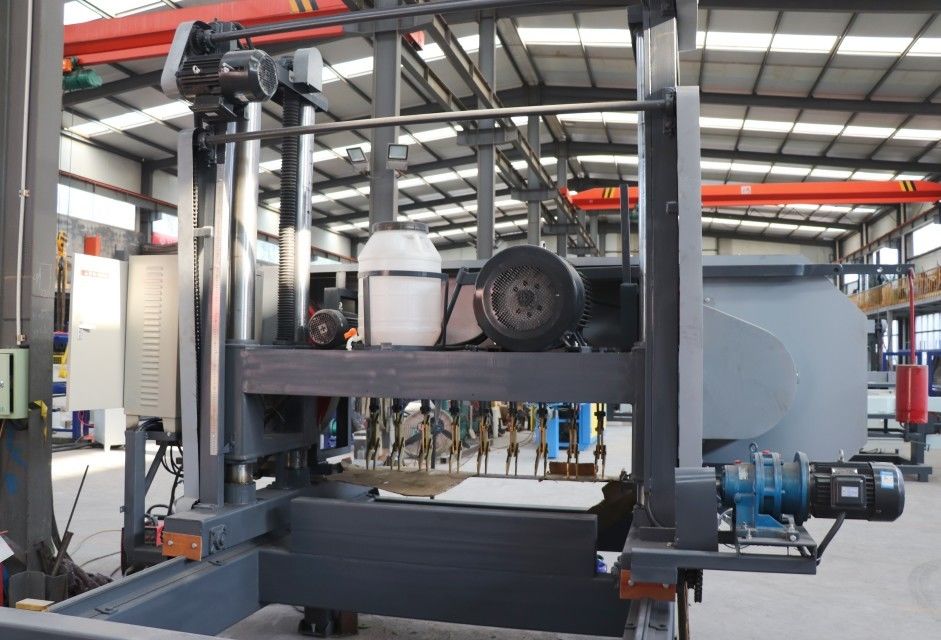

1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill 3

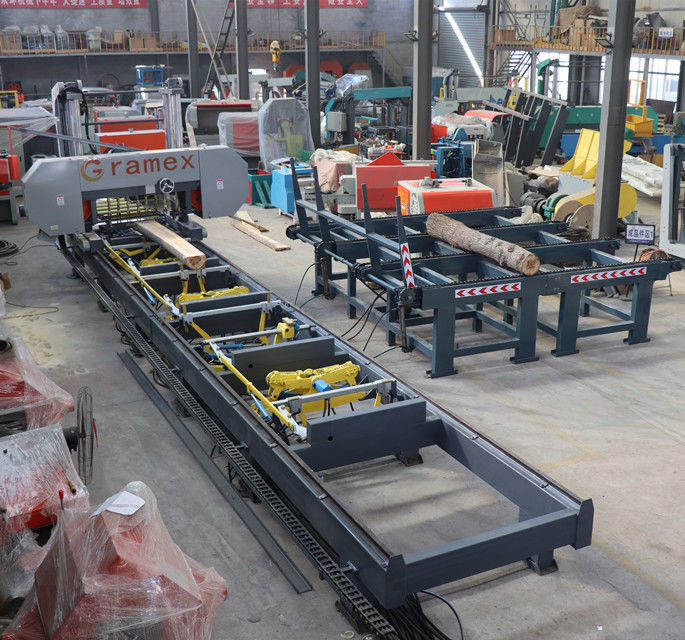

Hydraulic Large Sawmill Automatic Production Line - we design it as customer needs

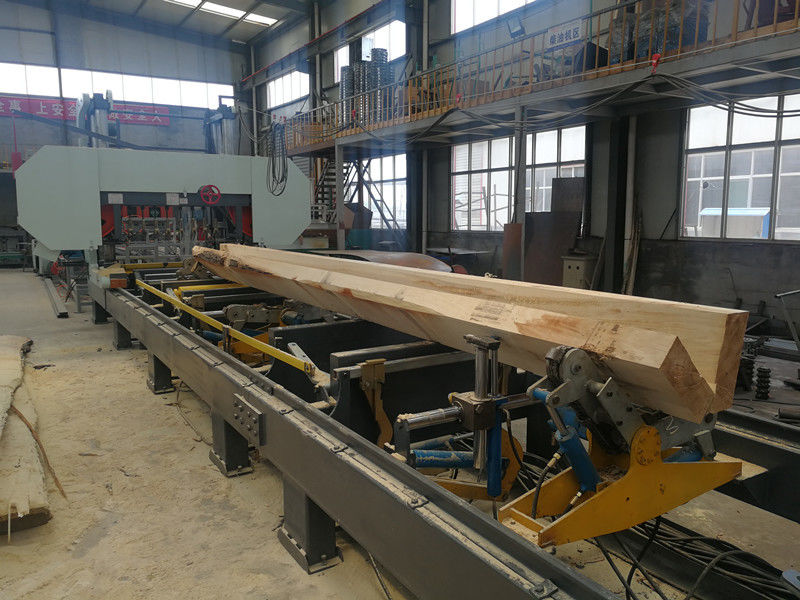

1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill 4

Optional - Log Loading Rack

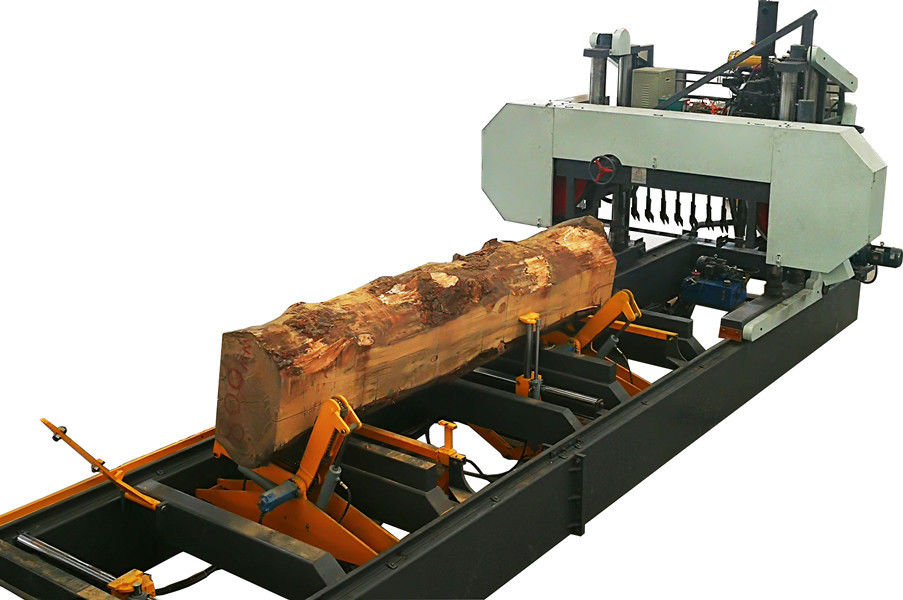

1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill 5

Optional - Board Roller Conveyor

1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill 6
