Log cutting band saw horizontal wood bandsaw mills, Hydraulic Automatic Band Saw Machine

Basic Information

Get Best Price Contact Now

Detail Information

Product Name:	Hydraulic Horizontal Band Saw For Wood Plank Board	Condition:	New
Type:	Band Saw	Usage:	Wood Cutting
Style:	Horizontal	Voltage:	380v/3phase/50HZ Or As Customer Needs
Power(W):	22 Kw - 30 Kw	Warranty:	12 Month
Cut Max. Wood Diameter:	700mm - 1000mm	After-sales Service Provided:	Online Support,Video Technical Support
Highlight:	hydraulic automatic band saw machine , horizontal wood bandsaw mills , log cutting band saw

Product Description

The max. cutting wood diameter can be customized as your requests

Model	MJH1000E	MJH700E
Max Sawing Wood Diameter	1000mm	700mm
Saw Wheel Diameter	700mm	700mm
Max Sawing Wood Thickness	300mm	300mm
Standard Sawing Wood Length	4000mm	4000mm
Electric Motor Power	30kw	22kw
Up/Down Electric Motor	1.5kw	1.5kw
Forward/backward Electric Motor	2.2kw	2.2kw
Saw Blade Width	27mm-75mm	27mm-75mm
Blade Tension	Hydraulic	Hydraulic
Machine Length	5800mm	5800mm
Weight	2500kg	2300kg

Standard Configuration
	Touch Screen Accuset Setworks Automatically moves head for each cut and head walking speed is Frequency variable			Hydraulic Clamp *1 Secure and stabilize the log
	Hydraulic Wood Clamp*4 Secure and stabilize the log			Hydraulic vertical side supports *4 Secure and stabilize the log
	Hydraulic Log Loading Arm *1			Board automatic return hook
Optional parts:
		Mobile Wheels, 8 Adjustable Up/down legs	Hydraulic bi-directional Chain log turner*2 For max. log control
		Hydraulic plank roller axle x1	Extend The Rail Length

Related Saw Machine

Portable Horizontal Band Sawmill (Electric Model )

Portable horizontal band saw which is easy to install and operate.
Finished with Carbide band saw blade for hard wood cutting .
The sawing kerf is small, reduce the waste to high output.
The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .

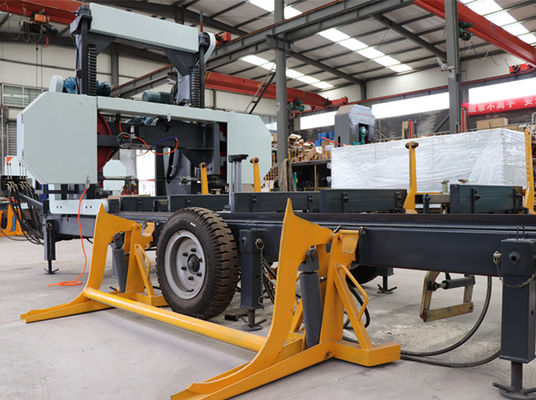

Detailed Images of stanard model:

Sawing Effect

Log cutting band saw horizontal wood bandsaw mills, Hydraulic Automatic Band Saw Machine 15

Optional - Inverter Feeding, Inverter feeding + Sizing auto setworks

Log cutting band saw horizontal wood bandsaw mills, Hydraulic Automatic Band Saw Machine 16

Optional - Pneumatic log clamping

Log cutting band saw horizontal wood bandsaw mills, Hydraulic Automatic Band Saw Machine 17

Optional - Board returning hook

Log cutting band saw horizontal wood bandsaw mills, Hydraulic Automatic Band Saw Machine 18

Optional - Mobile usage + hydraulic log loading arm

Log cutting band saw horizontal wood bandsaw mills, Hydraulic Automatic Band Saw Machine 19
