Detail Information

Name:	Hydraulic Sawmill Line	Type:	Band Saw
Application Wood:	Hardwood Logs And Softwood	Max. Sawing Log Diameter:	1500mm
Voltage:	380v,3ph,50HZ Or As Customer Needs	Max. Sawing Log Length:	4500mm Or Extend Sawmill Track
Capacity:	150-200m3/day	Optional:	Design As Customer Needs
Sawing Thickness Setting:	Automatic Operation	Warranty:	12 Months
Highlight:	Auto Hydraulic Bandsaw Machine , Hardwood Log Band Saw , 1500mm Dia Log Band Saw

Product Description

Wood Cutting Hydraulic Automatic Band Saw Machine, Auto Sawmill Production line for big logs

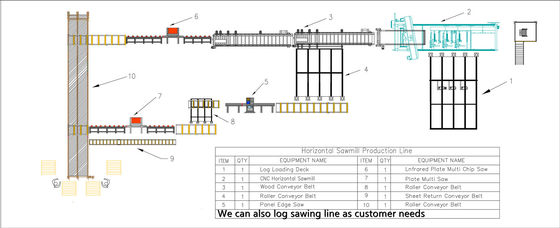

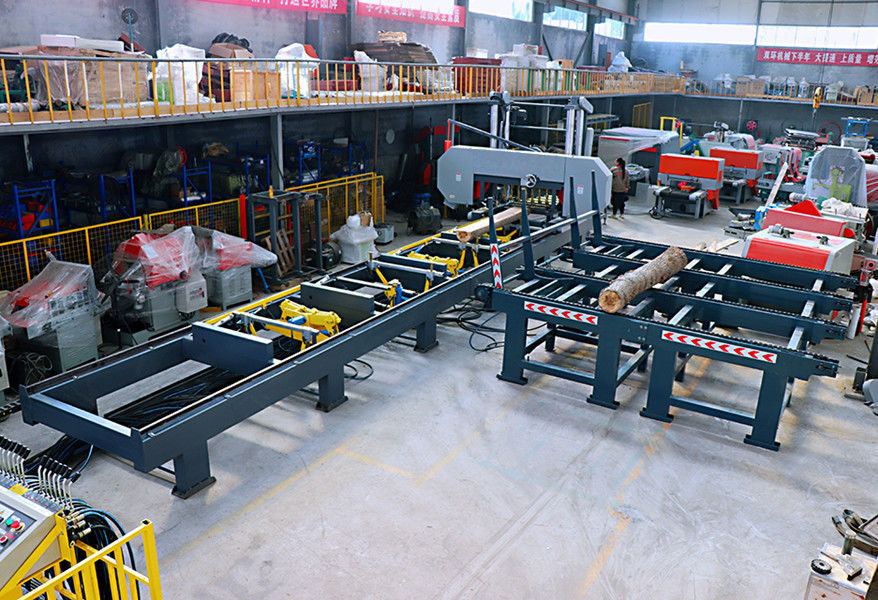

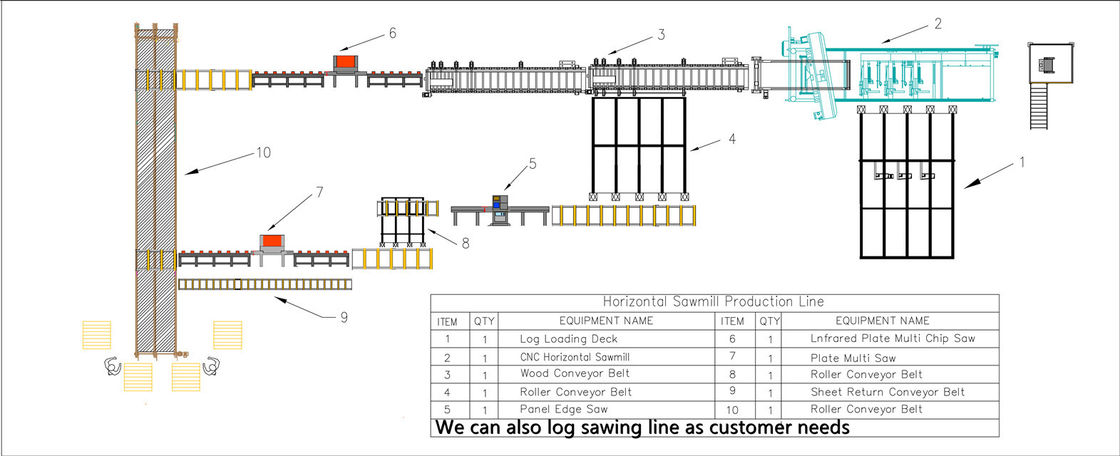

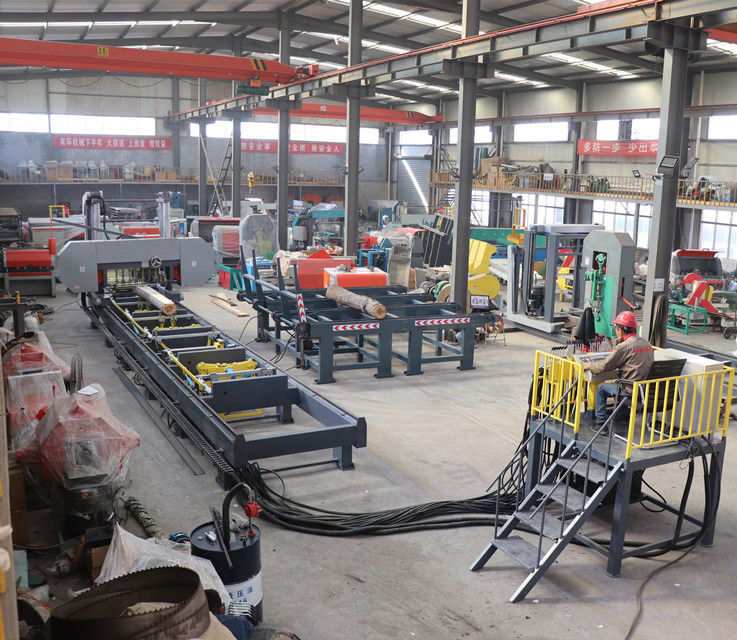

Log Sawing Automatic Production Line:Hydraulic Horizontal Band Sawmill + Multi Blades Ripsaw

For log max. diameter 900mm, length 5meters
Auto Hydraulic Bandsaw Machine Hardwood Log Band Saw 1500mm Dia 0
Specification:


1.log loading deck
Conveyor length		5meters
Conveyor total width		4meters
Feeding type		Frequency auto feeding & speed adjustable
Loading mode		Pneumatic
Feeding mode		Chain feeding

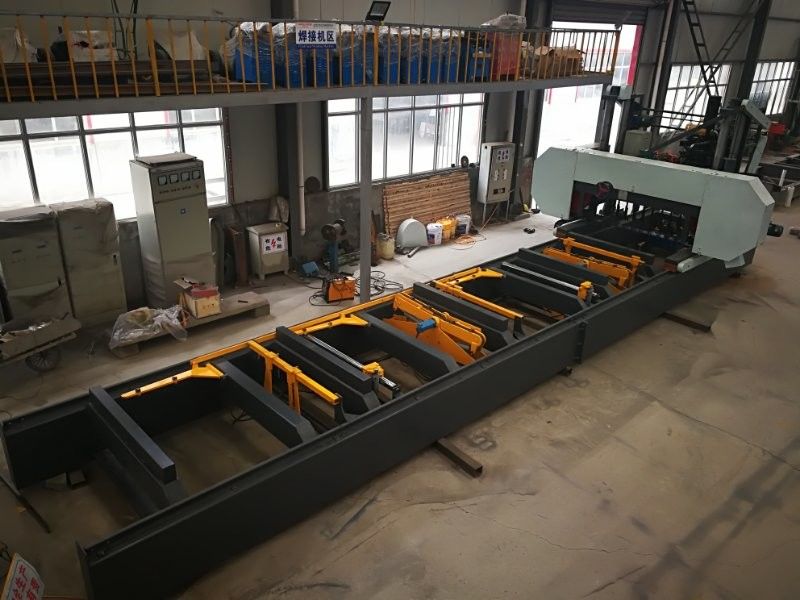

2.MJH1000E Hydraulic Horizontal Band Sawmill
Sawing log max. diameter	1000mm
Sawing log max.length	5meters
Saw wheel diameter	700mm
sawn board thickness range	2-400mm
Main motor power	37kw
Hydraulic chain rotation	2sets
Blade tensioning	Electrical

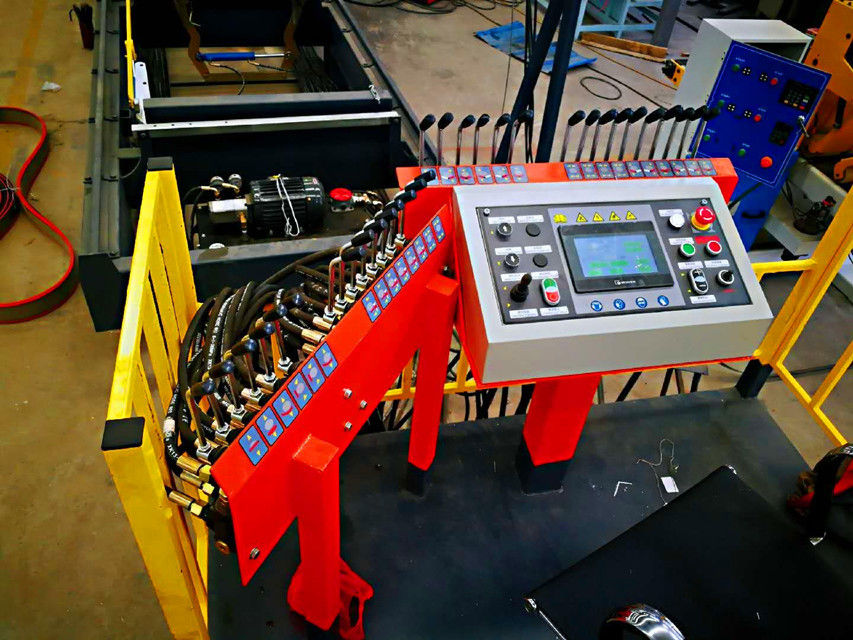

Sawn sizes setting	PLC touching screen
Saw head walking	Frequency auto feeding
Machine length	7500mm

3.Roller Conveyor
Screw roller conveyor length	10meters
Conveyor width	1200mm
Motor power	5.5kw

4. Chain conveyor
Conveyor width	4000mm
Conveyor length	4000mm
Chain quantity	4pcs
Motor power	5.5kw

5.Board Twin Blades Edger Saw
Max. sawing width	900mm
Min. sawing width	50mm
Sawing thickness range	20mm-70mm
Sawing speed	20-25m/min
Main motor power	7.5kw x 2
Feeding conveyor size	L2000mm*W800mm
Outlet conveyor size	L9000mm*W800mm

6. HW800 Infrared Multi Blades Chip Saw
Sawing max. width	800mm
Sawing thickness range	15-50mm
Motor power	18.5kw
Feeding conveyor	L2500mm*W800mm
Outlet conveyor	L9000mm*W800mm

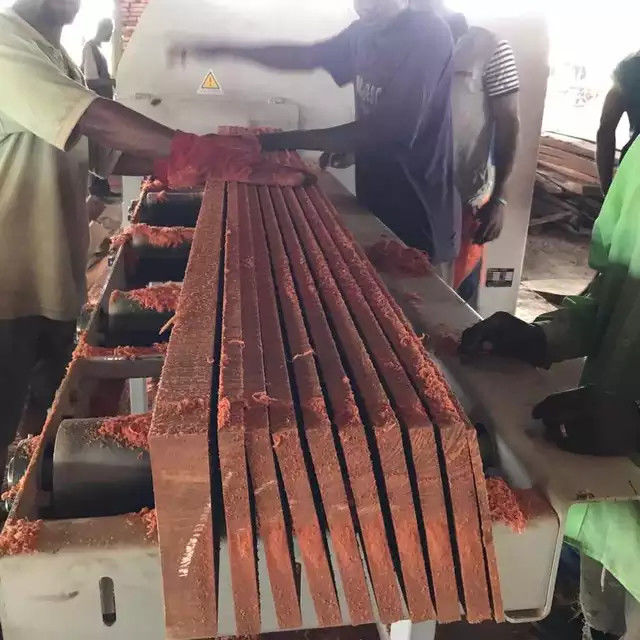

7. SHBC80-300 Multi Blades Rip Saw
Max. sawing wood width			300mm
Max sawing wood thickness			80mm
Min Sawing wood length			600mm
Main motor power			22kw x 2
Feeding Conveyor			L2000mm*W800mm
Outlet conveyor			L8000mm*W800mm
Blade cooling type			Shaft center water spraying
Blade diameter			180mm
Feeding			Frequency auto feeding

8. Chain Conveyor
Conveyor length	4000mm
Conveyor width	4000mm
Chain quantity	4pcs
Motor	5.5kw

9.Roller Conveyor
Screw roller conveyor length	6000mm
Conveyor width	600mm
Motor power	3kw

10.Chain Conveyor Belt
Conveyor width	4000mm
Conveyor length	10meters
Chain quantity	4pcs
Electric motor	5.5kw

Auto Hydraulic Bandsaw Machine Hardwood Log Band Saw 1500mm Dia 8

Auto Hydraulic Bandsaw Machine Hardwood Log Band Saw 1500mm Dia 9

Auto Hydraulic Bandsaw Machine Hardwood Log Band Saw 1500mm Dia 10

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	MJH1200E,MJH1500E

Minimum Order Quantity:	1 SET
Price:	US $41,000 - 101,000 / Set
Packaging Details:	container loading
Delivery Time:	within 25 days
Payment Terms:	T/T or L/C at sight
Supply Ability:	500sets/year
