400HP Diesel Wood Drum Chipper Shredder Pallet Crusher, Shredder Wood Machine Price

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number SH1600-600, SH1400-600, SH1300-600, SH1300-800
Minimum Order Quantity 1SET shredder wood chipper
Price US $18,000-4,9000 / Sets
Packaging Details container loading of wood chipper
Delivery Time within 20 days for shredder wood chipper
Payment Terms Western Union, T/T
Supply Ability 1000 sets/Year of shredder wood chipper

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Shredder Wood Chipper Feeding Inlet Size 1300x600mm
Blade Quantity 2sets Or Hammer Blade 20pcs Wood Chipper Size 2-4 Cm
Capacity 20-25 Tons/hour Main Diesel Engine Power 400HP
Diesel Engine Start Electric Soft Start Feeding Conveyor Length 6meter
Outlet Conveyor Length 10meter Operation Automatic Distant Control
Leave a Message
Product Description

SH1300-600 Series Wood Crusher Machine

  • is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on.
  • It can work together with the baler breaker.
  • This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time.
  • It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance.
  • It is the ideal equipment for biomass power generation enterprises.

Technical Parameter Of Host System Equipment



Model SH1300-600
Feeding Inlet 1300*600MM
Blade Roller Diameter 850MM
Blade Roller Speed 850RPM
Capacity 15-20T/Hour
YG8 Hammer Blade Quantity OR Blades 22 pcs hammers or 2sets blades
Max Processing Wood Diameter 450MM
Electric motor power or diesel engine  160KW or 400HP diesel engine
Wood Chipper Size 20-40MM
Working Life Of THE Hammer Blades 4000T-6000T





































Technical Parameter Of Feeding System



Model SH1300-600
Slot Chain Plate Feeding Conveyor 1 Set
Feeding Motor Power 7.5KW+11KW
Chain Plate Width 1260MM
Conveyor Length 6000MM
Feeding Speed 2-18M/Min
Chain Material 16Mn
Position Limited Wheel 5
Gear Box Hard Teeth Faces































Technical Parameter Of Discharging System

Model SH1300-600
Outlet Conveyor Belt 1Set
First Outlet Motor 4KW With Gear Box
Second Outlet Motor 5.5KW With Gear Box
Conveyor Material 14-16# Channel/ Square Tube
Conveyor Length*Width 10m*1m
Conveyor Material Nylon 4 Layer
Outlet Height 3800-4500MM



























Intelligent Electronic Control System

Model SH1300-600
Large Control Cabinet Ground
Host Start Model Soft Start
Feeding Speed Control Model Variable Frequency
Electrical Control Control Cabinet + Remote Control

High Efficiency Hydraulic System

Model SH1300-600
Control Model Solenoid Valve
Hydraulic Oil Pump 3KW
Hydraulic Oil Tank 120L

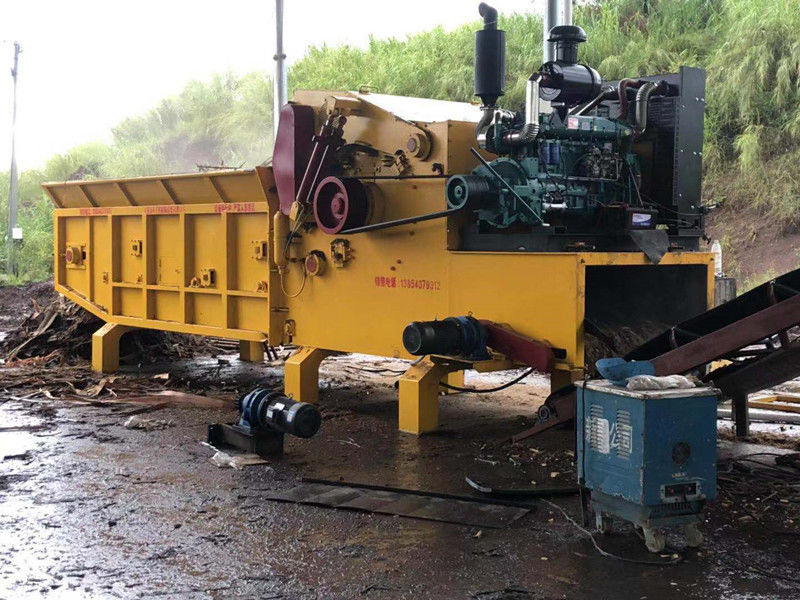

400HP Diesel Wood Drum Chipper Shredder Pallet Crusher, Shredder Wood Machine Price 0

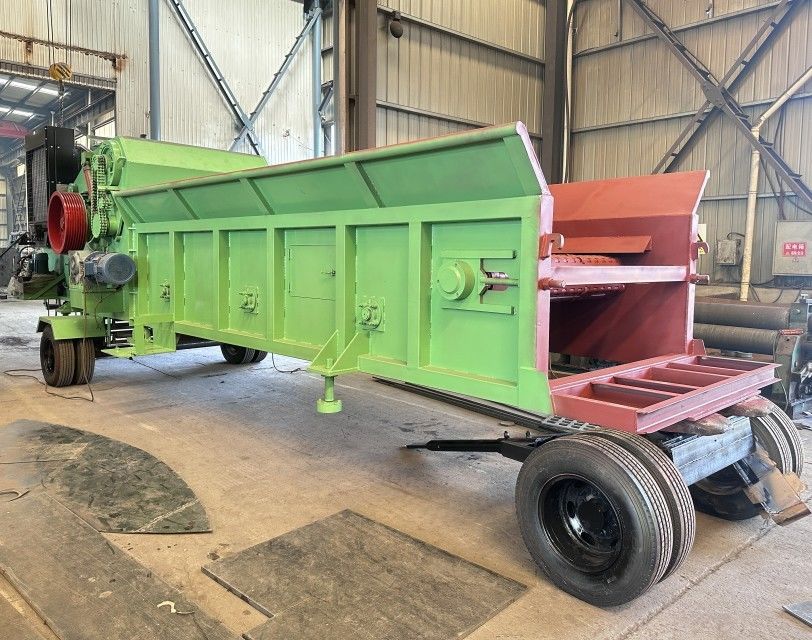

400HP Diesel Wood Drum Chipper Shredder Pallet Crusher, Shredder Wood Machine Price 1

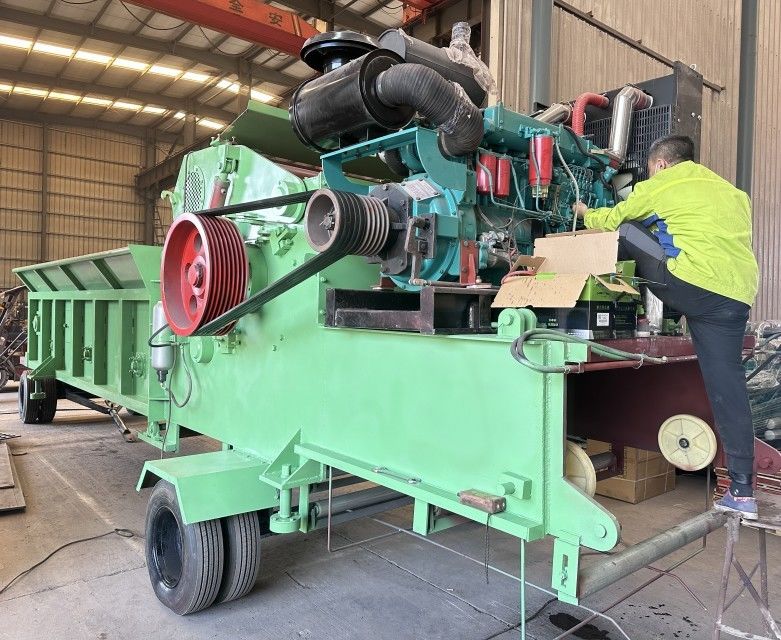

400HP Diesel Wood Drum Chipper Shredder Pallet Crusher, Shredder Wood Machine Price 2

Related Products

Wood Roots Stump Crusher



Specification:

Technical data Model SH3600-1600
Blade shaft size 1600x850mm
Rotor diameter 800mm
Blade quantity 4
Main motor power 185KW
Feeding inlet diameter 3600mm
Out feed conveyor 12meters
Capacity 25-30Ton/Hour
Weight 18000kg

400HP Diesel Wood Drum Chipper Shredder Pallet Crusher, Shredder Wood Machine Price 3

Wood Branches Crusher

Model HS1000
Main power 80HP diesel engine
Feeding wood max. size 200mm
Feeding method Forced feeding, intelligent control
Blade 4pcs blade + 1pc blade
Feeding inlet length 1845mm
Feeding inlet outer diameter 1320x690mm
Feeding inlet inner diameter 470x440mm
Blade shaft diameter 540mm
Hydraulic oil tank 600mm×260mm×430mm
Motor Start Electric start
Walking method Traction type
Production capacity 3-5ton/hour

400HP Diesel Wood Drum Chipper Shredder Pallet Crusher, Shredder Wood Machine Price 4
