Home > Products> Wood Crusher> 10TPH-100TPH Large Size Industrial Wood Crusher Machine Wood Chipper Machine

10TPH-100TPH Large Size Industrial Wood Crusher Machine Wood Chipper Machine

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SH800-500,SH1300-600, SH1400-600, SH1600-600

Minimum Order Quantity:	1 SET Wood Crusher
Price:	US $24,500-31,900 / Set
Packaging Details:	container loading
Delivery Time:	within 15 days
Payment Terms:	T/T, Western Union
Supply Ability:	500 sets/year

Get Best Price Contact Now

Detail Information

Name:	Wood Crusher	Inlet Diameter:	1300x600mm, 1600-600mm, 2000x1400mm, Etc
Power(W):	110kw, 160KW,250kw, 450KW	Raw Material::	Tree , Log, Wood Pallet, Waste Wood, Etc
Capacity:	10-100tons/Hour	Wheels:	Available , Mobile Usage
Feeding Conveyor Length:	6m	Outlet Conveyor Length:	10meters
Wood Chipper Size:	2cm To 5cm	Magnetic System:	Available
Control:	Automatic Operation, Distant Control
Highlight:	100TPH Wood Pulverizer , 10TPH Wood Pulverizer , 10TPH Tree Root Crusher

Product Description

pulverizer Heavy duty wood crusher tree stump grinder tree root crusher wood crusher machine

Heavy Duty Wood Chipper/Crusher Machine

Processing raw materials:

Wood Branches,Logs,wasted wood Pallets with nails,used building plywood with stones

Wood Stumps/ Roots,Rail Sleepers,Straw,cotton stalk.

2. Magnetic machine is workable for sucking out nails, iron products.

3. Tehnical data:

Model	SH 800-500	SH 1300-600	SH 1600-600
Feeding Inlet	800*500mm	1300*600mm	1600*600mm
Blade Roller Diameter	850mm	850mm	850mm
Blade Roller Speed	850RPM
Capacity	10-15tons/hour	15-20tons/hour	25-30tons/hour
YG8 Hammer Blade Quantity	16pcs	20pcs	28pcs
Knife Blade Quantity	2groups/4pcs
Max. Processing Wood Diameter	300mm	450mm	450mm
Motor Power	110kw	160kw	250kw
Wood Chipper Size	20-40cm(Custmized)
Working Life of the Hammer Blades	4000T-5000T

Heavy Duty Large Wood Crusher

Model	SH2000-1000
Feeding inlet size	2000*1000MM
Blade roll diameter	1400MM
Blade roll rotation speed	750RPM
Production capacity	70-100Ton/Hour
Blade quantity	3sets/9pcs(H12 materials)
Processing max. Log diameter	＜800MM
Power	450KW
Chipper size	30-50MM
Blade life	About 5000T
Steel plate thickness of host machine	30mm

4. Photos:

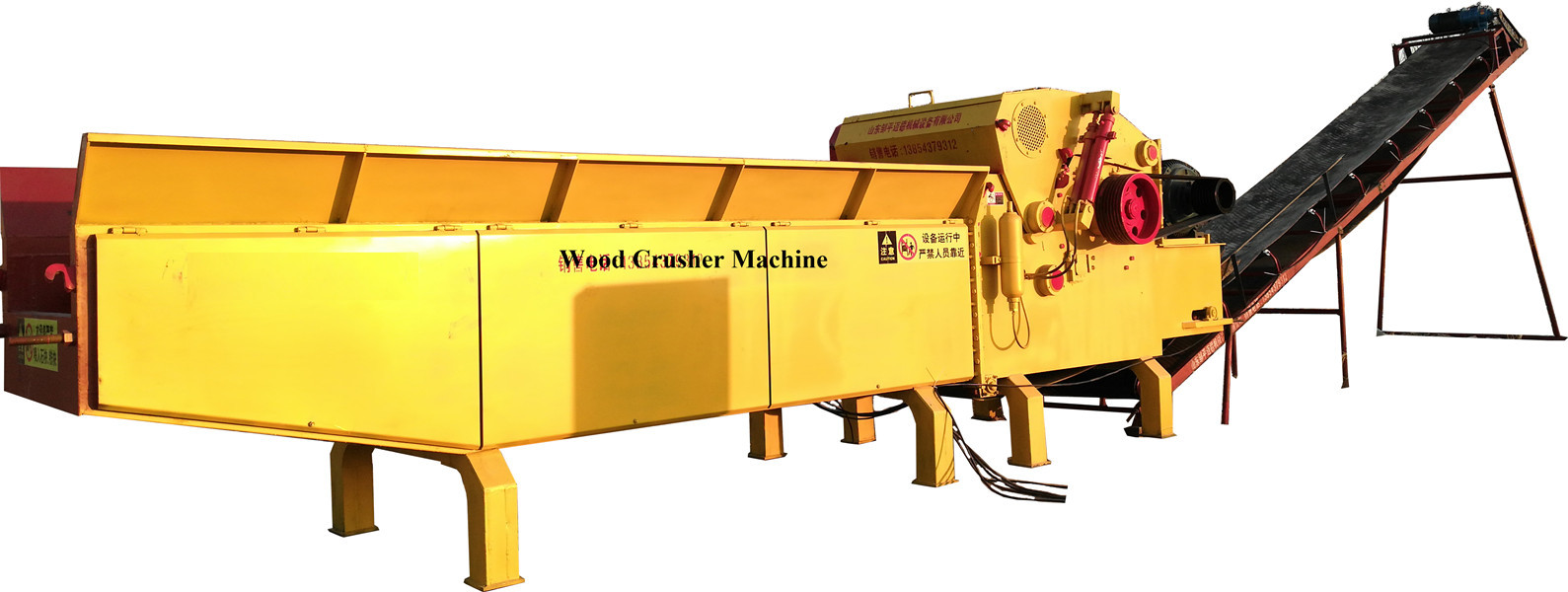

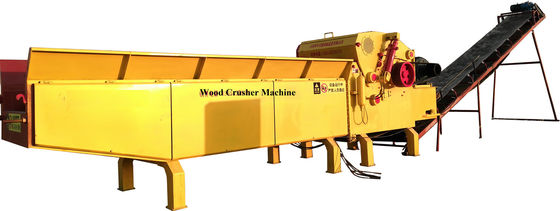

Electrical type

10TPH-100TPH Large Size Industrial Wood Crusher Machine Wood Chipper Machine 0

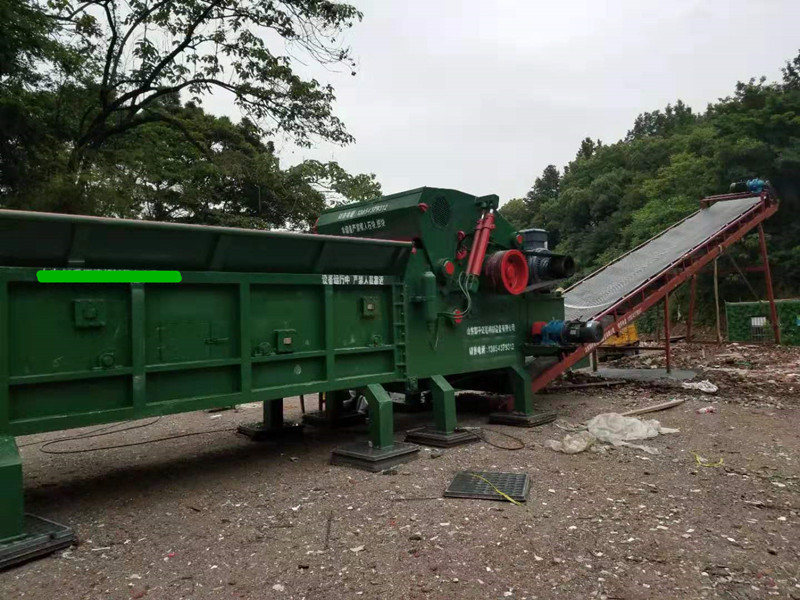

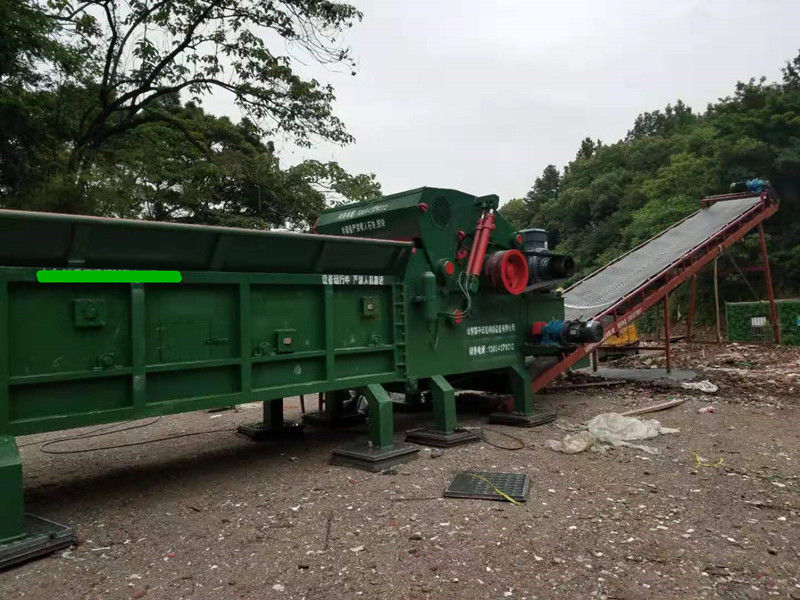

Diesel engine + generator type

10TPH-100TPH Large Size Industrial Wood Crusher Machine Wood Chipper Machine 1

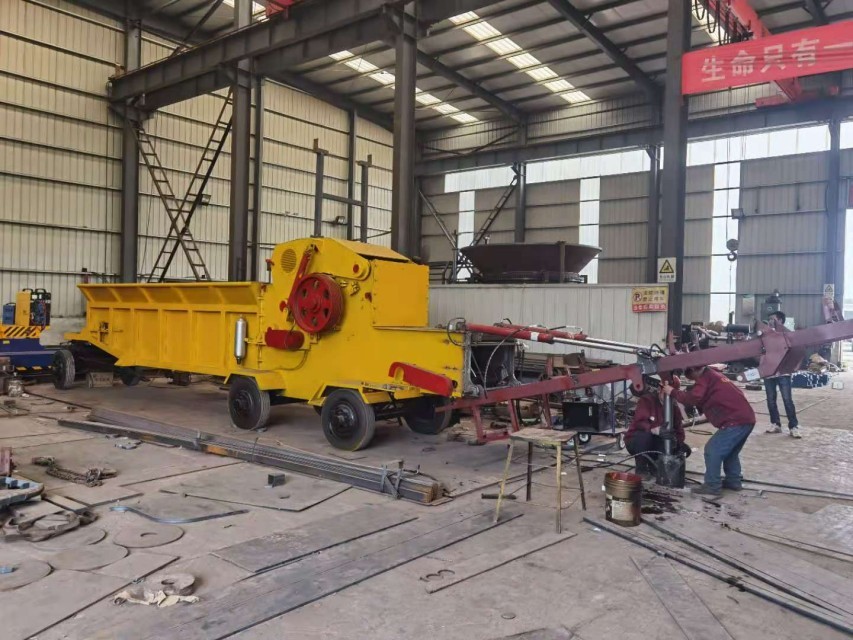

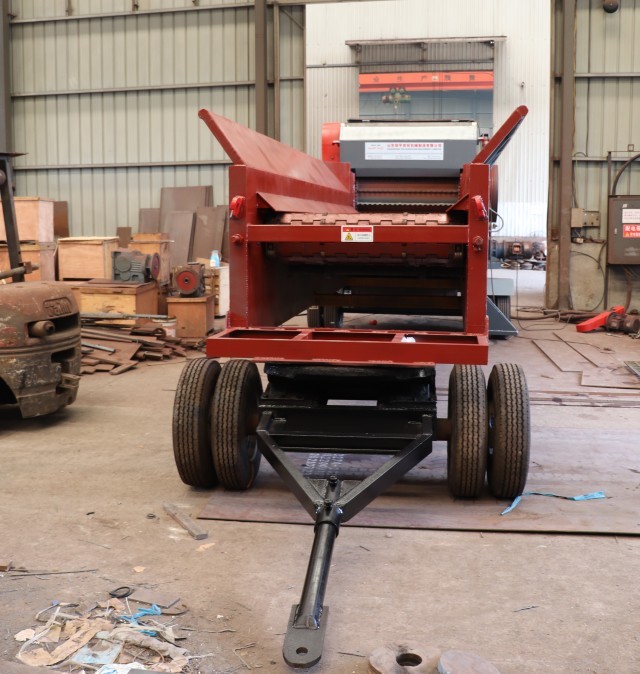

With wheels for mobile usage

10TPH-100TPH Large Size Industrial Wood Crusher Machine Wood Chipper Machine 2

Hydraulic Foldable outlet conveyor

10TPH-100TPH Large Size Industrial Wood Crusher Machine Wood Chipper Machine 3

Control Cabinet

10TPH-100TPH Large Size Industrial Wood Crusher Machine Wood Chipper Machine 4

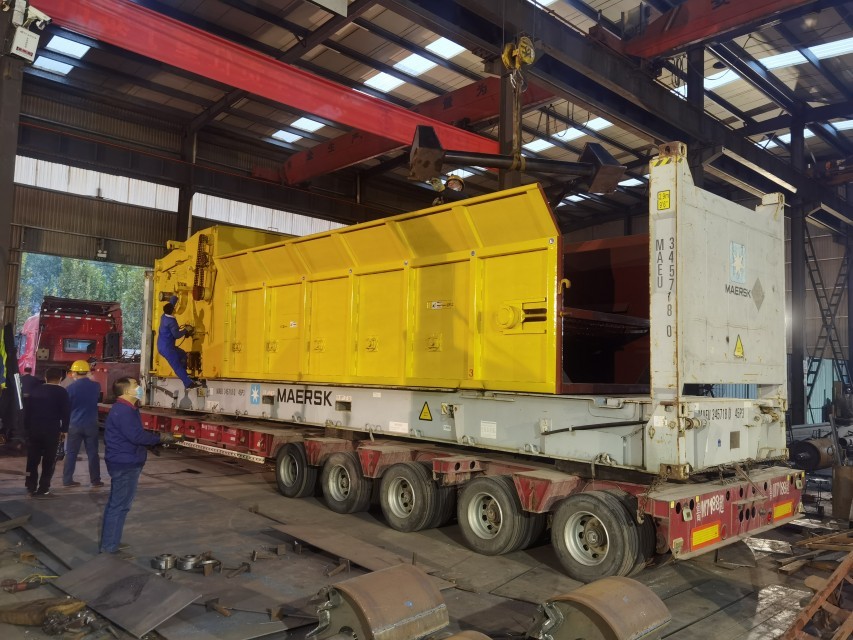

Container Loading -

10TPH-100TPH Large Size Industrial Wood Crusher Machine Wood Chipper Machine 5

Related Products:

Wood Roots Crusher/Grinder

Specification:

Technical data	Model SH3600-1600
Blade shaft size	1600x850mm
Rotor diameter	800mm
Blade quantity	4
Main motor power	185KW
Feeding inlet diameter	3600mm
Out feed conveyor	12meters
Capacity	25-30Ton/Hour
Weight	18000kg

10TPH-100TPH Large Size Industrial Wood Crusher Machine Wood Chipper Machine 7

Diesel Engine type

10TPH-100TPH Large Size Industrial Wood Crusher Machine Wood Chipper Machine 8

Wood Sawdust Machine

Automatic operation system.
Optional-Sacron Cyclone Dust Collector.
With Bag dust collection system.
With Magnetic system

10TPH-100TPH Large Size Industrial Wood Crusher Machine Wood Chipper Machine 9

Technical Data:

Model	SHMF1300-700	SHMF1500-800
Feeding inlet size	1300X700mm	1500X800mm
Blade shaft diameter	700mm	800mm
Blade quantity	84pcs	84pcs
Main motor power	132kw	160kw
Production capacity	4-5ton/hour	6-8ton/hour
Feeding system	1set,5.5KW,With strong magnetic machine
Discharging system	1set
Bag dust collection	1 unit(40bags, with Supports and pipes)
Sacron Cyclone Dust Collector	1unit(1200MM dia., with Supports and pipes)
With Soft start inverter integrated control cabinet
