Detail Information

Name:	Wood Chipper	Type:	Drum Chipper
Feeding Inlet Size:	300 X 600mm	Blade Quantity:	2 Or 3 Pcs
Infeed Conveyor:	6meters	Outfeed Conveyor:	10meters
Capacity:	5-10tons /hour	Mill Granularity:	30-50mm
Control:	Control Cabinet Automatic Operation	Power:	55KW/3PH Or Subject To Chipper Model
Highlight:	SH216 Wood Chipping Machine , Drum Wood Chipper Machine , Automatic Wood Chipper Machine

Product Description

Drum clipper is a kind of specialized equipment to manufacture wood chip, which can be used for the manufacture of flake board, fiber board and paper. The small-sized drum clipper is the best equipment for labs of factories. Raw materials for drum clipper are thin timber, branches, remainder of wood processing (slab, batten, heart of log) and sugar cane stalk, reed, bamboo.

Model	SH216	SH218	SH2112
Blade Roll Diameter(mm)	650	800	1000
Blade Roll Length(mm)	600	800	780
Blade Quantity(Pcs)	2	2	3
Feeding Inlet(mm)	300*600	380*700	550*800
Blade Roll Speed (R/Min)	650	650	500
Feeding Speed(M/Min)	33	35	38
Max Processing Wood Diameter(mm)	240	330	500
Wood Chip Length(mm)	20-30	20-30	20-50
Production Capacity(T/H)	7-10	25-30	30-40
Main Motor Power(kw)	55	110	160
Feeding Roll Motor Power(kw)	31 , 41	5.5*2	7.51,5.51
Weight(t)	4.5	7	12
Overall Dimension(mm)	260021001430	267021501500	440037002050
Feeding Motor Power	2.2KW	3KW	3KW
Oil Pump Motor Power(kw)	1.5	1.5	1.5
Feeding Conveyor Length	6 Meters	6 Meters	8 Meters
Outlet Conveyor Length	10 Meters	10 Meters	12 Meters

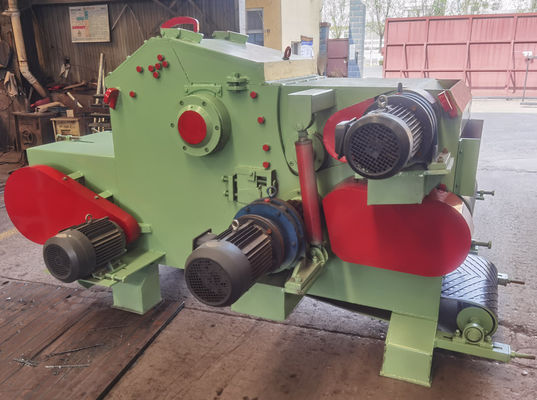

SH216/218 Drum Wood Chipper Machine Industrial Automatic Wood Chipping Machine 0

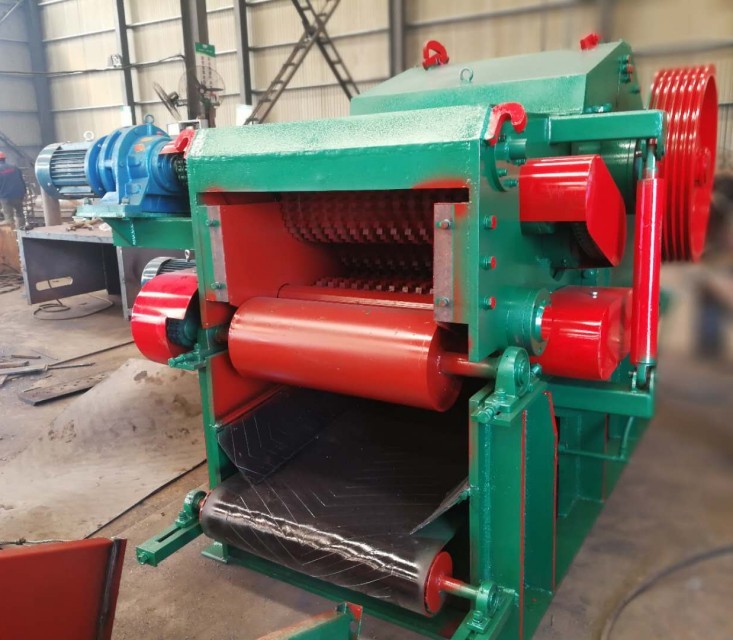

SH216/218 Drum Wood Chipper Machine Industrial Automatic Wood Chipping Machine 1

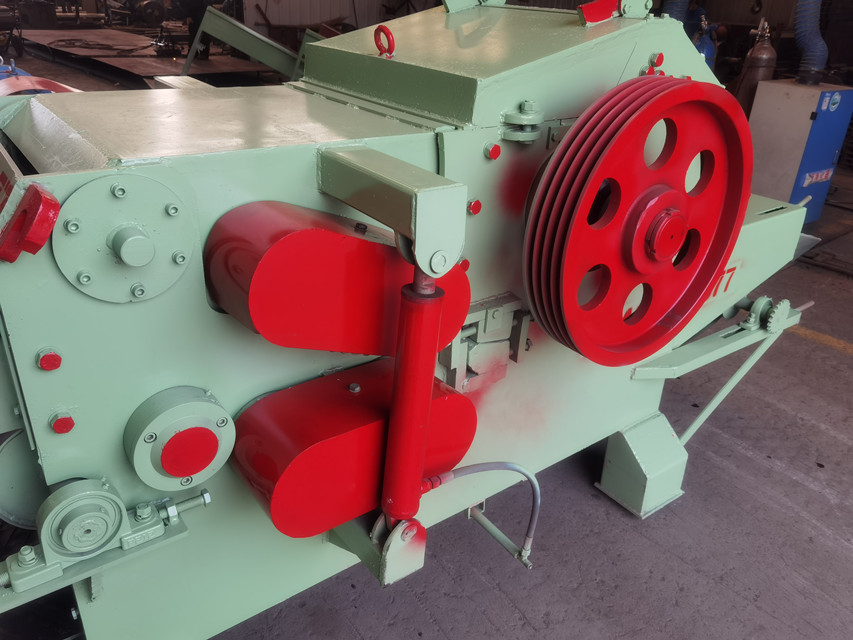

SH216/218 Drum Wood Chipper Machine Industrial Automatic Wood Chipping Machine 2

Related Products

Disc Wood Chipper

Technical data

Wood Chipper Machine
Model	SHJP1600	SHJP1800
Feeding inlet size	450*450mm	500*500mm
Knife No.	6pcs	6pcs
Main motor power	185kw	220kw
Horizontal feed conveyor	8000mm	8000mm
Slope outfeed conveyor	10000mm	10000mm
Wood chipper size	20-35mm	20-35mm
Discharging type	down	down
Production capacity	20t/h	30t/h

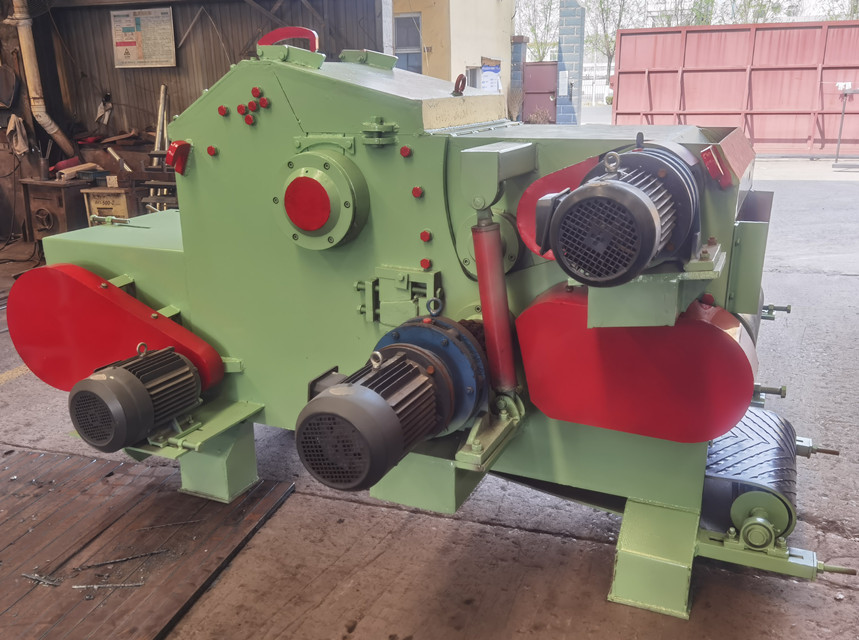

SH216/218 Drum Wood Chipper Machine Industrial Automatic Wood Chipping Machine 3

Heavy Duty Wood Chipper/Crusher Machine

Processing raw materials:

Wood Branches,Logs,wasted wood Pallets with nails,used building plywood with stones

Wood Stumps/ Roots,Rail Sleepers,Straw,cotton stalk.

2. Magnetic machine is workable for sucking out nails, iron products.

3. Tehnical data:

Model	SH 800-500	SH 1300-600	SH 1600-600
Feeding Inlet	800*500mm	1300*600mm	1600*600mm
Blade Roller Diameter	850mm	850mm	850mm
Blade Roller Speed	850RPM
Capacity	10-15tons/hour	15-20tons/hour	25-30tons/hour
YG8 Hammer Blade Quantity	16pcs	20pcs	28pcs
Knife Blade Quantity	2groups/4pcs
Max. Processing Wood Diameter	300mm	450mm	450mm
Motor Power	110kw	160kw	250kw
Wood Chipper Size	20-40cm(Custmized)
Working Life of the Hammer Blades	4000T-5000T

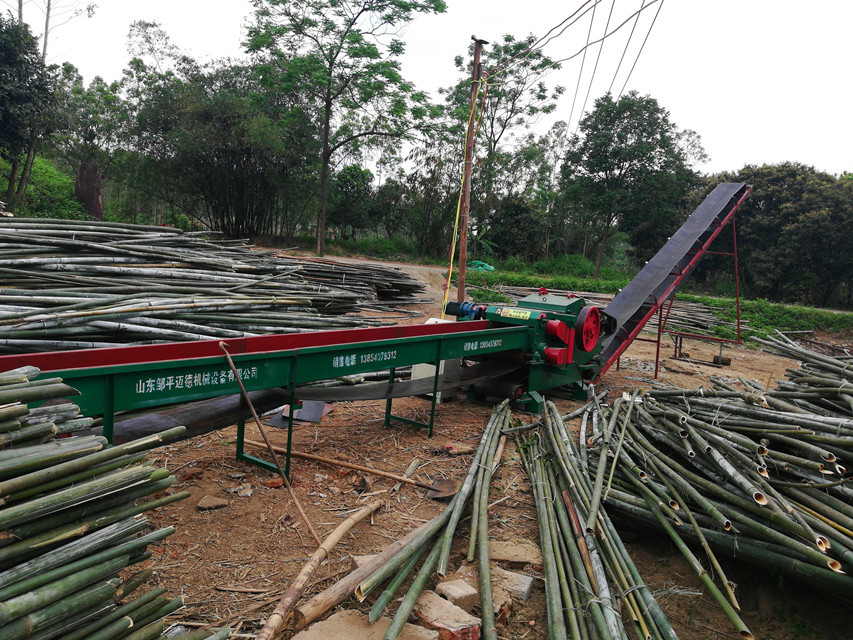

SH216/218 Drum Wood Chipper Machine Industrial Automatic Wood Chipping Machine 6

Heavy Duty Wood Chipper/Crusher Machine -optional parts

Wheels for mobile usage

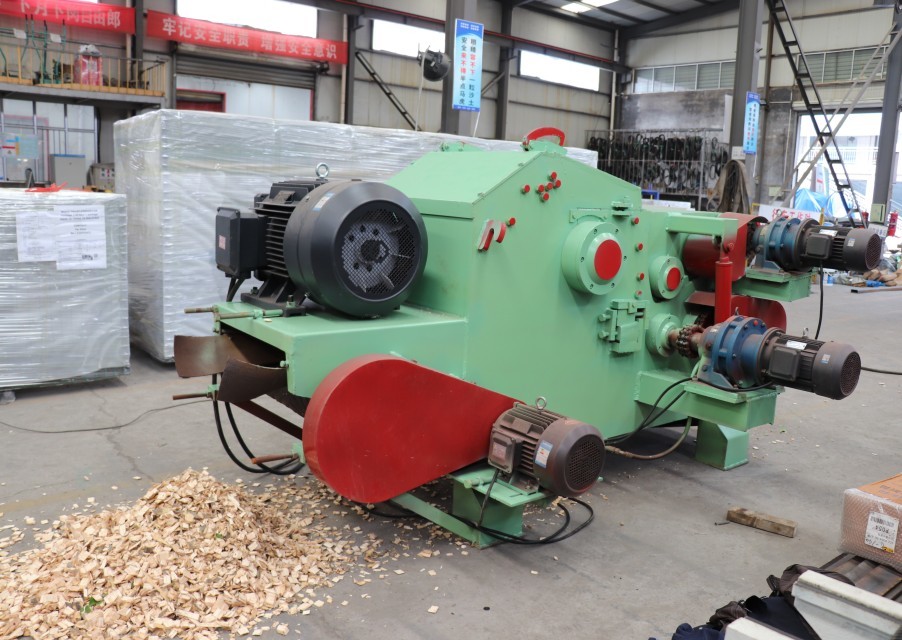

SH216/218 Drum Wood Chipper Machine Industrial Automatic Wood Chipping Machine 9

Wheels for mobile usage and foldable discharging conveyor

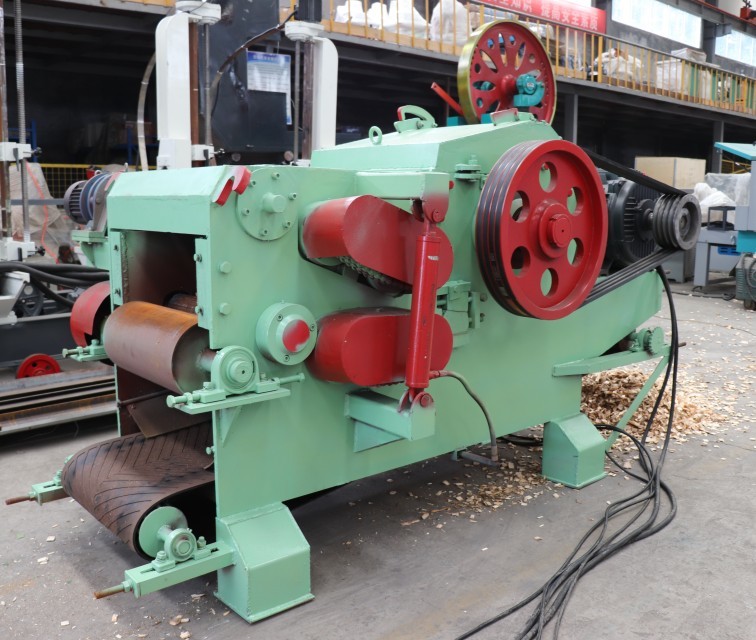

SH216/218 Drum Wood Chipper Machine Industrial Automatic Wood Chipping Machine 10

Finished Wood Chippers

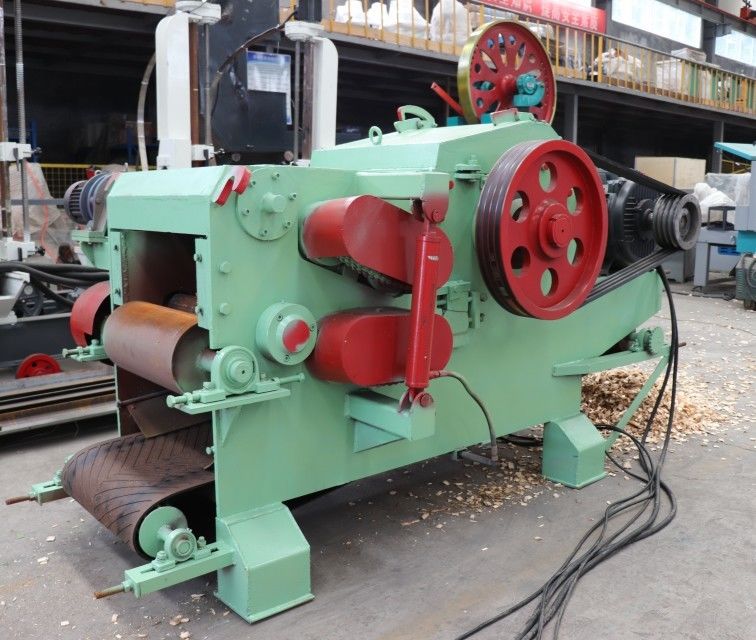

SH216/218 Drum Wood Chipper Machine Industrial Automatic Wood Chipping Machine 11

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SH216,SH218,SH2112,SH2113

Minimum Order Quantity:	1 SET
Price:	USD3,000-35,000/SET
Packaging Details:	container loading
Delivery Time:	within 10 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	100 sets/quarter
