Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher

  • Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher
  • Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher
  • Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher
  • Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher
  • Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher
  • Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher
  • Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher
Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number SH2000-1400,SH1300-600, SH1400-600, SH1600-600
Minimum Order Quantity 1 SET Wood Crusher
Price US $24,500-31,900 / Set
Packaging Details container loading
Delivery Time within 15 days
Payment Terms T/T, Western Union
Supply Ability 500 sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Wood Chipper Feeding Inlet Size 2000x1400mm, Etc
Power(W) 110kw, 160KW,250kw, 450KW Raw Material Tree , Log, Wood Pallet, Waste Wood, Etc
Capacity 10-100tons/Hour Processing Max. Log Diameter ＜800MM
Wheels Available , Mobile Usage Feeding Conveyor Length 6m
Outlet Conveyor Length 10meters Wood Chipper Size 2cm To 5cm
Magnetic System Available Control Automatic Operation, Distant Control
High Light

Wood Log Branches Crusher

,

Horizontal Wood Chipper Shredder

,

Mobile Wood Chipper Shredder
Leave a Message
Product Description

Wood Grinder Machine Chip Crusher, branch crusher machine wood chipper,wood crusher for sawdust making machine

Heavy Duty Wood Chipper/Crusher Machine

SH Series crusher is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.

  1. Processing raw materials:

Wood Branches,Logs,wasted wood Pallets with nails,used building plywood with stones

Wood Stumps/ Roots,Rail Sleepers,Straw,cotton stalk.
       2. Magnetic machine is workable for sucking out nails, iron products.


​       3. Tehnical data:

Model SH 800-500 SH 1300-600 SH 1600-600
Feeding Inlet 800*500mm 1300*600mm 1600*600mm
Blade Roller Diameter 850mm 850mm 850mm
Blade Roller Speed 850RPM
Capacity 10-15tons/hour 15-20tons/hour 25-30tons/hour
YG8 Hammer Blade Quantity 16pcs 20pcs 28pcs
Knife Blade Quantity 2groups/4pcs
Max. Processing Wood Diameter 300mm 450mm 450mm
Motor Power 110kw 160kw 250kw
Wood Chipper Size 20-40cm(Custmized)
Working Life of the Hammer Blades 4000T-5000T


Heavy Duty Large Wood Crusher



Model SH2000-1000
Feeding inlet size 2000*1000MM
Blade roll diameter 1400MM
Blade roll rotation speed 750RPM
Production capacity 70-100Ton/Hour
Blade quantity 3sets/9pcs(H12 materials)
Processing max. Log diameter ＜800MM
Power 450KW
Chipper size 30-50MM
Blade life About 5000T
Steel plate thickness of host machine 30mm


4. Photos:

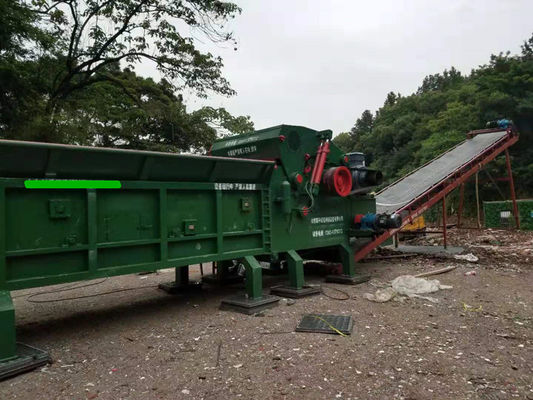

Electrical type
Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher 0
Diesel engine + generator type
Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher 1

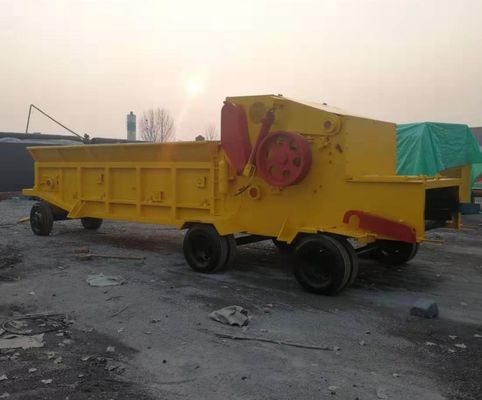

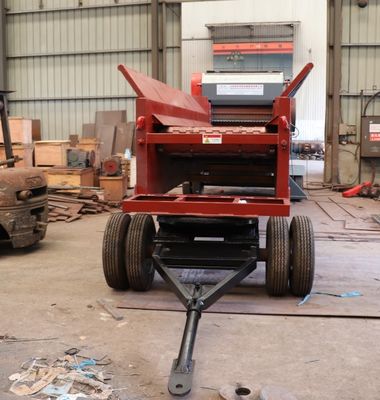

With wheels for mobile usage
Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher 2
Hydraulic Collapsible outlet conveyor
Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher 3
Control Cabinet
Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher 4
Container Loading -
Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher 5Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher 6
Related Products:
Wood Roots Crusher/Grinder
Specification:

Technical data Model SH3600-1600
Blade shaft size 1600x850mm
Rotor diameter 800mm
Blade quantity 4
Main motor power 185KW
Feeding inlet diameter 3600mm
Out feed conveyor 12meters
Capacity 25-30Ton/Hour
Weight 18000kg

Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher 7
Disc Chipper

Wood Chipper Machine
Specification SHJP1600 SHJP1800
Feeding inlet size 450*450mm 500*500mm
Knife No. 6pcs 6pcs
Main motor power 185kw 220kw
Horizontal feed conveyor 8000mm 8000mm
Slope outfeed conveyor 10000mm 10000mm
Wood chipper size 20-35mm 20-35mm
Discharging type down down
Production capacity 20t/h 30t/h

Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher 8Customizable Mobile Horizontal Wood Chipper Shredder Dry And Wet Wood Log Branches Crusher 9
