Compact Wood Pallet Grinding Machine Pallet Chipper With Magnet For Household Industry

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SHTF1350, SH1300-600, SH1600-600

Minimum Order Quantity:	1 SET wood pallet grinder
Price:	US $8,000-11,000 / Set
Packaging Details:	container loading
Delivery Time:	within 15 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000sets per year

Get Best Price Contact Now

Detail Information

Name:	Wooden Pallet Grinder	Nails:	With Magnetic Machine For Sucking Out Nails
Application:	Crushing Wood Pallets Into Chippers	Capacity:	60pcs Pallets/hour
Power:	37KW	Feeding Inlet Size:	1350*230mm
Blade Shaft Diameter:	450mm	Blade Quantity:	36pcs
Discharging Conveyor Length:	3meters	Guarantee:	1year
Highlight:	Compact wood pallet chipper , Household Industry wood pallet chipper , Compact pallet chipper with magnet

Product Description

Wood Pallet Crusher/Wood Pallet Shredder/industrial shredder for wood pallet

Wood Pallet Crusher

Technical data

Model	SHTF1350
Feeding Inlet	1350*230mm
Blade Shaft Diameter	450mm
Blade Quantity	36
Motor Power	37KW
Conveyor belt length	3000mm
Production Capacity	60 Pallets/Hour
Weight	3200KG
Optional part: Magnetic machine for sucking nails ,etc iron products Extended outlet conveyor

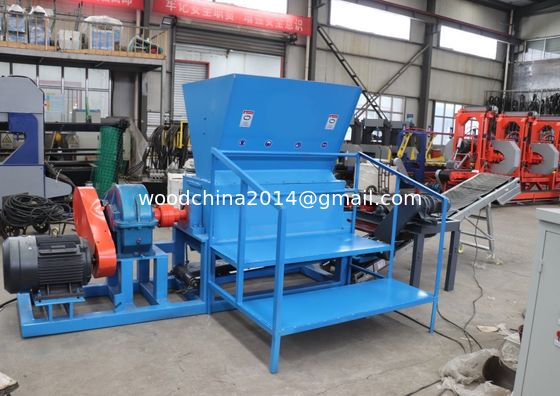

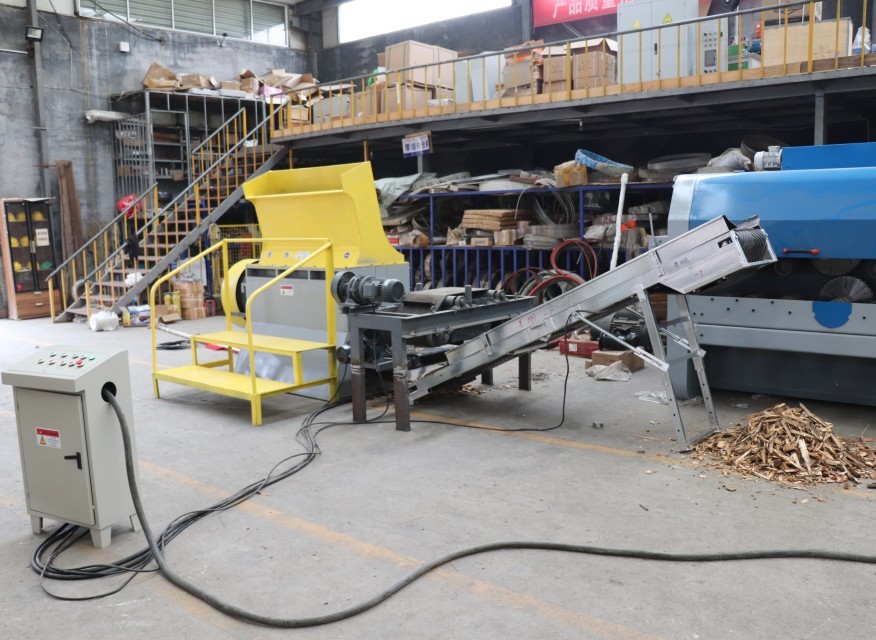

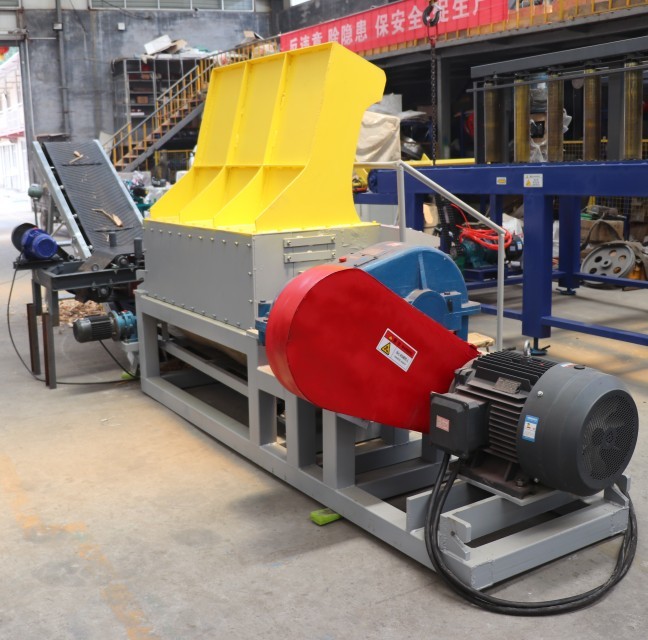

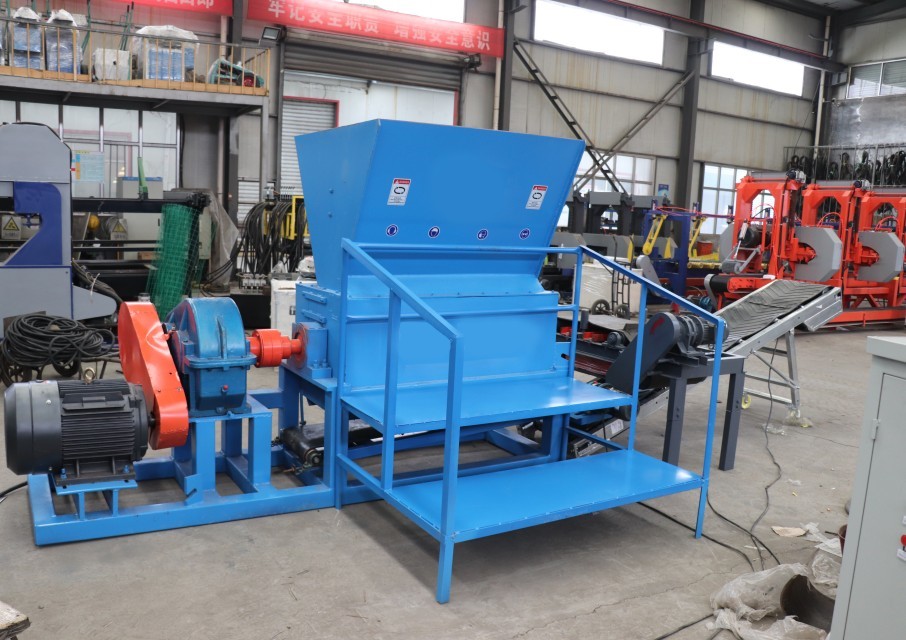

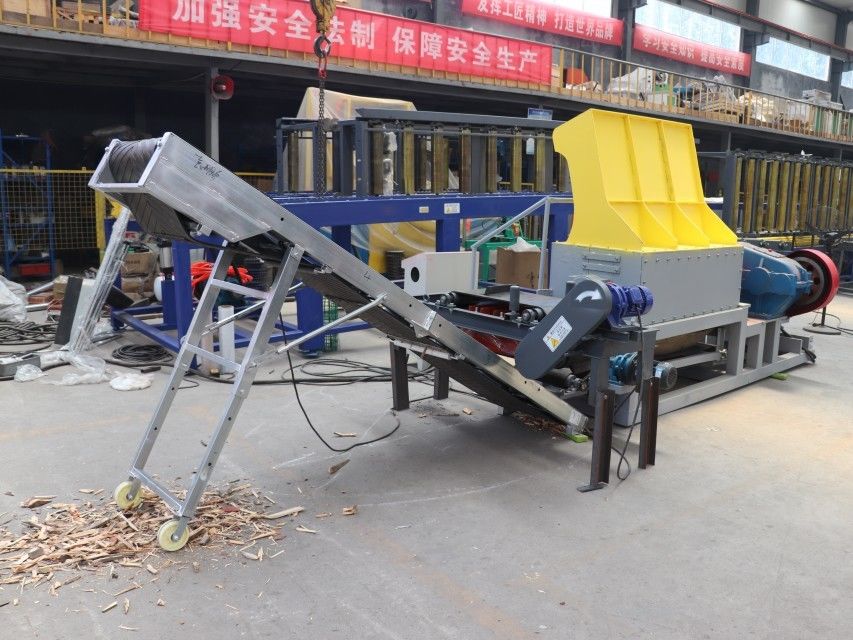

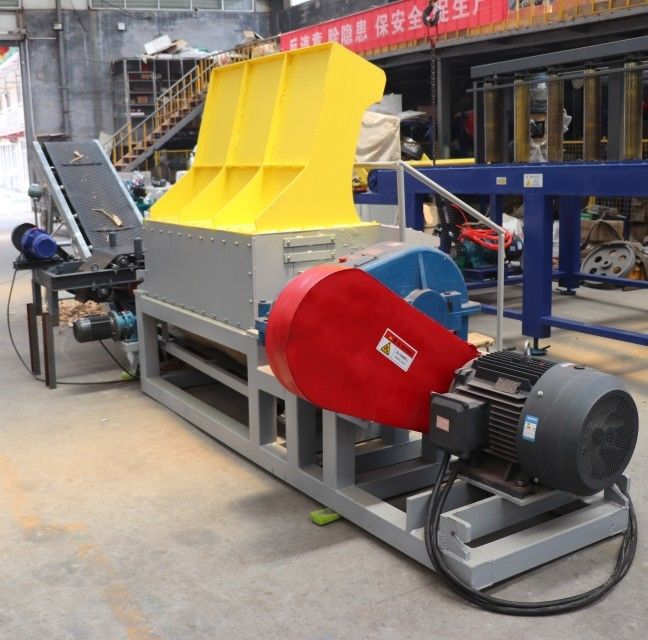

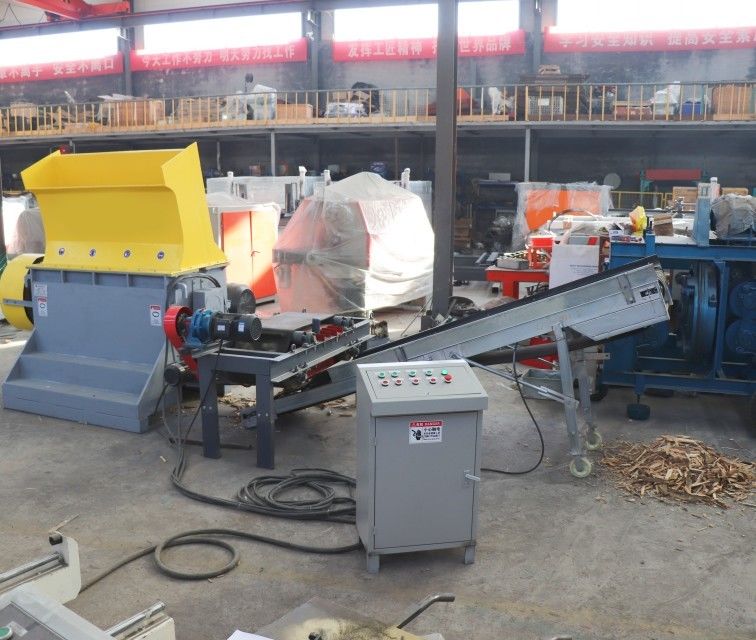

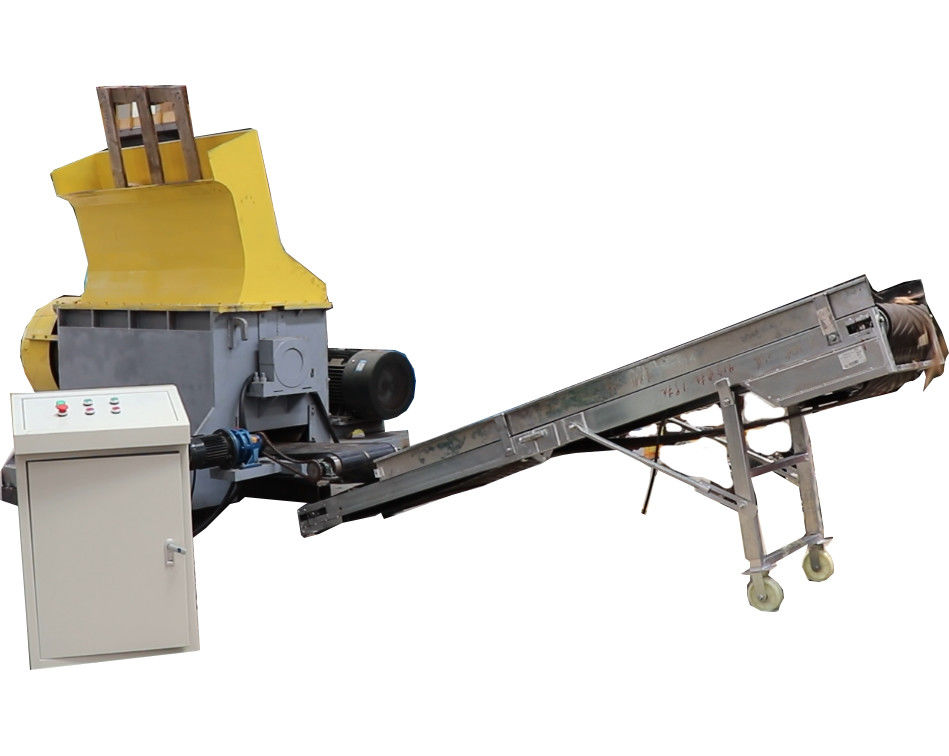

Detailed Image

Optional -magnetic machine

Roller and blades

Wood Chippers

Export Pallet Packing

Compact Wood Pallet Grinding Machine Pallet Chipper With Magnet For Household Industry

Related Products

Wood Composite Crusher

Specification	SH1300-600E	SH1300-600D
Feeding Inlet	1300*600mm	1300*600mm
Blade Roll Diameter	850mm	850mm
Blade Quantity	4 PCS	20 PCS
Blade Roll Speed	850R/Min	850R/Min
Max processing wood diameter	500mm	550mm
Wood Chipper Size	20-50mm	20-50mm
Production Capacity	15 Tons/Hour	15 Tons/Hour
Motor Power	160 KW Electric Engine	400HP Diesel Engine
Feeding Suspension Inverter Motor	7.5KW*1	7.5KW*1
Chain Plate Feeding Inverter Motor	11KW	11KW
Electromagnetic valve integrated Oil Pump Motor	3KW	3KW
Conveyor Gear Motor Power	4KW	4KW
Weight	20Tons	20Tons
Overall Size	850022002200mm	850022002200mm

Compact Wood Pallet Grinding Machine Pallet Chipper With Magnet For Household Industry

STUMP CRUSHER

Specification:

Technical data	Model SH3600-1600
Blade shaft size	1600x850mm
Rotor diameter	800mm
Blade quantity	4
Main motor power	185KW
Feeding inlet diameter	3600mm
Out feed conveyor	12meters
Capacity	25-30Ton/Hour
Weight	18000kg
