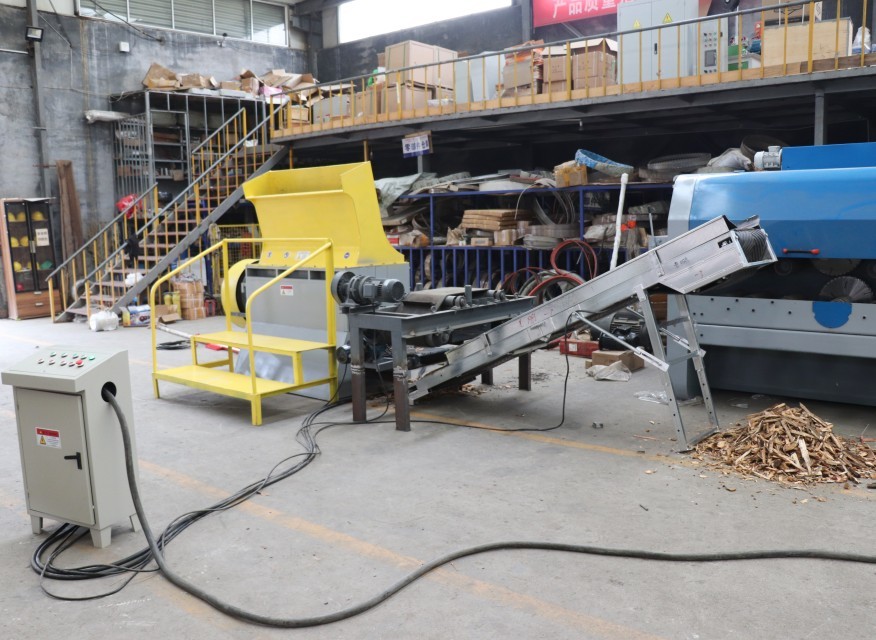

Wood Pallet Crusher 37KW Wooden Pallet Crushing Machine With Nails Out

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SHTF1350, SH1300-600, SH1600-600

Minimum Order Quantity:	1 SET
Price:	US $8,000-11,000 / Set
Packaging Details:	container loading
Delivery Time:	within 15 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000sets per year

Get Best Price Contact Now

Detail Information

Name:	Wooden Pallet Crusher Machine	Condition:	New
Application:	Crushing Wood Pallets Into Chippers	Capacity:	60pcs Pallets/hour
Power:	37KW	Feeding Inlet Size:	1350*230mm
Blade Shaft Diameter:	450mm	Blade Quantity:	36pcs
Discharging Conveyor Length:	3meters	Guarantee:	1year
Highlight:	Wood Pallet Crusher 37KW , 37KW Pallet Crushing Machine , Wooden Pallet Crushing Machine

Product Description

Wood pallet shredder wood pallet crusher, Wooden pallet crushing machine with nails out

Wood Pallet Crusher

Technical data

Model	SHTF1350
Feeding Inlet	1350*230mm
Blade Shaft Diameter	450mm
Blade Quantity	36
Motor Power	37KW
Conveyor belt length	3000mm
Production Capacity	60 Pallets/Hour
Weight	3200KG
Optional part: Magnetic machine for sucking nails ,etc iron products Extended outlet conveyor

Detailed Image

Optional -magnetic machine

Roller and blades

Wood Chippers

Related Products

Wood Composite Crusher

Tehnical data:

Model		SH2000-1000	SH1300-600	SH1400-600	SH1600-600
Feeding inlet size		2000x1000mm	1250x600mm	1400x600mm	1600x600mm
Blade roller diameter		1400mm	850mm	850mm	850mm
Blade roller speed		750RPM	850RPM	850RPM	850RPM
Production capacity		70-100ton/H	12-15ton/H	18-20ton/H	25-30ton/H
1	YG8 hammer blade qty	86pcs	20pcs	24pcs	28pcs
2	Blade qty	3groups/9tablets	2groups/4tablets	2groups/4tablets	2groups/4tablets
Max. Processing log diameter		<800mm	450mm	450mm	450mm
Main motor power		450kw	160kw	200kw	250kw
Wood chipper size		3-5cm	2-4cm	2-4cm	2-4cm
Working life of blades		4000T-5000T	4000T-6000T	4000T-6000T	4000T-6000T
Optional : Diesel engine power 400HP is workable Wheels for mobile usage Hydraulic collapsible outlet conveyor Magnetic machine for sucking out iron products

Photos:

Wood Pallet Crusher 37KW Wooden Pallet Crushing Machine With Nails Out 6

Wood Sawdust Machine

Technical Data:

Model	SHMF1300-700	SHMF1500-800
Feeding inlet size	1300X700mm	1500X800mm
Blade shaft diameter	700mm	800mm
Blade quantity	84pcs	84pcs
Main motor power	132kw	160kw
Production capacity	4-5ton/hour	6-8ton/hour
Feeding system	1set,5.5KW,With strong magnetic machine
Discharging system	1set
Bag dust collection	1 unit(40bags, with Supports and pipes)
Sacron Cyclone Dust Collector	1unit(1200MM dia., with Supports and pipes)
With Soft start inverter integrated control cabinet

Wood Pallet Crusher 37KW Wooden Pallet Crushing Machine With Nails Out 7

Wood Pallet Dismanling Sawmill

Specifications :

Model	TP1400
Working Table Width	1700mm
Horizontal table width	600mm
Cutting Thickness	5mm-150mm
Saw Wheel Diameter	600mm
Motor Power	7.5KW
Processing Pallet Efficiecy	40-60 pcs/min
Band Saw Blade Size	USA Blade 6900411.3 mm
Overall Size	330015001500mm
Weight	800KG
