SH800-500 Mobile Diesel Engine Wood Chipper, Energy-saving Wood Chip Crusher

Place of Origin shandong province, China
Brand Name SH
Certification ISO9001
Model Number SH800-500, SH1300-600, SH1400-600, SH1600-600
Minimum Order Quantity 1 SET
Price US $18,000-4,9000 / Sets
Packaging Details container loading
Delivery Time within 20 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 500 sets/Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Wood Chipping Crusher Machine Condition New
Usage Chipping All Woods Into Small Chippers Inlet Diameter 800-500mm
Chipper Size 20-40mm Operation Control Cabinet Automatic
Power(W) 110KW/3PH Warranty 12 Months
Raw Material Tree , Log, Wood Pallet, Waste Wood, Etc Capacity 8-10 Ton/Hour
Type Wood Chipper,Multifunctional Efficient Hammer Mill After-sales Service Video Technical Support, Working Test Before Delivery
Leave a Message
Product Description

SH800-500 Series Wood Crusher Machine is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.

Technical Parameter Of Host System Equipment


Model SH800-500 Electric Type
Feeding Inlet 800*500MM
Blade Roller Diameter 850MM
Blade Roller Speed 850RPM
Capacity 8-10T/Hour
YG8 Hammer Blade Quantity OR Blades 16 pcs hammers or 2sets blades
Max Processing Wood Diameter 300MM
Electric motor Power 110KW
Wood Chipper Size 20-40MM
Working Life Of THE Hammer Blades 4000T-6000T



















Technical Parameter Of Feeding System


Model SH800-500
Slot Chain Plate Feeding Conveyor 1 Set
Feeding Motor Power 7.5KW+11KW
Chain Plate Width 800MM
Conveyor Length 5000MM
Feeding Speed 2-18M/Min
Chain Material 16Mn
Position Limited Wheel 5
Gear Box Hard Teeth Faces















Technical Parameter Of Discharging System

Model SH800-500
Outlet Conveyor Belt 1Set
First Outlet Motor 4KW With Gear Box
Second Outlet Motor 5.5KW With Gear Box
Conveyor Material 14-16# Channel/ Square Tube
Conveyor Length*Width 10m*1m
Conveyor Material Nylon 4 Layer
Outlet Height 3800-4500MM














Intelligent Electronic Control System

Model SH800-500
Large Control Cabinet Ground
Host Start Model Soft Start
Feeding Speed Control Model Variable Frequency
Electrical Control Control Cabinet + Remote Control

High Efficiency Hydraulic System

Model SH800-500
Control Model Solenoid Valve
Hydraulic Oil Pump 3KW
Hydraulic Oil Tank 120L

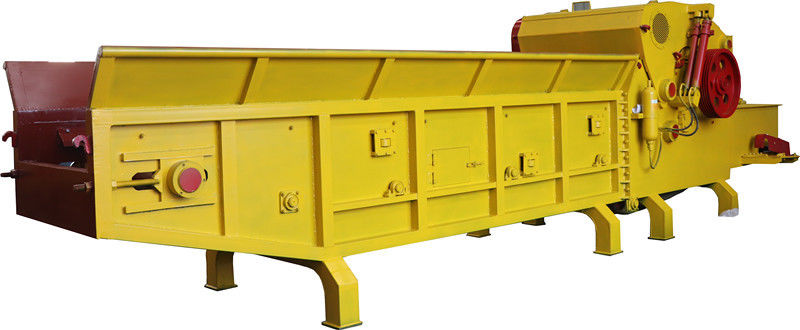

SH800-500 Mobile Diesel Engine Wood Chipper, Energy-saving Wood Chip Crusher 0

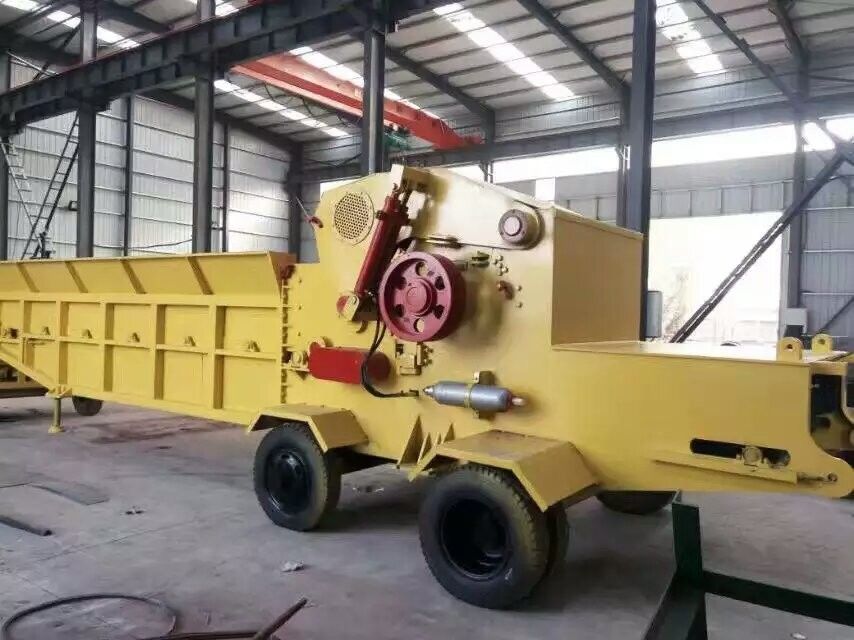

SH800-500 Mobile Diesel Engine Wood Chipper, Energy-saving Wood Chip Crusher 1

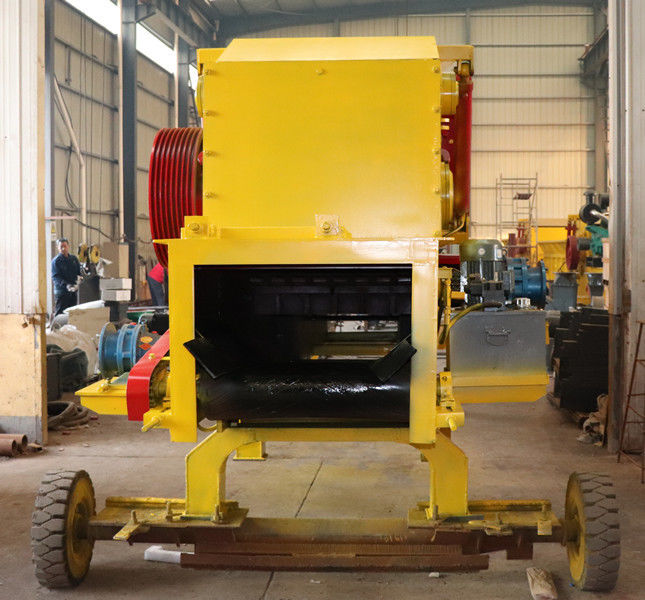

SH800-500 Mobile Diesel Engine Wood Chipper, Energy-saving Wood Chip Crusher 2
