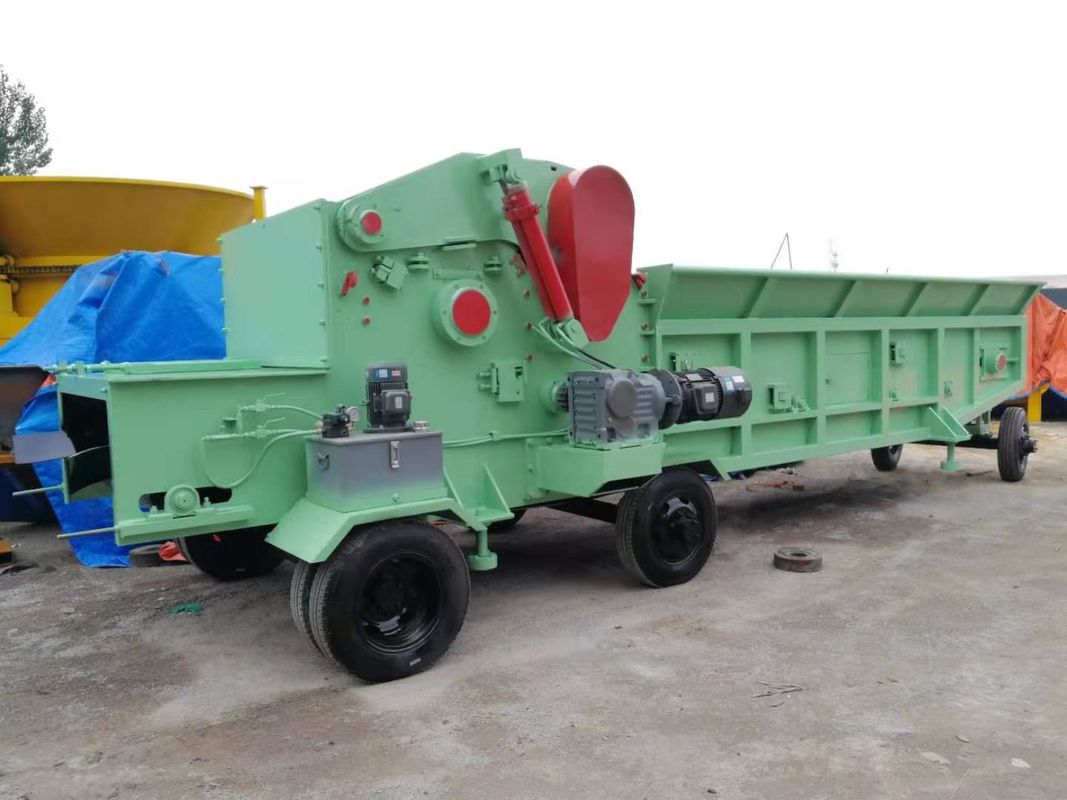

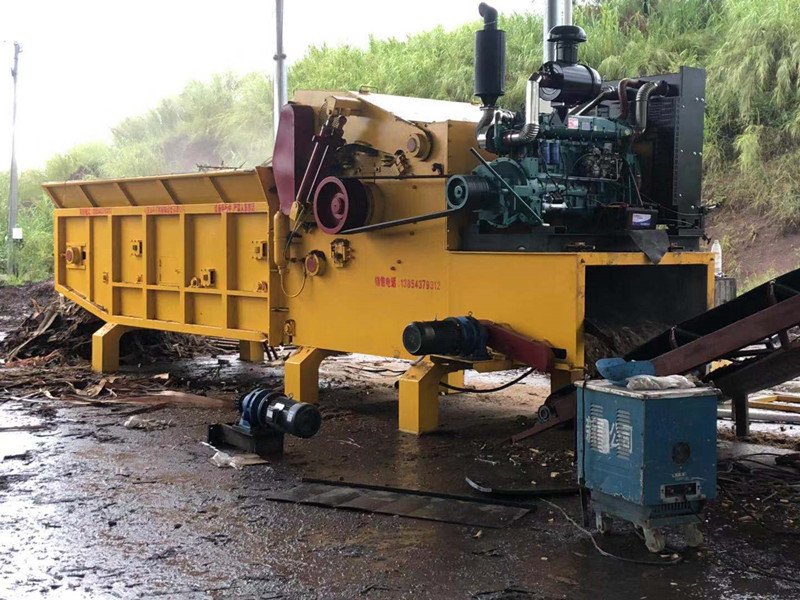

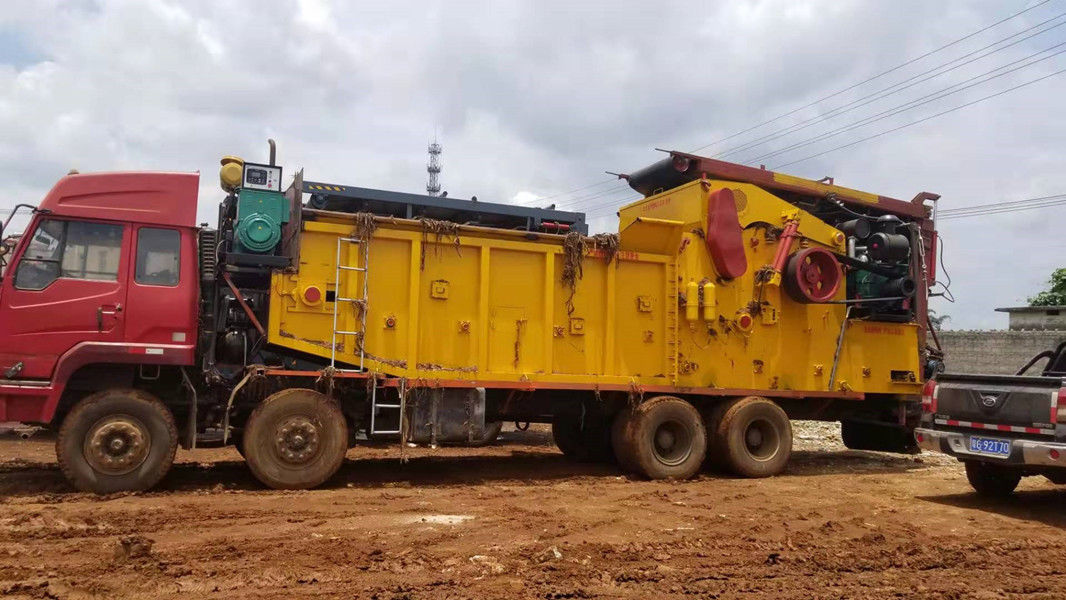

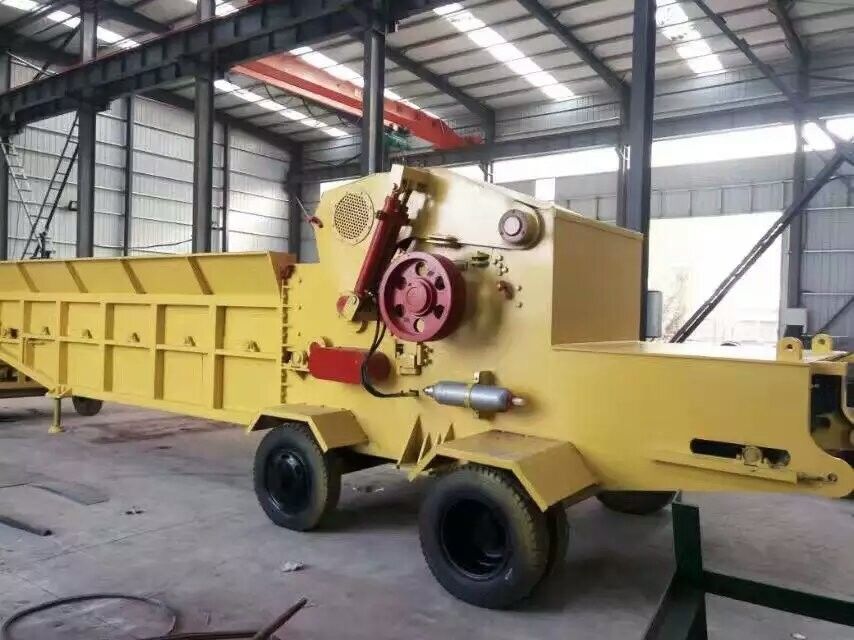

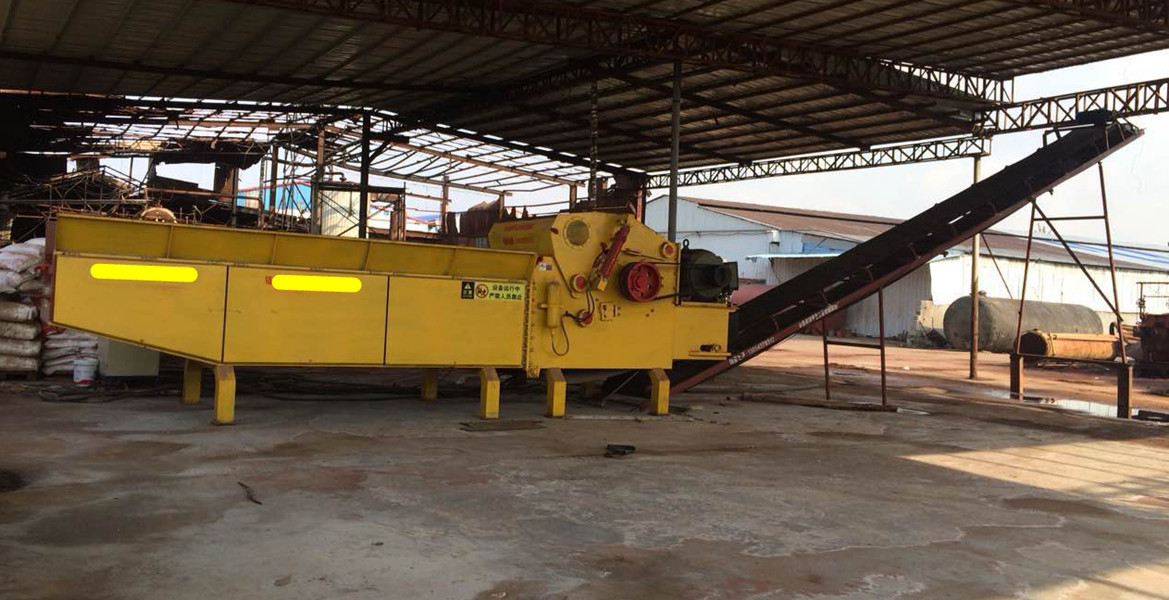

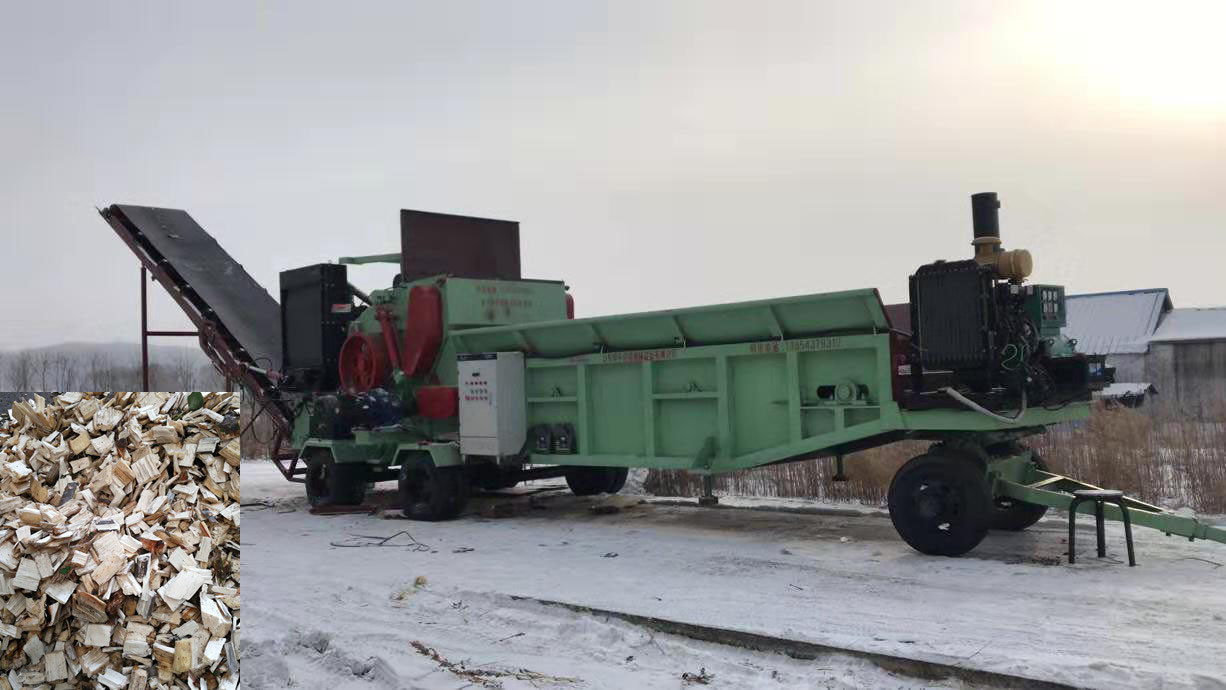

Wood Chipper Machine
Main Technical data:
| 型号 | Model | SH1600-600 |
| 进料口尺寸 | Feeding Inlet | 1600*600MM |
| 刀辊直径 | Blade Roller Diameter | 850MM |
| 刀辊转速 | Blade Roller Speed | 850RPM |
| 产量 | Capacity | 25T-30Tons/Hour |
| 刀片数量 | blade Quantity | 2units (4pcs) |
| 最大加工木材直径 | Max Processing Wood Diameter | 450MM |
| 电机功率 | Motor Power | 250KW |
| 木片尺寸 | Wood Chipper Size | 2-4CM |
| 刀片寿命 | Working Life Of THE Hammer Blades | 4000T-6000T |
Technical Parameter Of Feeding System
| 型号 | Model | SH1600-600 |
| 槽式链板进料传送带 | Slot Chain Plate Feeding Conveyor | 1 Set |
| 喂料电机功率 | Feeding Motor Power | 15KW+11KW |
| 链板宽度 | Chain Plate Width | 1600MM |
| 传送带长度 | Conveyor Length | 6000MM |
| 输送速度 | Feeding Speed | 2-18M/Min |
| 链板材质 | Chain Material | 16Mn |
| 防跑偏辊 | Position Limited Wheel | 5 |
| 硬齿面减速机 | Gear Box | Hard Teeth Faces |
Technical Parameter Of Outlet System
| 型号 | Model | SH1600-600 |
| 出料皮带输送机 | Outlet Conveyor Belt | 1Set |
| 一次出料:7.5KW电机减速机 | First Outlet Motor | 7.5KW With Gear Box |
| 二次出料:5.5KW电机减速机 | Second Outlet Motor | 5.5KW With Gear Box |
| 出料架材质:14-16#槽钢或方管 | Conveyor Material | 14-16# Channel/ Square Tube |
| 输送带长度*宽度 | Conveyor Length*Width | 10m*1.5m |
| 输送带材质:尼龙4层 | Conveyor Material | Nylon 4 Layer |
| 出料高度 | Outlet Height | 3160-4600MM |
智能电控系统 Intelligent Electronic Control System
| 型号 | Model | SH1600-600 |
| 大型控制箱式控制柜 | Large Control Cabinet | Ground |
| 主机启动方式 | Host Start Model | Soft Start |
| 送料速度控制方式 | Feeding Speed Control Model | Variable Frequency |
| 电器控制 | Electrical Control | Control Cabinet + Remote Control |
高效液压系统 High Efficiency Hydraulic System
| 型号 | Model | SH1600-600 |
| 控制方式 | Control Model | Solenoid Valve |
| 液压油泵电机功率 | Hydraulic Oil Pump | 3KW |
| 液压油箱体积 | Hydraulic Oil Tank | 120L |
