STUMP ROOTS CRUSHER/CHIPPER MACHINE
1.Indtroduction:
2.Specification:
| Technical data | Model SH3600-1600 |
| Blade shaft size | 1600x850mm |
| Rotor diameter | 800mm |
| Blade quantity | 4 |
| Main motor power | 185KW |
| Feeding inlet diameter | 3600mm |
| Out feed conveyor | 12meters |
| Capacity | 25-30Ton/Hour |
| Weight | 18000kg |
2.Working video link :https://youtu.be/Bbq4ehPJefU

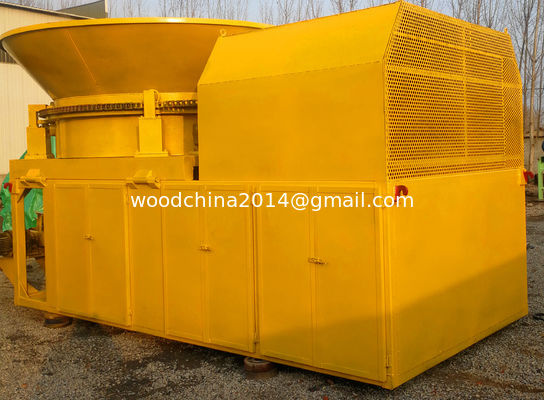

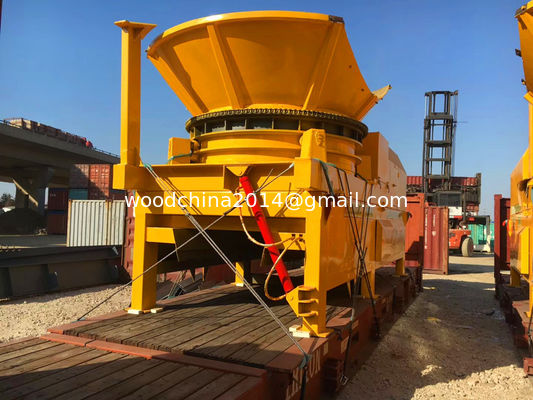

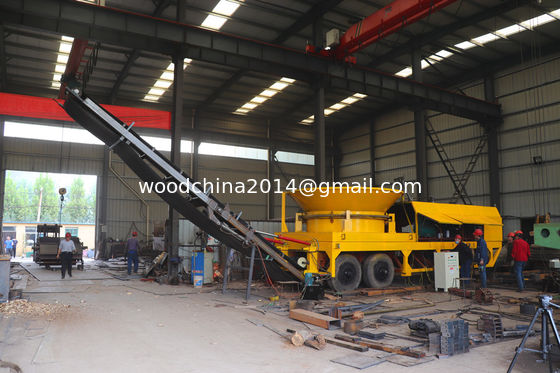

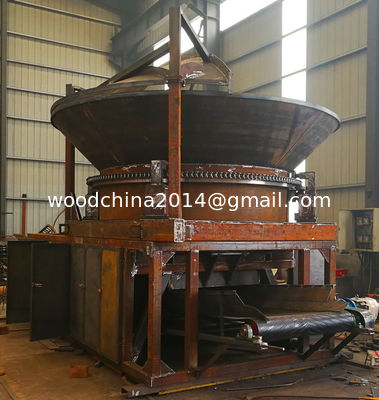

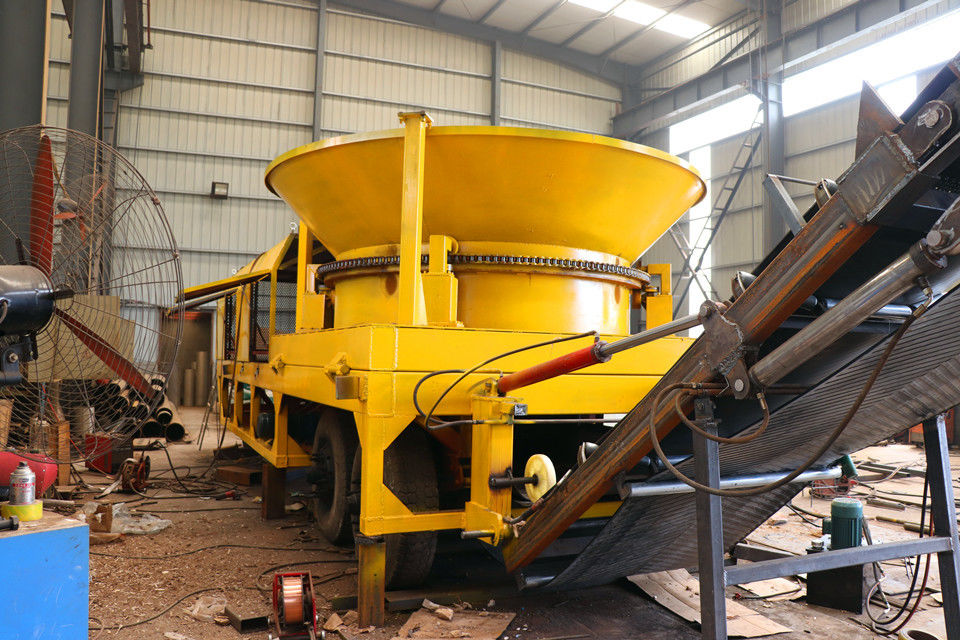

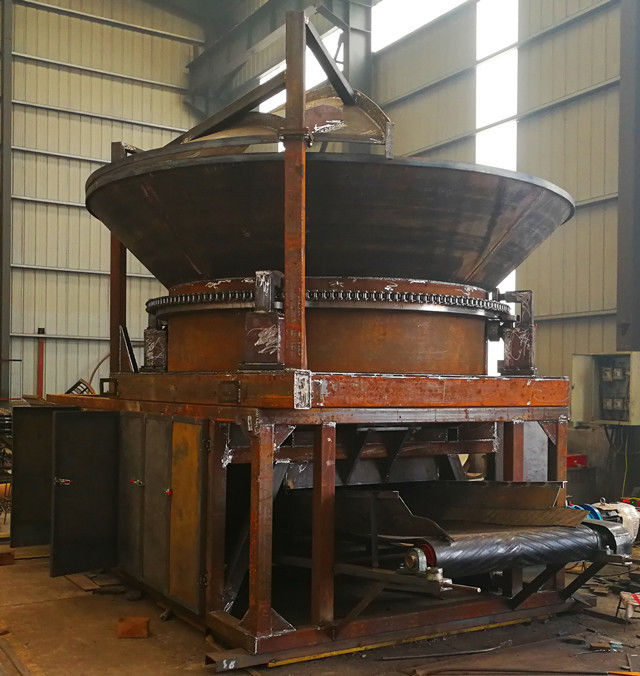

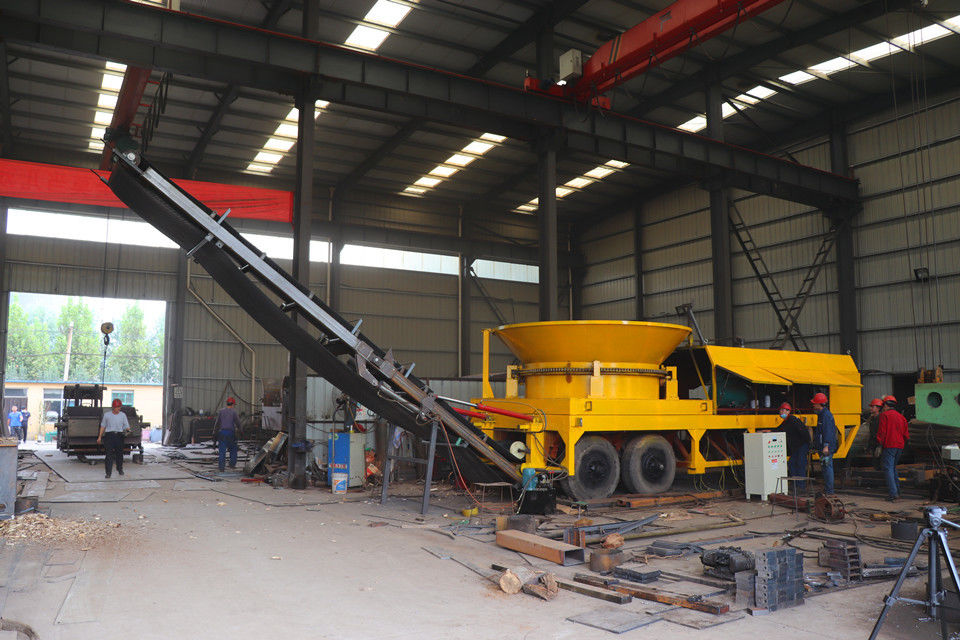

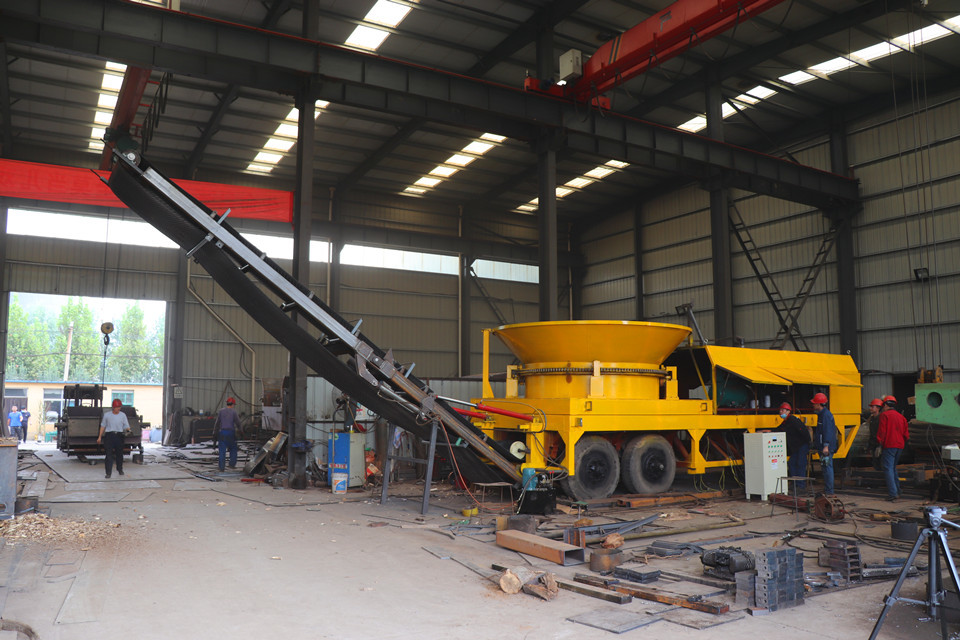

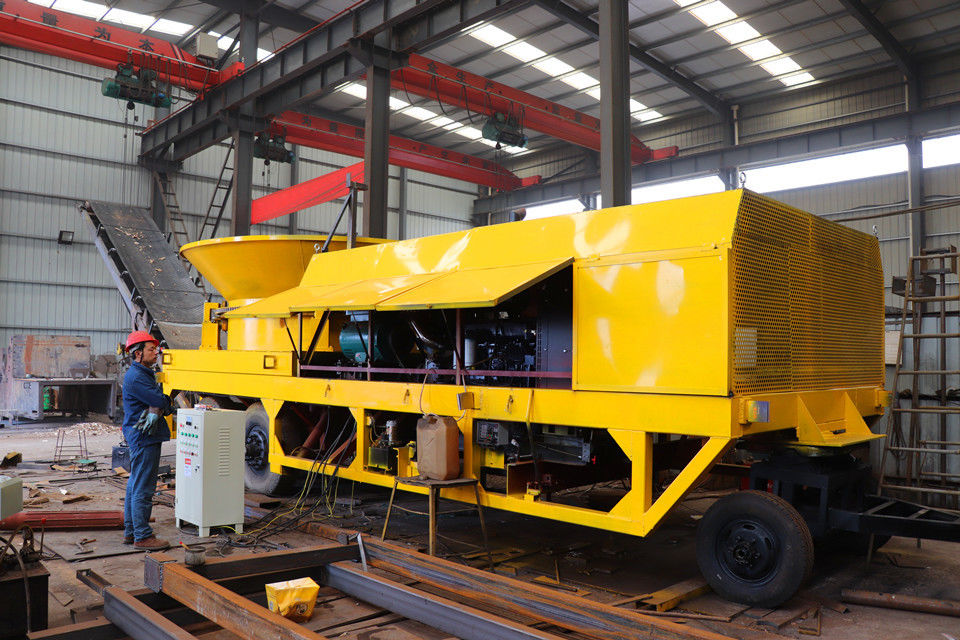

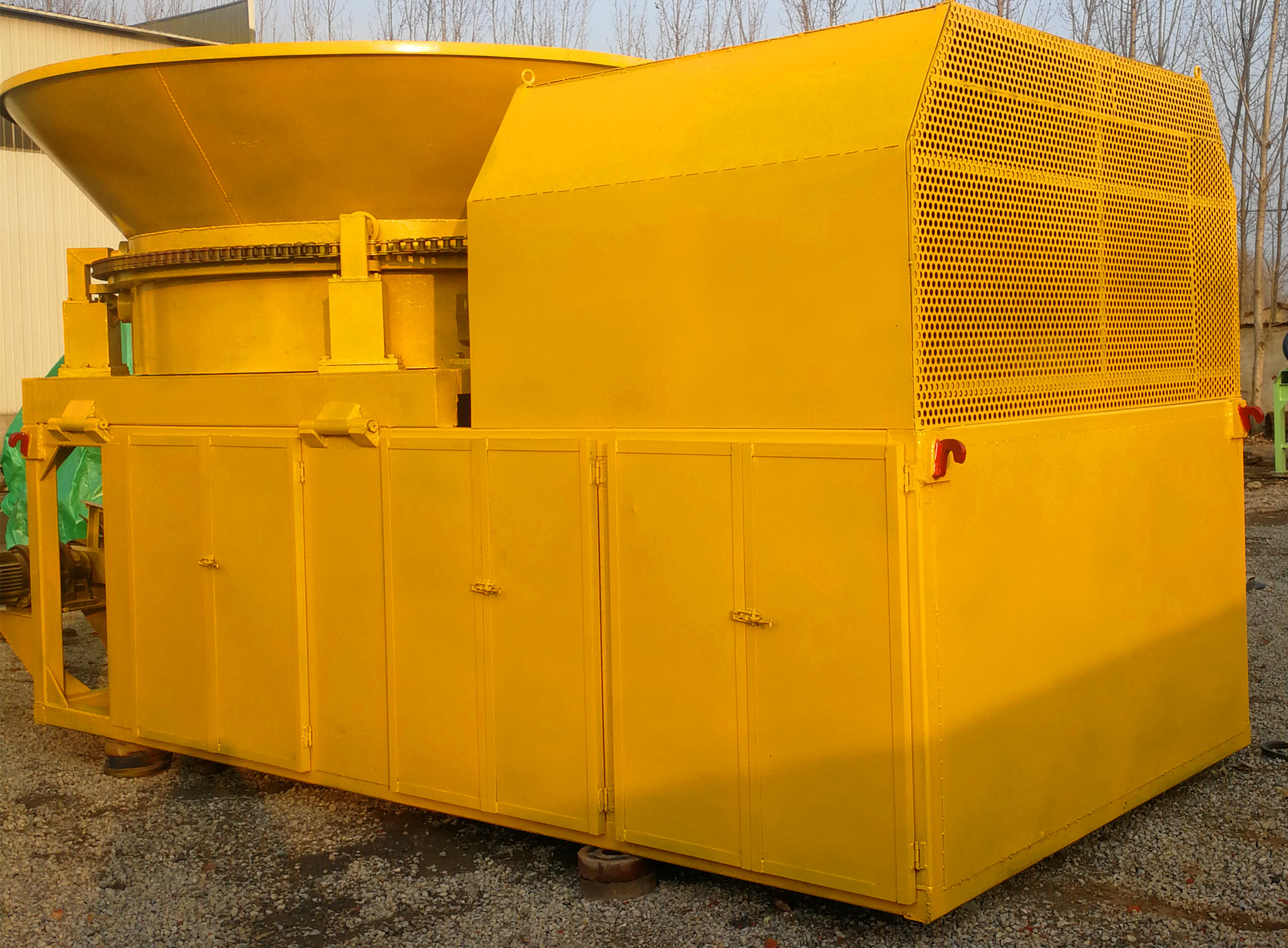

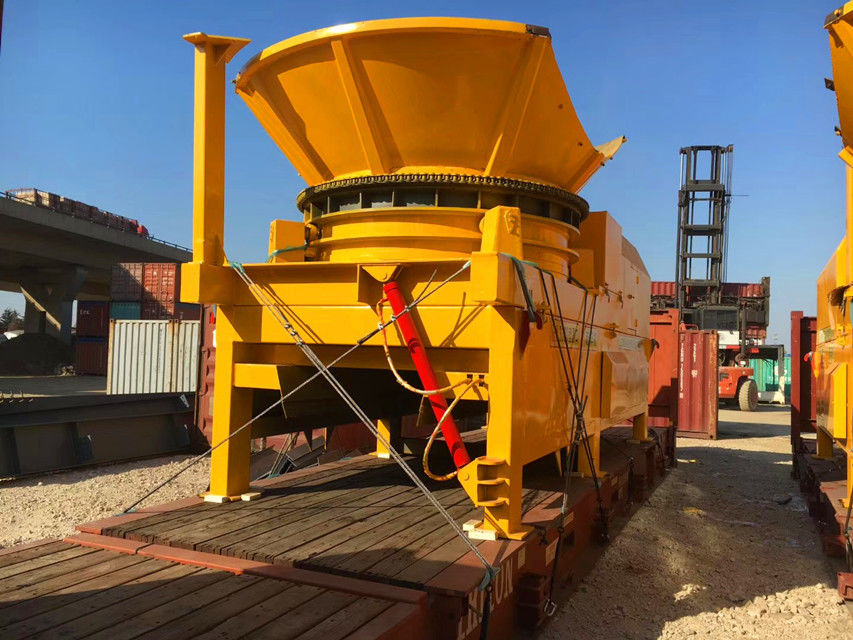

3.Photos:
Mobile Wood Pallet Chipper Price
| Model | SH1300-600 |
| Feeding Inlet | 1300*600MM |
| Blade Roller Diameter | 850MM |
| Blade Roller Speed | 850RPM |
| Capacity | 15-20T/Hour |
| YG8 Hammer Blade Quantity OR Blades | 22 pcs hammers or 2sets blades |
| Max Processing Wood Diameter | 450MM |
| Electric motor power | 160KW |
| Wood Chipper Size | 20-40MM |
| Working Life Of THE Hammer Blades | 4000T-6000T |
Technical Parameter Of Feeding System
| Model | SH1300-600 |
| Slot Chain Plate Feeding Conveyor | 1 Set |
| Feeding Motor Power | 7.5KW+11KW |
| Chain Plate Width | 1260MM |
| Conveyor Length | 6000MM |
| Feeding Speed | 2-18M/Min |
| Chain Material | 16Mn |
| Position Limited Wheel | 5 |
| Gear Box | Hard Teeth Faces |
Technical Parameter Of Discharging System
| Model | SH1300-600 |
| Outlet Conveyor Belt | 1Set |
| First Outlet Motor | 4KW With Gear Box |
| Second Outlet Motor | 5.5KW With Gear Box |
| Conveyor Material | 14-16# Channel/ Square Tube |
| Conveyor Length*Width | 10m*1m |
| Conveyor Material | Nylon 4 Layer |
| Outlet Height | 3800-4500MM |
