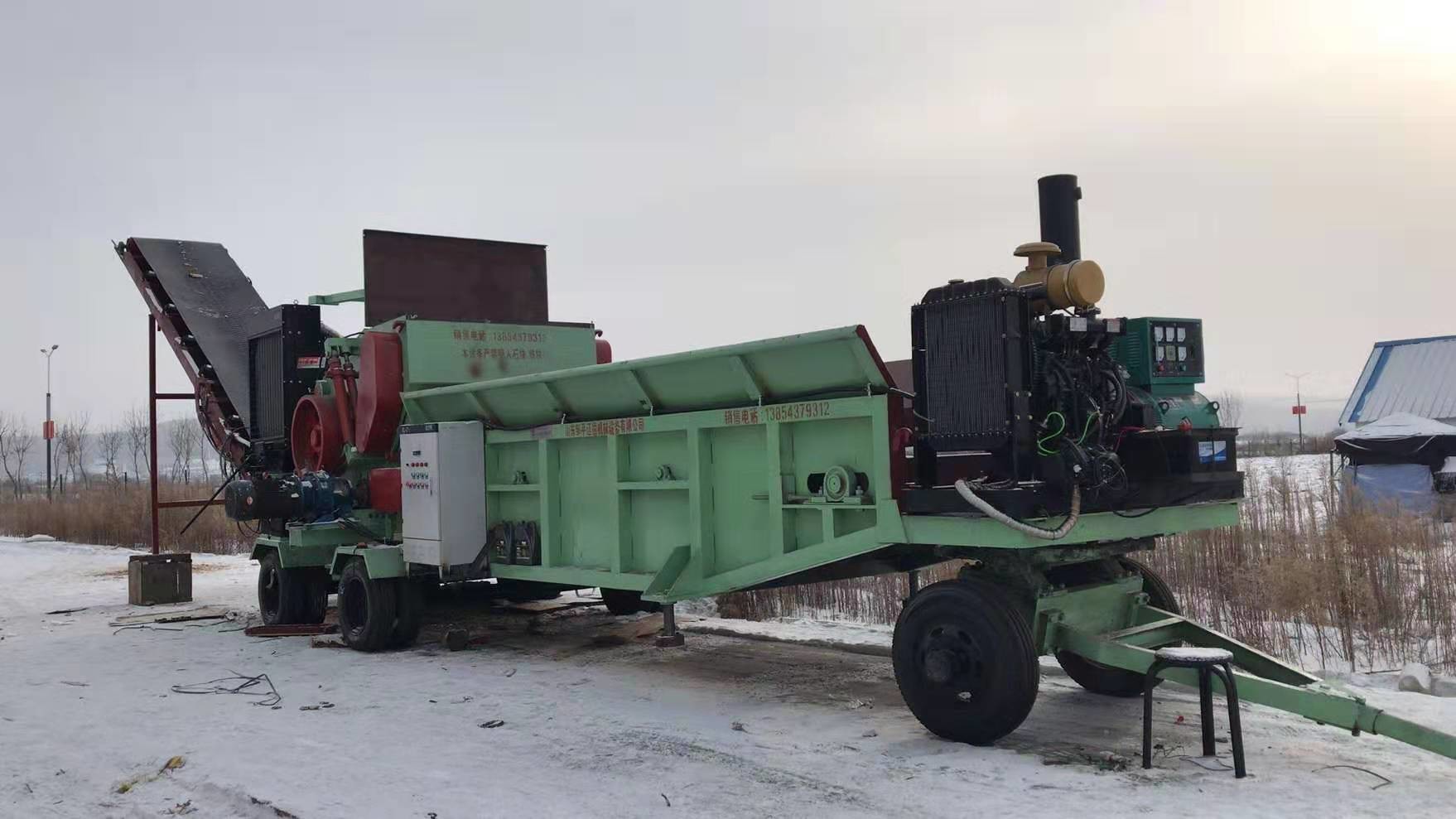

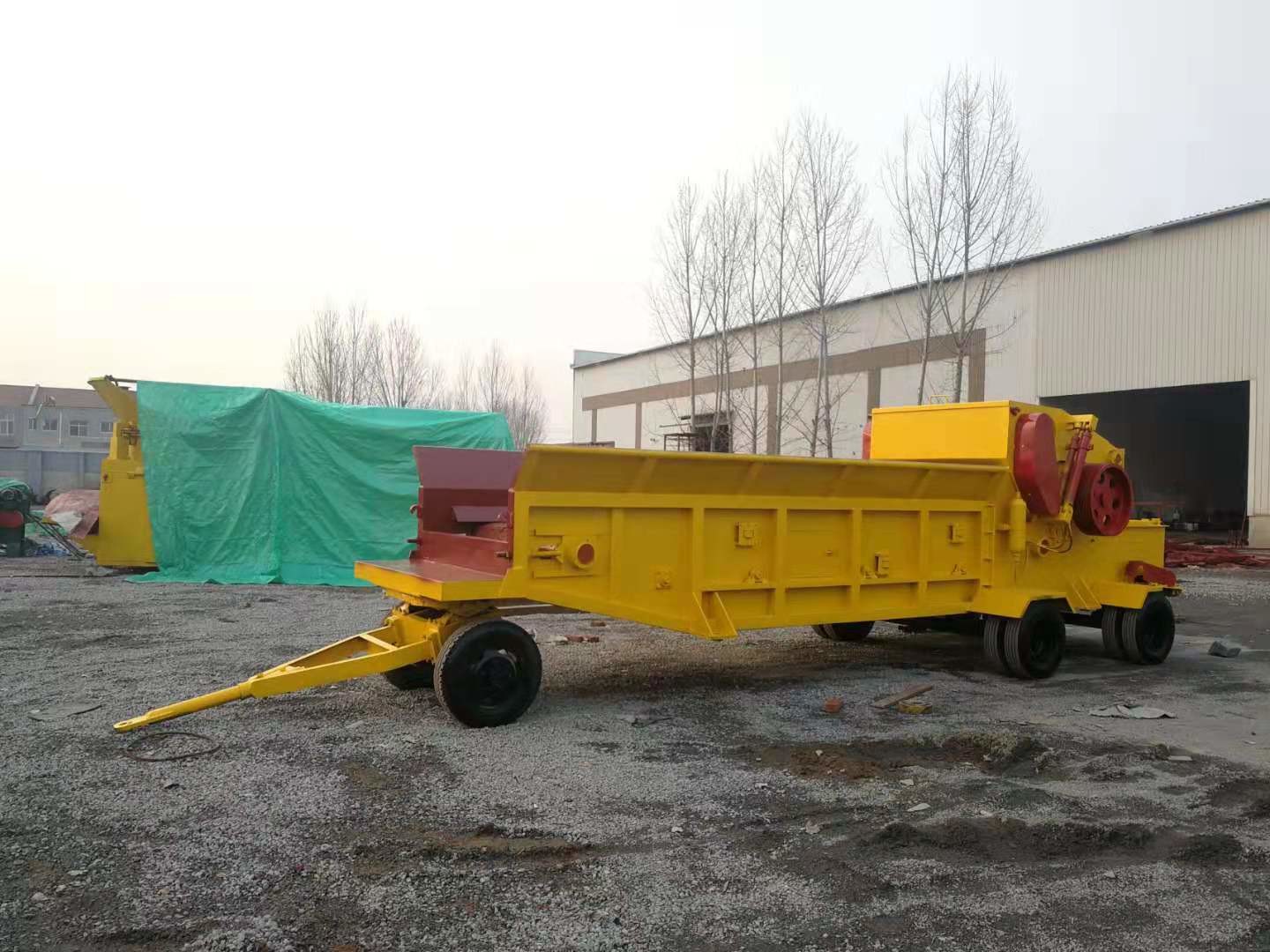

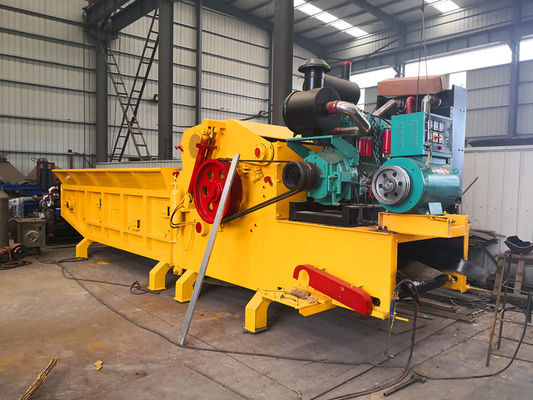

Heavy Duty Wood Chipper With 250 HP Diesel Engine for Large Capacity

Heavy Duty Wood Chipper With 250 HP Diesel Engine for Large Capacity

    • Heavy Duty Wood Chipper With 250 HP Diesel Engine for Large Capacity
    • Heavy Duty Wood Chipper With 250 HP Diesel Engine for Large Capacity
    • Heavy Duty Wood Chipper With 250 HP Diesel Engine for Large Capacity
    • Heavy Duty Wood Chipper With 250 HP Diesel Engine for Large Capacity
    • Heavy Duty Wood Chipper With 250 HP Diesel Engine for Large Capacity
    • Heavy Duty Wood Chipper With 250 HP Diesel Engine for Large Capacity
  • Heavy Duty Wood Chipper With 250 HP Diesel Engine for Large Capacity

    Product Details:

    Place of Origin: Shandong Province, China
    Brand Name: SH
    Certification: ISO9001
    Model Number: SH1300-600, SH800-500, SH1600-600

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $24,500-39,000 / Set
    Packaging Details: container loading
    Delivery Time: within 20 days
    Payment Terms: T/T or L/C at sight, Western Union
    Supply Ability: 100 sets/quarter
    Contact Now
    Detailed Product Description
    Name: Wood Crusher Machine Condition: New
    Mill Granularity: Adjustable Capacity: 8-10 Ton/Hour
    Length Of Cutter: 2-4cm Inlet Diameter: 800-500mm
    Diesel Engine: 250 HP Operation: Control Cabinet
    Shaft Diameter: 850mm

    SH800-500 Series Wood Crusher Machine is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.

    • Main Technical data:
    型号 Model SH800-500
    进料口尺寸 Feeding Inlet 800*500MM
    刀辊直径 Blade Roller Diameter 850MM
    刀辊转速 Blade Roller Speed 850RPM
    产量 Capacity 8-10T/Hour
    YG8 碎合金锤刀 YG8 Hammer Blade Quantity 16PCS
    OR 飞刀 BLADES 2pcs
    最大加工木材直径 Max Processing Wood Diameter 300MM
    电机功率 Diesel engine 250HP
    木片尺寸 Wood Chipper Size 2-4CM
    刀片寿命 Working Life Of THE Hammer Blades 4000T-5000T























    • Feeding Part:
    型号 Model SH800-500
    槽式链板进料传送带 Slot Chain Plate Feeding Conveyor 1 Set
    喂料电机功率 Feeding Motor Power 7.5KW+11KW
    链板宽度 Chain Plate Width 800MM
    传送带长度 Conveyor Length 5000MM
    输送速度 Feeding Speed 2-18M/Min
    链板材质 Chain Material 16Mn
    防跑偏辊 Position Limited Wheel 5
    硬齿面减速机 Gear Box Hard Teeth Faces





















    • Outfeeding Part:
    型号 Model SH800-500
    出料皮带输送机 Outlet Conveyor Belt 1Set
    一次出料:3KW电机减速机 First Outlet Motor 4KW With Gear Box
    二次出料:5.5KW电机减速机 Second Outlet Motor 5.5KW With Gear Box
    出料架材质:14-16#槽钢或方管 Conveyor Material 14-16# Channel/ Square Tube
    输送带长度*宽度 Conveyor Length*Width 10m*1m
    输送带材质:尼龙4层 Conveyor Material Nylon 4 Layer
    出料高度 Outlet Height 3800-4500MM




















    • Intelligent Electronic Control System

    型号 Model SH800-500
    大型控制箱式控制柜 Large Control Cabinet Ground
    主机启动方式 Host Start Model Soft Start
    送料速度控制方式 Feeding Speed Control Model Variable Frequency
    电器控制 Electrical Control Control Cabinet + Remote Control
