Pine Wood Sawdust Crusher Machine, Wood Crusher with inverter motor

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SH3600-1600

Minimum Order Quantity:	1 SET
Price:	US $18,000 - 32,000 / Set Sawdust Wood Crusher
Packaging Details:	container loading of Sawdust Wood Crusher
Delivery Time:	within 20 days for Sawdust Wood Crusher
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	500 sets/year of Sawdust Wood Crusher

Get Best Price Contact Now

Detail Information

Name:	Sawdust Wood Crusher	Diesel Motor:	400HP
Application:	Crushing Wood Roots Stump,etc Into Chippers	Power(W):	185kw,3phase
Feeding Inlet Diameter:	3600mm	Production Capacity:	25-30tons/hour
Mobile Usage:	Available	Warranty:	1 Year
After-sales Service:	Video Technical Support, Spare Parts
Highlight:	pine wood sawdust crusher machine , wood crusher with inverter motor , industrial wood crusher machine

Product Description

STUMP CRUSHER

1.Indtroduction:

Processing Raw Materials : wood roots/stumps,branches, straw, pallets, etc .
Feeding inlet diameter :3600mm
shaft diameter : 800mm
Capacity: 25-30tons/hour
blade quantity: 4pcs
electric motor :185kw/3phase

2.Specification:

Technical data	Model SH3600-1600
Blade shaft size	1600x850mm
Rotor diameter	800mm
Blade quantity	4
Main motor power	185KW
Feeding inlet diameter	3600mm
Out feed conveyor	12meters
Capacity	25-30Ton/Hour
Weight	18000kg

3.Photos:

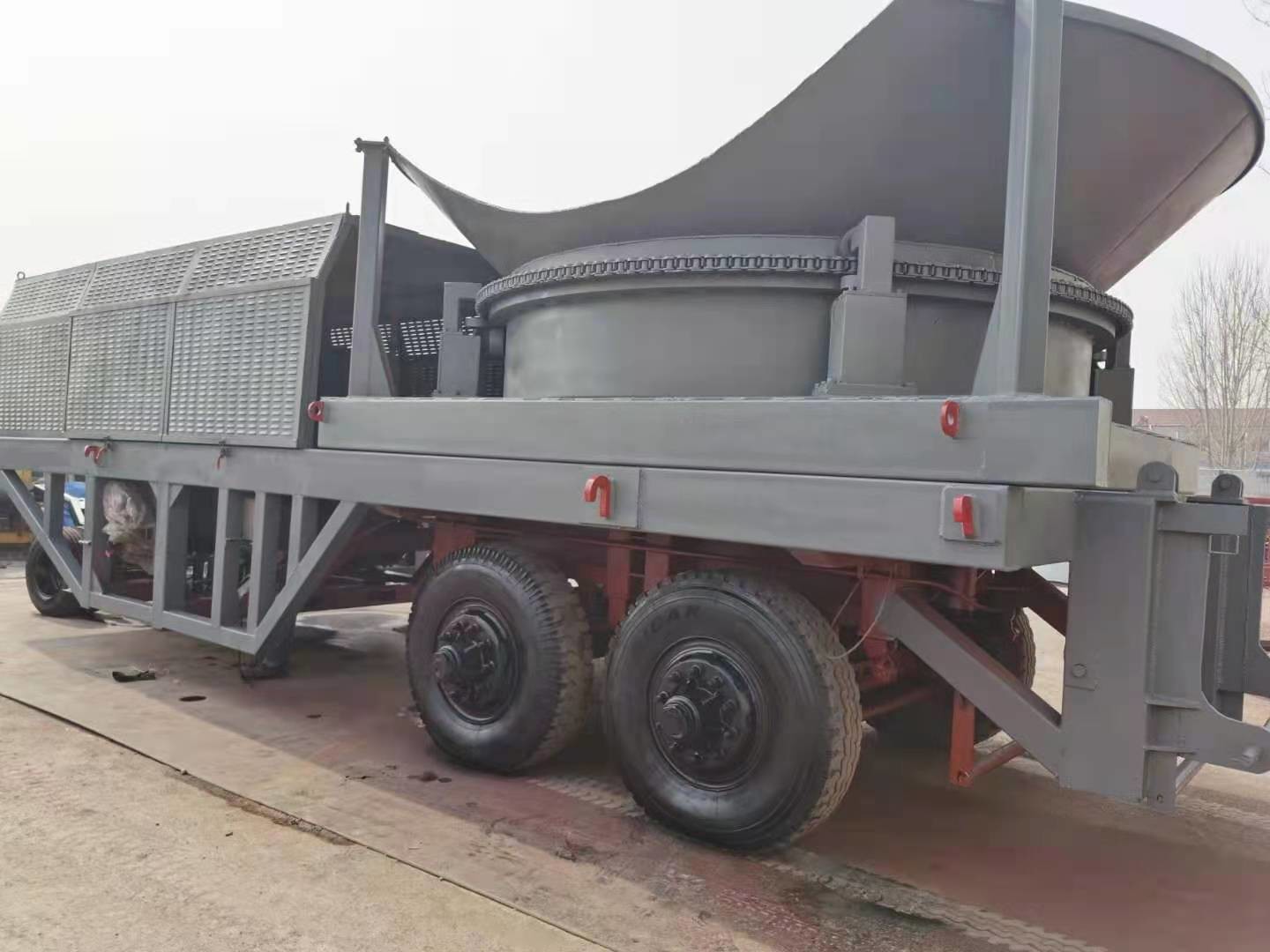

Pine Wood Sawdust Crusher Machine, Wood Crusher with inverter motor 0

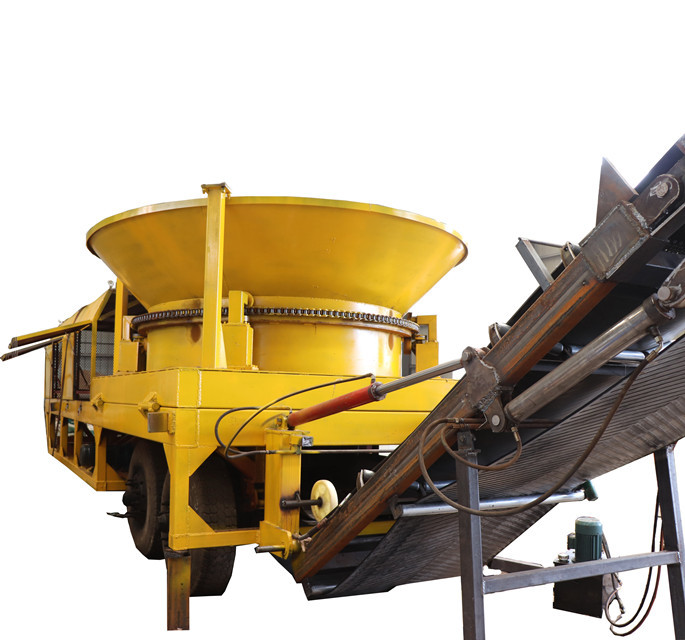

Pine Wood Sawdust Crusher Machine, Wood Crusher with inverter motor 1

Hammer Blade type

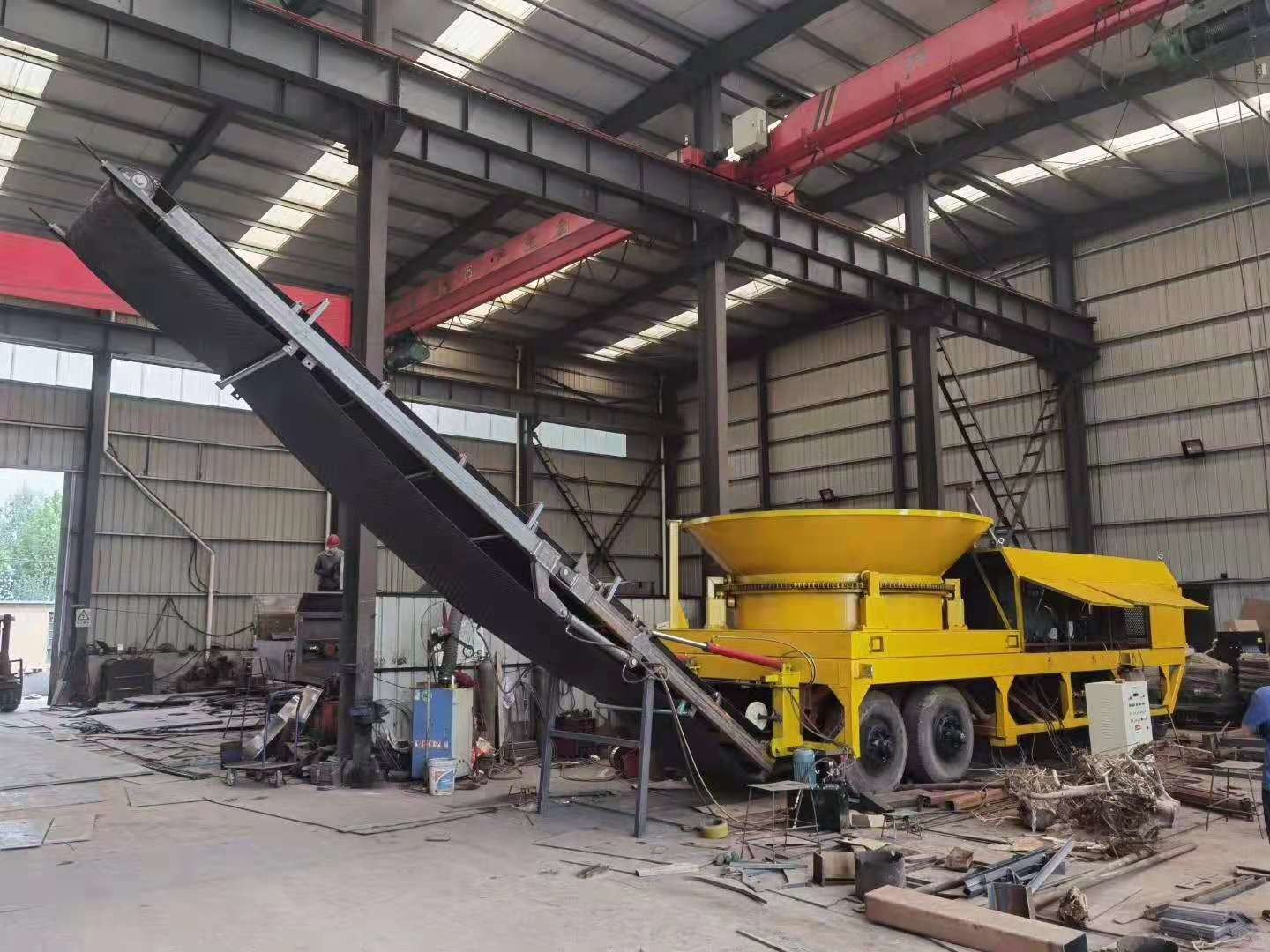

Pine Wood Sawdust Crusher Machine, Wood Crusher with inverter motor 2

Optional - Collapsible outlet conveyor

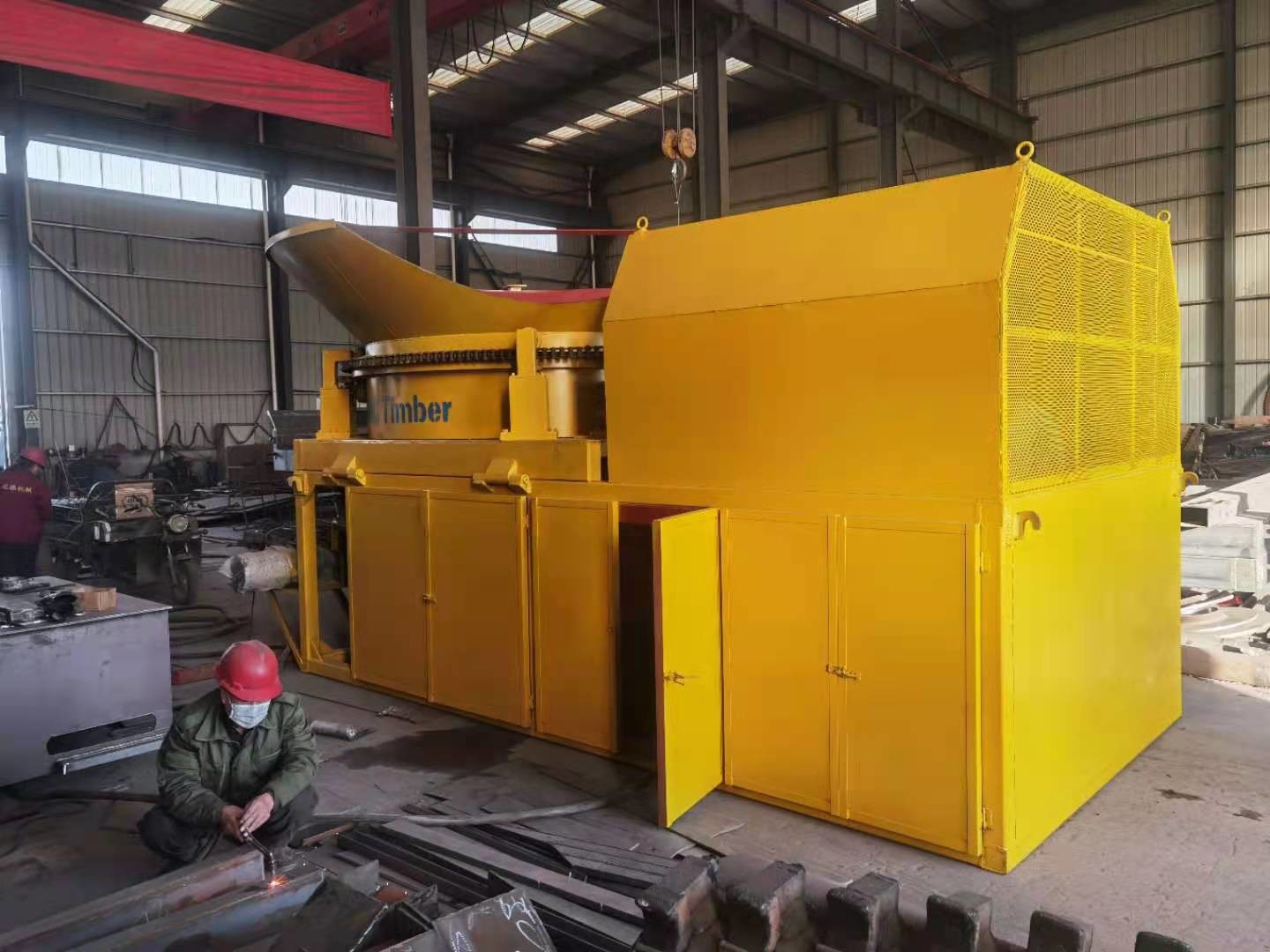

Pine Wood Sawdust Crusher Machine, Wood Crusher with inverter motor 3

Optional - screener

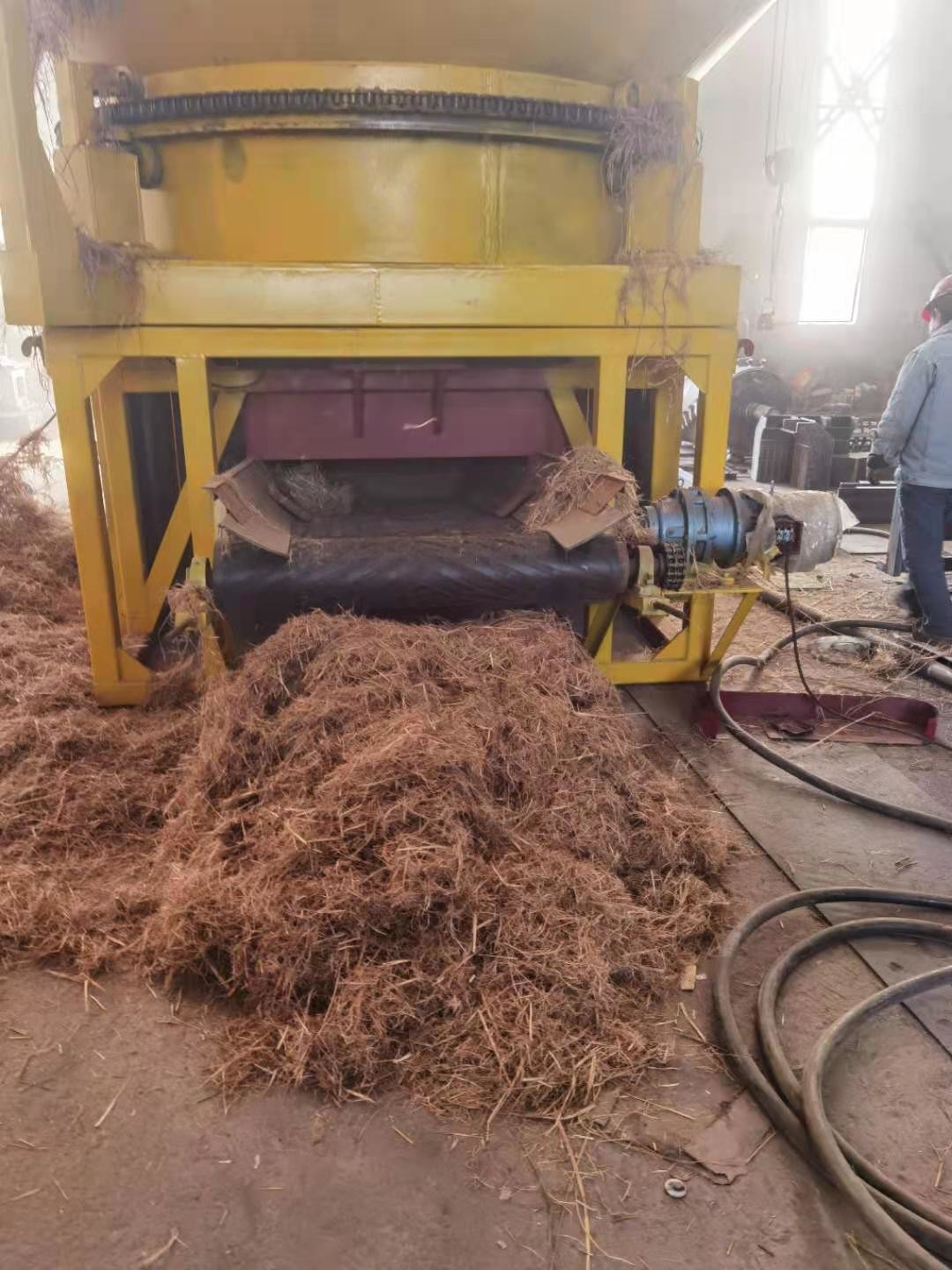

Pine Wood Sawdust Crusher Machine, Wood Crusher with inverter motor 4

Related Wood Crusher

Wood Composite Crusher Machine

Tehnical data:

Model		SH2000-1000	SH1300-600	SH1400-600	SH1600-600
Feeding inlet size		2000x1000mm	1250x600mm	1400x600mm	1600x600mm
Blade roller diameter		1400mm	850mm	850mm	850mm
Blade roller speed		750RPM	850RPM	850RPM	850RPM
Production capacity		70-100ton/H	12-15ton/H	18-20ton/H	25-30ton/H
1	YG8 hammer blade qty	86pcs	20pcs	24pcs	28pcs
2	Blade qty	3groups/9tablets	2groups/4tablets	2groups/4tablets	2groups/4tablets
Max. Processing log diameter		<800mm	450mm	450mm	450mm
Main motor power		450kw	160kw	200kw	250kw
Wood chipper size		3-5cm	2-4cm	2-4cm	2-4cm
Working life of blades		4000T-5000T	4000T-6000T	4000T-6000T	4000T-6000T
Optional : Diesel engine power 400HP is workable Wheels for mobile usage Hydraulic collapsible outlet conveyor Magnetic machine for sucking out iron products

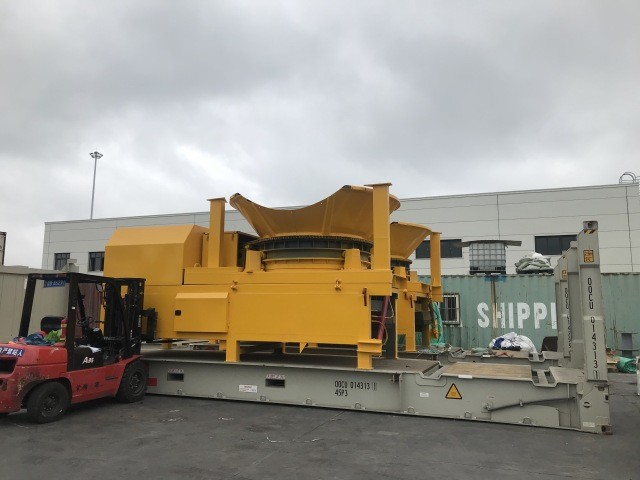

Pine Wood Sawdust Crusher Machine, Wood Crusher with inverter motor 5

Wooden Pallets Shredder

Model	SHTF1350
Feeding Inlet	1350*230mm
Blade Shaft Diameter	450mm
Blade Quantity	36
Motor Power	37KW
Conveyor belt length	3000mm
Production Capacity	60 Pallets/Hour
Weight	3200KG
Optional part: Magnetic machine for sucking nails ,etc iron products Extended outlet conveyor
