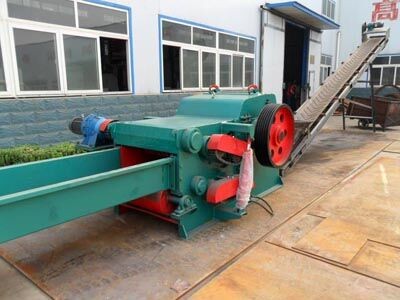

Drum clipper is a kind of specialized equipment to manufacture wood chip, which can be used for the manufacture of flake board, fiber board and paper. The small-sized drum clipper is the best equipment for labs of factories. Raw materials for drum clipper are thin timber, branches, remainder of wood processing (slab, batten, heart of log) and sugar cane stalk, reed, bamboo. Wood Drum Chipper |
||||||
|
Model |
SH213 |
SH215 |
SH216 |
SH218 |
SH2112 |
SH2113 |
|
Blade Roll Diameter(mm) |
300 |
540 |
650 |
800 |
1000 |
1300 |
|
Blade Roll Length(mm) |
400 |
500 |
600 |
800 |
780 |
780 |
|
Blade Quantity(Pcs) |
4 |
2 |
2 |
2 |
3 |
3 |
|
Feeding Inlet(mm) |
250*400 |
250*450 |
300*600 |
380*700 |
550*800 |
700*1000 |
|
Blade Roll Speed (R/Min) |
650 |
650 |
650 |
650 |
500 |
450 |
|
Feeding Speed(M/Min) |
28 |
30 |
33 |
35 |
38 |
43 |
|
Max Processing Wood Diameter(mm) |
200 |
200 |
240 |
330 |
500 |
600 |
|
Wood Chip Length(mm) |
20-30 |
20-30 |
20-30 |
20-30 |
20-50 |
20-50 |
|
Production Capacity(T/H) |
4-6 |
6-9 |
7-10 |
25-30 |
30-40 |
30-40 |
|
Main Motor Power(kw) |
30 |
45 |
55 |
110 |
160 |
220 |
|
Feeding Roll Motor Power(kw) |
1.5*2 |
3*1 , 4*1 |
3*1 , 4*1 |
5.5*2 |
7.5*1,5.5*1 |
7.5*2 |
|
Weight(t) |
3 |
4 |
4.5 |
7 |
12 |
13 |
|
Overall Dimension(mm) |
2100*1000*1200 |
2400*2000*1430 |
2600*2100*1430 |
2670*2150*1500 |
4400*3700*2050 |
4485*3744*2200 |
|
Feeding Motor Power |
2.2KW |
2.2KW |
2.2KW |
3KW |
3KW |
3KW |
|
Oil Pump Motor Power(kw) |
|
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
Feeding Conveyor Length |
2 Meters |
6 Meters |
6 Meters |
6 Meters |
8 Meters |
8 Meters |
|
Outlet Conveyor Length |
3 Meters |
10 Meters |
10 Meters |
10 Meters |
12 Meters |
16 Meters |
