Home /Products/Wood Crusher/Diesel Mobile Wood Chipping Machine pto Wood Chipper,Drum Wood Chipper Malaysia Wood Crusher Machine

Diesel Mobile Wood Chipping Machine pto Wood Chipper,Drum Wood Chipper Malaysia Wood Crusher Machine

1 SET
MOQ
US $18,000-4,9000 / Sets
Price
Diesel Mobile Wood Chipping Machine pto Wood Chipper,Drum Wood Chipper Malaysia Wood Crusher Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Wood Crusher Price
Operation: Automatic Distant Controlling
Inlet Diameter: 1250x600mm, 1600x600mm, 2000x 1000mm, Etc
Diesel Engine: 400HP
Power(W): 110kw, 160KW,250KW,450KW
Raw Material:: Tree , Log, Wood Pallet, Waste Wood, Plywood, Etc
Capacity: 15-100tons/Hour
Shaft Diameter: 850mm,1400mm
Discharging Conveyor: 10meters
Usage: Processing Wooden Products Into Chippper
Warranty: 12 Months
After-sales Service: Video Technical Support, Spare Parts
Highlight:

400HP Mobile Shredder Wood Crusher

,

400HP Wood Crusher Equipment

,

Mobile wood Shredder
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: SH800-500,SH1300-600, SH1400-600, SH1600-600, etc
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 20 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 300 sets/Year
Product Description

Mobile Shredder Large Wood Crusher /Chipper for sale ,heavy duty wood crusher

Wood Crusher Machine



Introduction

  • It is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on.
  • It can work together with the baler breaker.
  • This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time.
  • It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance.
  • It is the ideal equipment for biomass power generation enterprises.

Technical Parameter Of Host System Equipment

Model SH2000-1000 SH1300-600 SH1400-600 SH1600-600
Feeding inlet size 2000x1000mm 1250x600mm 1400x600mm 1600x600mm
Blade roller diameter 1400mm 850mm 850mm 850mm
Blade roller speed 750RPM 850RPM 850RPM 850RPM
Production capacity 70-100ton/H 12-15ton/H 18-20ton/H 25-30ton/H
1 YG8 hammer blade qty 86pcs 20pcs 24pcs 28pcs
2 Blade qty 3groups/9tablets 2groups/4tablets 2groups/4tablets 2groups/4tablets
Max. Processing log diameter <800mm 450mm 450mm 450mm
Main motor power 450kw 160kw 200kw 250kw
Wood chipper size 3-5cm 2-4cm 2-4cm 2-4cm
Working life of blades 4000T-5000T 4000T-6000T 4000T-6000T 4000T-6000T

Optional :

Diesel engine power 400HP is workable

Wheels for mobile usage

Hydraulic collapsible outlet conveyor

Magnetic machine for sucking out iron products

4. Photos:

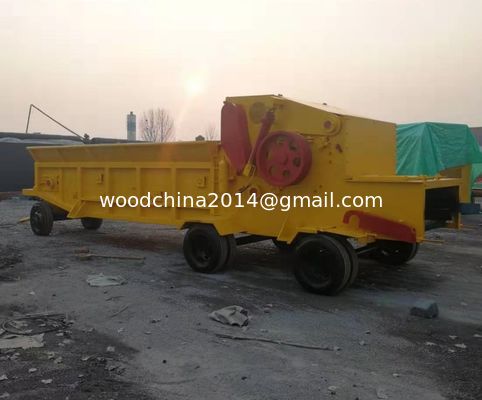

Electrical type

Diesel Mobile Wood Chipping Machine pto Wood Chipper,Drum Wood Chipper Malaysia Wood Crusher Machine 0

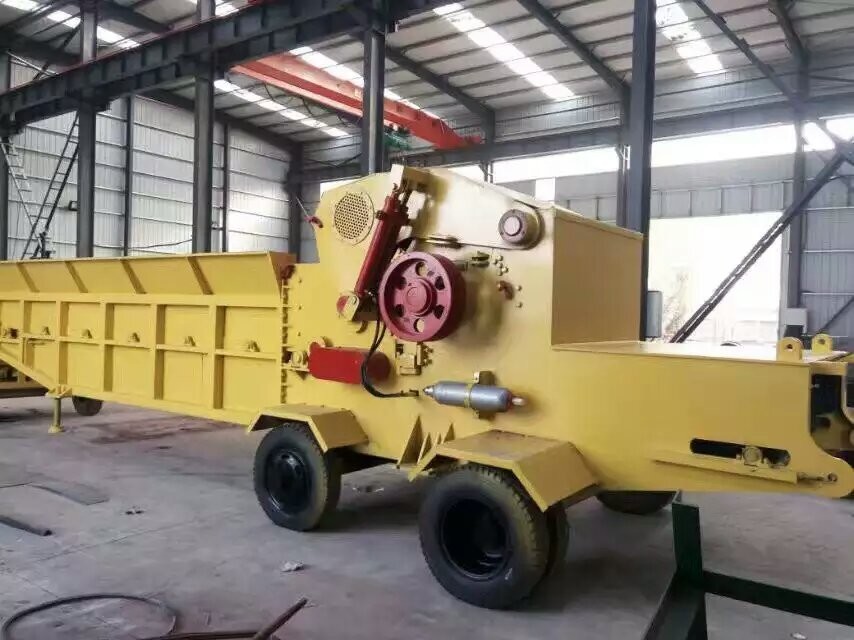

Diesel engine + generator type

Diesel Mobile Wood Chipping Machine pto Wood Chipper,Drum Wood Chipper Malaysia Wood Crusher Machine 1

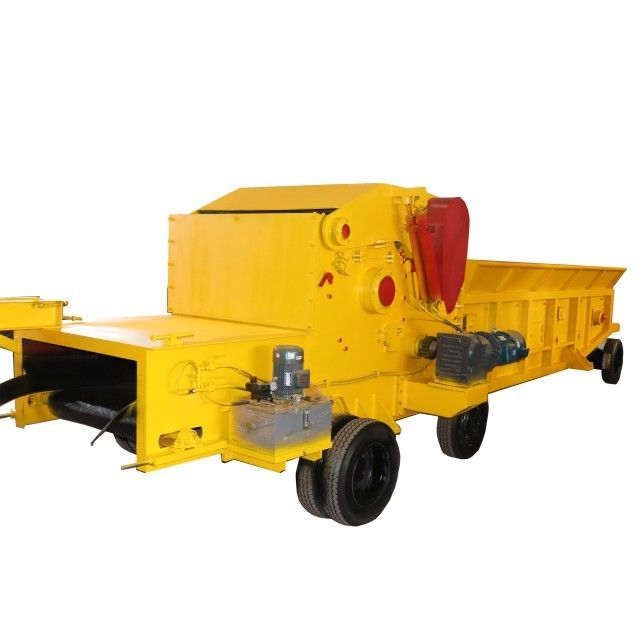

With wheels for mobile usage

Diesel Mobile Wood Chipping Machine pto Wood Chipper,Drum Wood Chipper Malaysia Wood Crusher Machine 2

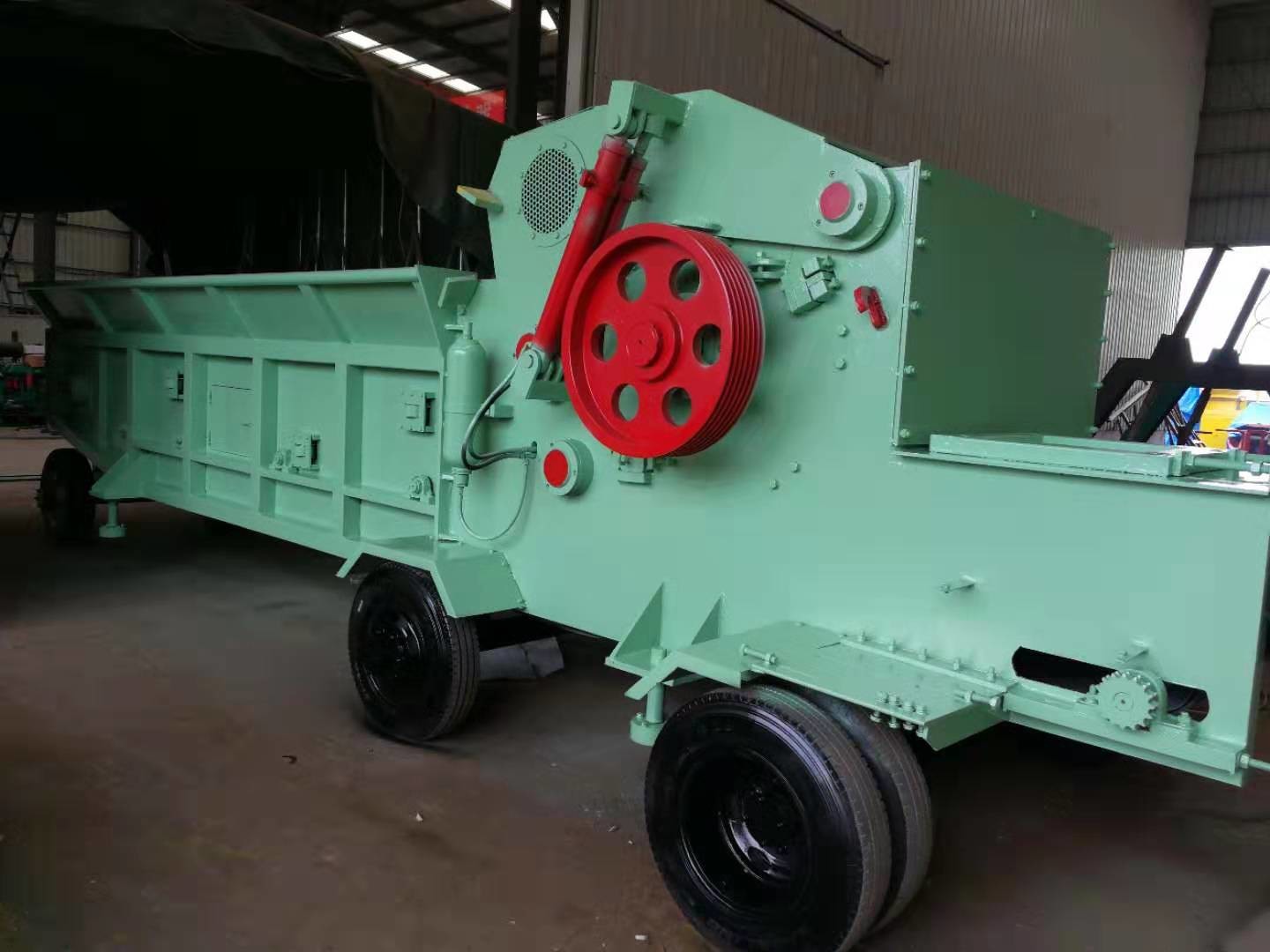

Hydraulic Foldable outlet conveyor

Diesel Mobile Wood Chipping Machine pto Wood Chipper,Drum Wood Chipper Malaysia Wood Crusher Machine 3

End product - wood chipper

Diesel Mobile Wood Chipping Machine pto Wood Chipper,Drum Wood Chipper Malaysia Wood Crusher Machine 4

Spare parts -optional

Diesel Mobile Wood Chipping Machine pto Wood Chipper,Drum Wood Chipper Malaysia Wood Crusher Machine 5

Diesel Mobile Wood Chipping Machine pto Wood Chipper,Drum Wood Chipper Malaysia Wood Crusher Machine 6

Related Wood Crusher

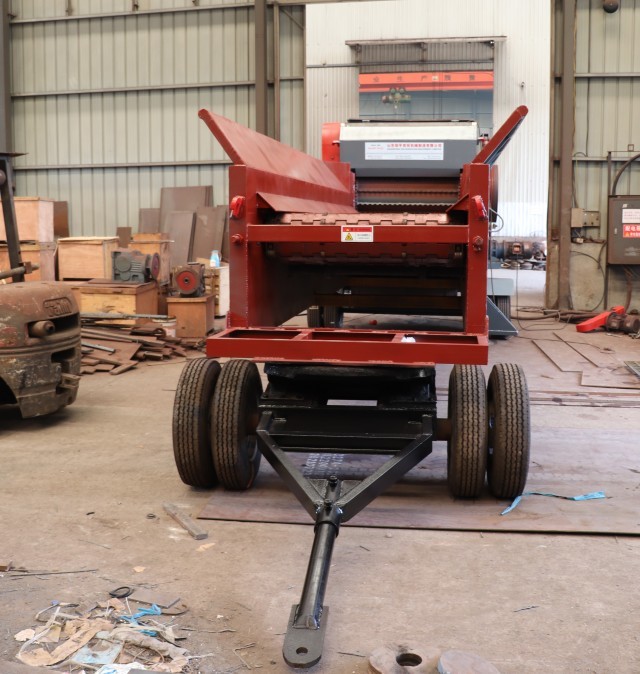

Wood Roots/stump crusher

Specification:

Technical data Model SH3600-1600
Blade shaft size 1600x850mm
Rotor diameter 800mm
Blade quantity 4
Main motor power 185KW
Feeding inlet diameter 3600mm
Out feed conveyor 12meters
Capacity 25-30Ton/Hour
Weight 18000kg

Diesel Mobile Wood Chipping Machine pto Wood Chipper,Drum Wood Chipper Malaysia Wood Crusher Machine 7Diesel Mobile Wood Chipping Machine pto Wood Chipper,Drum Wood Chipper Malaysia Wood Crusher Machine 8

Wood Pallet Crusher

Model SHTF1350
Feeding Inlet 1350*230mm
Blade Shaft Diameter 450mm
Blade Quantity 36
Motor Power 37KW
Conveyor belt length 3000mm
Production Capacity 60 Pallets/Hour
Weight 3200KG
Optional part: Magnetic machine for sucking nails ,etc iron products







































Diesel Mobile Wood Chipping Machine pto Wood Chipper,Drum Wood Chipper Malaysia Wood Crusher Machine 9Diesel Mobile Wood Chipping Machine pto Wood Chipper,Drum Wood Chipper Malaysia Wood Crusher Machine 10
