| Place of Origin: | shandong province, China |
| Brand Name: | SH |
| Certification: | ISO9001 |
| Model Number: | SH1600-600, SH1400-600, SH1300-600, SH1300-800 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $18,000-4,9000 / Sets |
| Packaging Details: | container loading |
| Delivery Time: | within 20 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 300 sets/Year |
| Name: | Wood Chipper/Crusher Machine | Condition: | New |
|---|---|---|---|
| Application: | Crush Wooden Products Into Wood Chippers | Capacity: | 15-30tons/hour |
| Feeding Inlet Size: | 1300x600mm | Roll Diameter: | 850mm Or 1000mm |
| Main Motor Power: | 160MM | Motor Start: | Soft Start |
| Max. Processing Log Diameter: | 450mm | Raw Materials Type: | All Woods And Wooden Products |

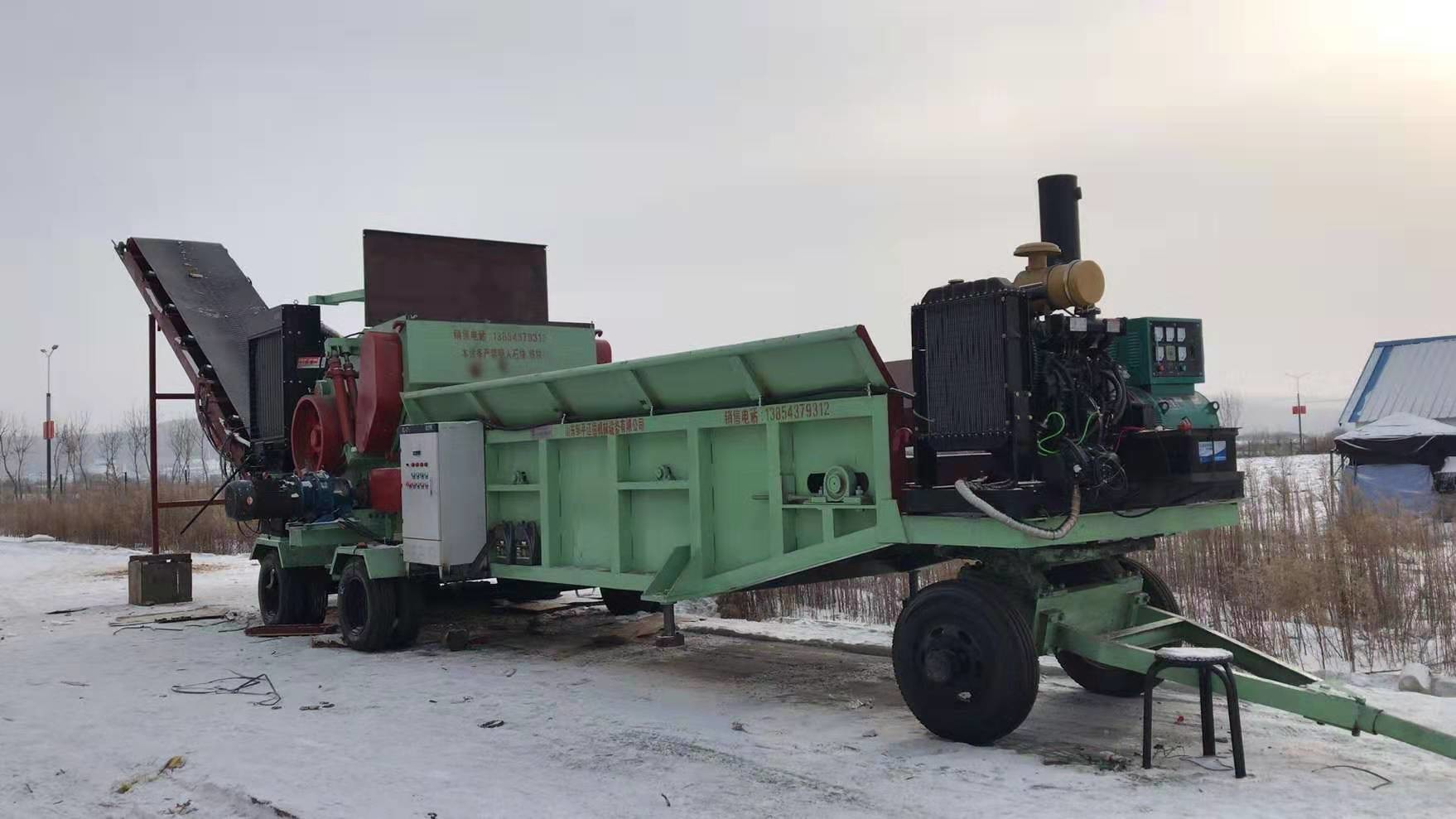

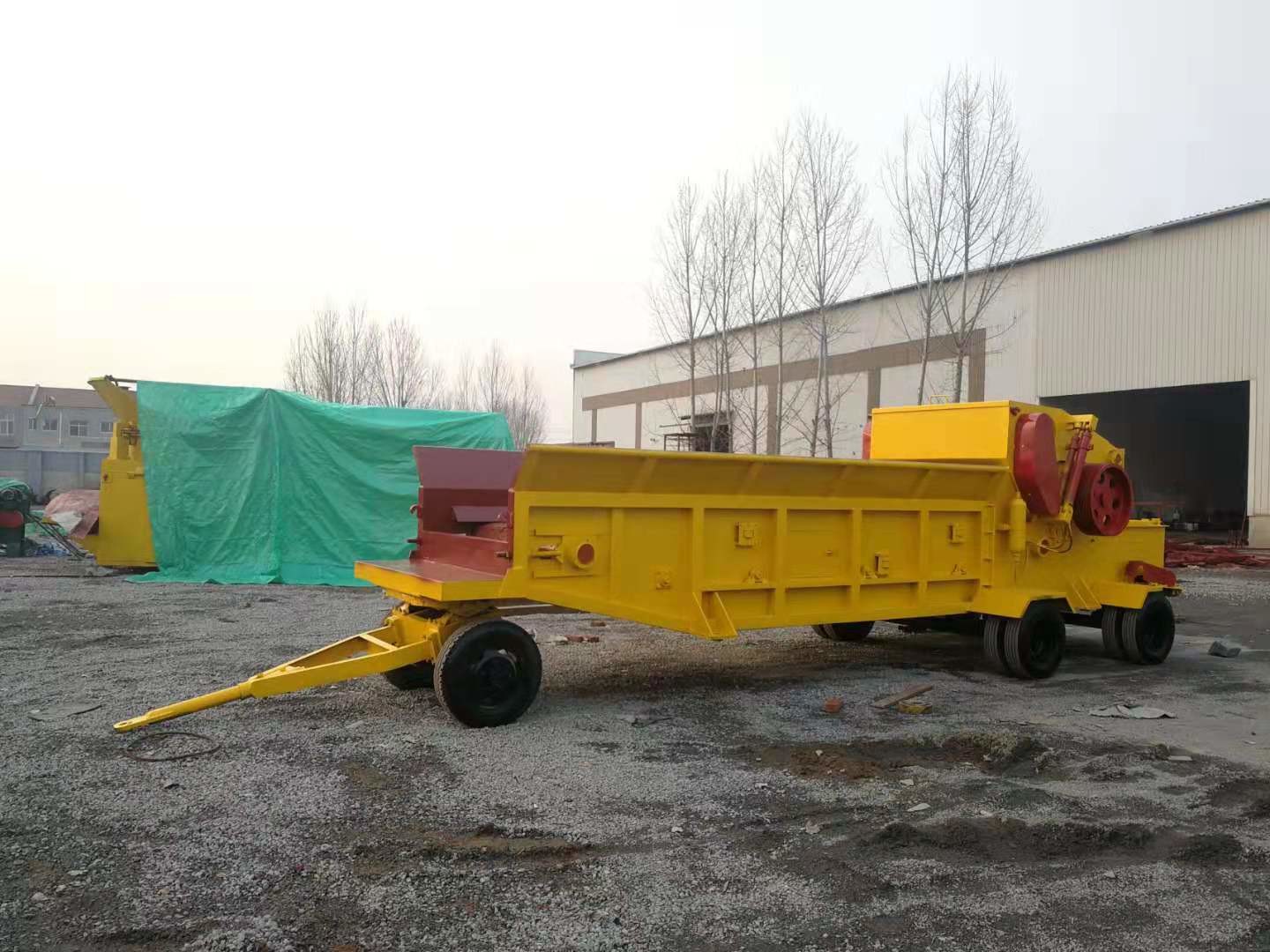

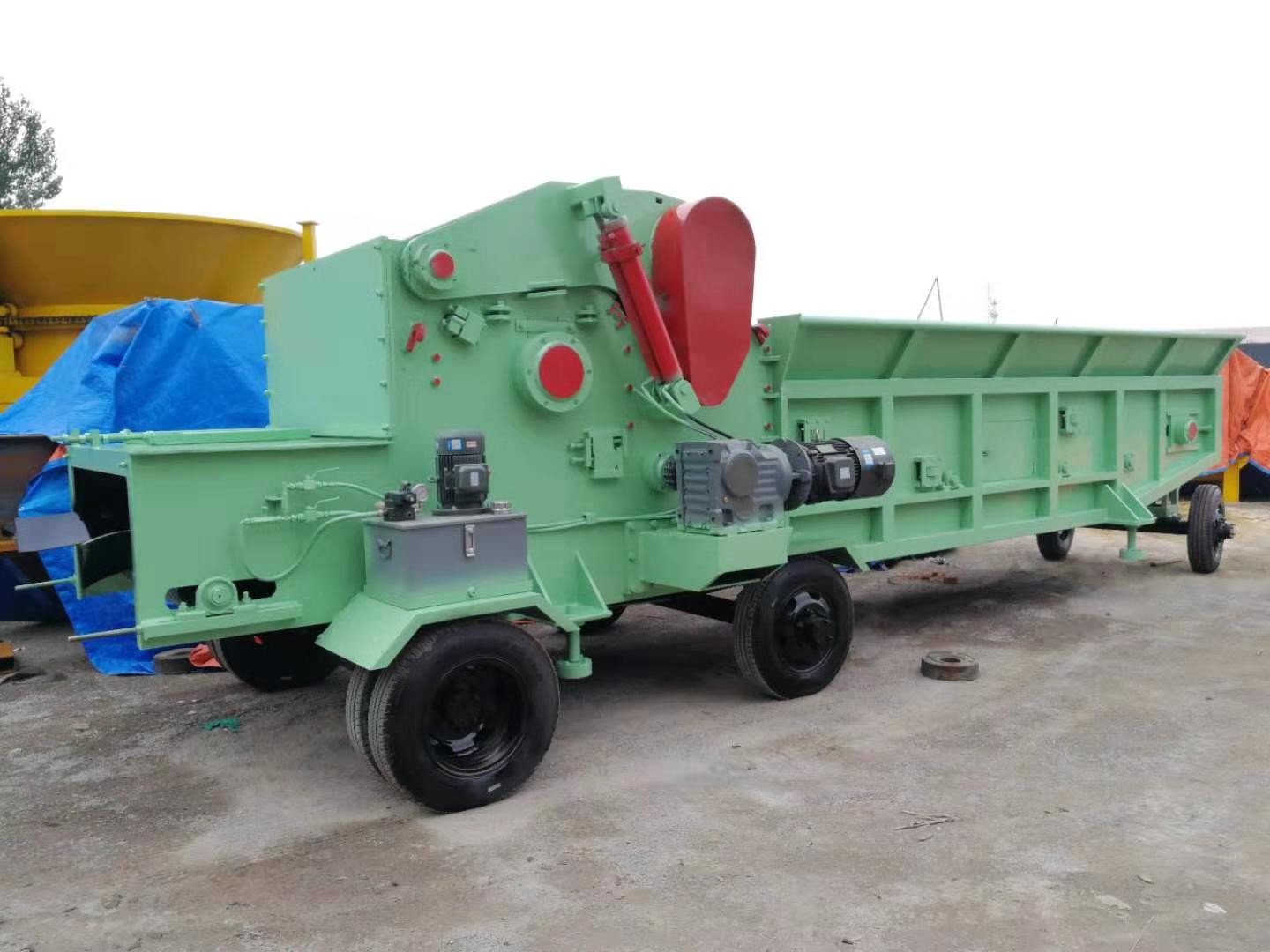

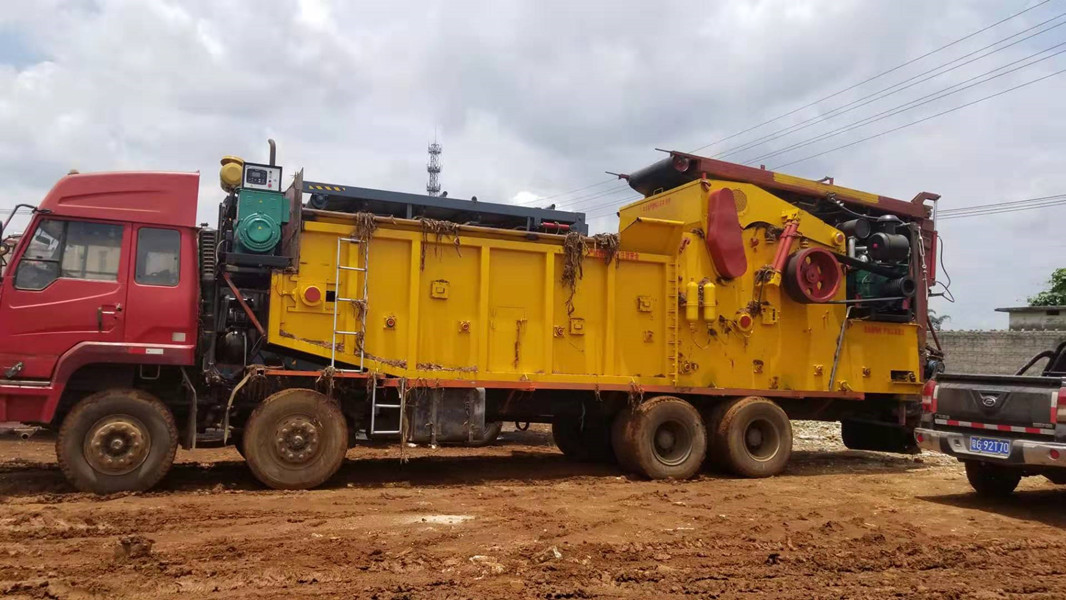

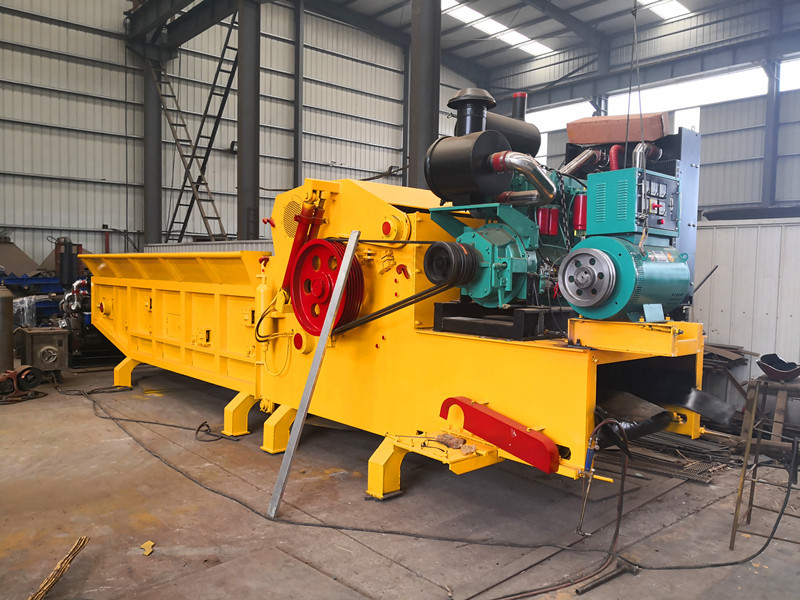

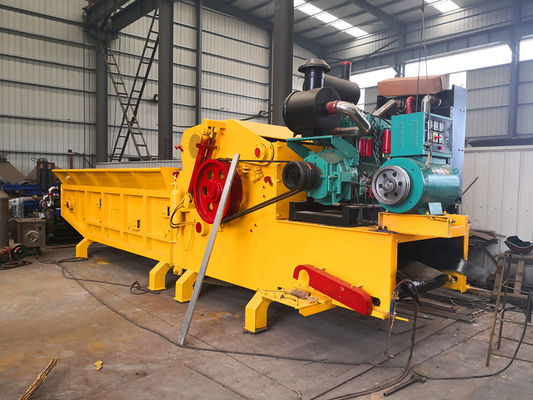

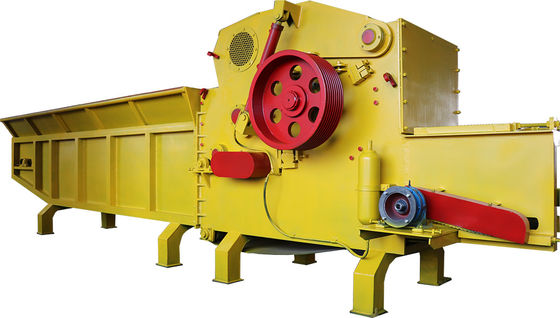

SH1300-600 Series Wood Crusher Machine is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.
Technical Parameter Of Host System Equipment
| Model | SH1300-600 |
| Feeding Inlet | 1300*600MM |
| Blade Roller Diameter | 850MM |
| Blade Roller Speed | 850RPM |
| Capacity | 15-20T/Hour |
| YG8 Hammer Blade Quantity OR Blades | 22 pcs hammers or 2sets blades |
| Max Processing Wood Diameter | 450MM |
| Electric motor power | 160KW |
| Wood Chipper Size | 20-40MM |
| Working Life Of THE Hammer Blades | 4000T-6000T |
Technical Parameter Of Feeding System
| Model | SH1300-600 |
| Slot Chain Plate Feeding Conveyor | 1 Set |
| Feeding Motor Power | 7.5KW+11KW |
| Chain Plate Width | 1260MM |
| Conveyor Length | 6000MM |
| Feeding Speed | 2-18M/Min |
| Chain Material | 16Mn |
| Position Limited Wheel | 5 |
| Gear Box | Hard Teeth Faces |
Technical Parameter Of Discharging System
| Model | SH1300-600 |
| Outlet Conveyor Belt | 1Set |
| First Outlet Motor | 4KW With Gear Box |
| Second Outlet Motor | 5.5KW With Gear Box |
| Conveyor Material | 14-16# Channel/ Square Tube |
| Conveyor Length*Width | 10m*1m |
| Conveyor Material | Nylon 4 Layer |
| Outlet Height | 3800-4500MM |
Intelligent Electronic Control System
| Model | SH1300-600 |
| Large Control Cabinet | Ground |
| Host Start Model | Soft Start |
| Feeding Speed Control Model | Variable Frequency |
| Electrical Control | Control Cabinet + Remote Control |
High Efficiency Hydraulic System
| Model | SH1300-600 |
| Control Model | Solenoid Valve |
| Hydraulic Oil Pump | 3KW |
| Hydraulic Oil Tank | 120L |
