Wood Logs Chips making machine, Disc Chipper production line for paper making

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SHBP1800 ,SHJP1600 ,SH3800

Minimum Order Quantity:	1 SET
Price:	USD53,284-72,000/SET
Packaging Details:	export packings
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight
Supply Ability:	USD53,284-72,000/SET

Get Best Price Contact Now

Detail Information

Name:	Wood Logs Chipping/chipper Prouction Line	Condition:	New
Processing Log Max. Diameter:	300mm	Processing Log Max. Length:	6meters
Chipper Size:	20-35mm	Feeding Inlet Size Of Chipper:	450x450mm,500x500mm
Production Capacity:	25-30ton/hour	Blade Quantity:	6pcs
Main Motor Of Disc Chipper:	90kw To 220KW	Quality Guarantee:	1 Year
After-sales Service:	Video Technical Support, Working Test Before Delivery
Highlight:	wood logs chipper machine , disc chipper for paper making , wood crusher with warranty

Product Description

Wood Logs Chipper/Shredder Production line with capacity 20-25ton/hour

Introduction:

1. Processing log diameter : 50-300mm

2. Processing log max. length :6meters

3. Production capacity : 20-15tons/hour

4. We can also do production line design as customer needs

Specification :

Double Roll Log Debarking Machine
Specification	SHBP12000
Production capacity	15-25t/h
Main motor power	11KW*4
Processing log diameter	50mm-300mmm
Processing log length	1000mm-6000mm
Roll shaft length	6000mm*2
Bark slope conveyor	6000mm

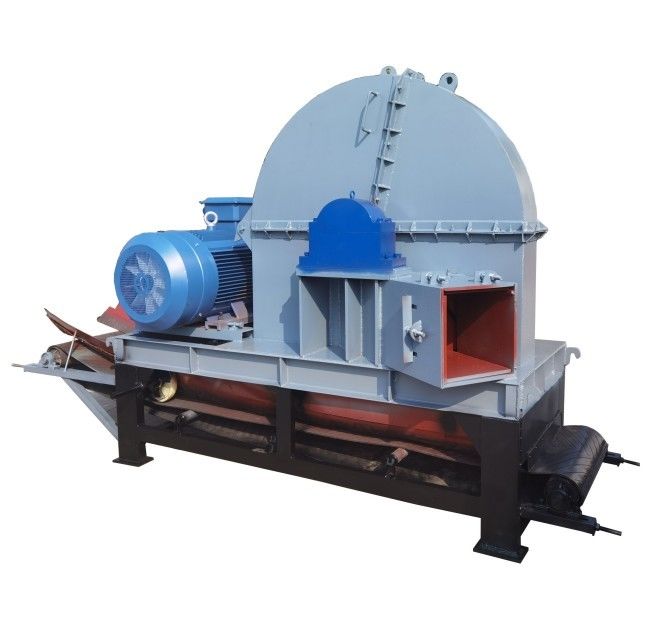

Wood Chipper Machine
Specification	SHJP1600
Feeding inlet size	450*450mm
Knife No.	6片
Main motor power	185kw
Horizontal feed conveyor	8000mm
Slope outfeed conveyor	10000mm
Wood chipper size	20-35mm
Discharging type	down
Production capacity	25-30t/h

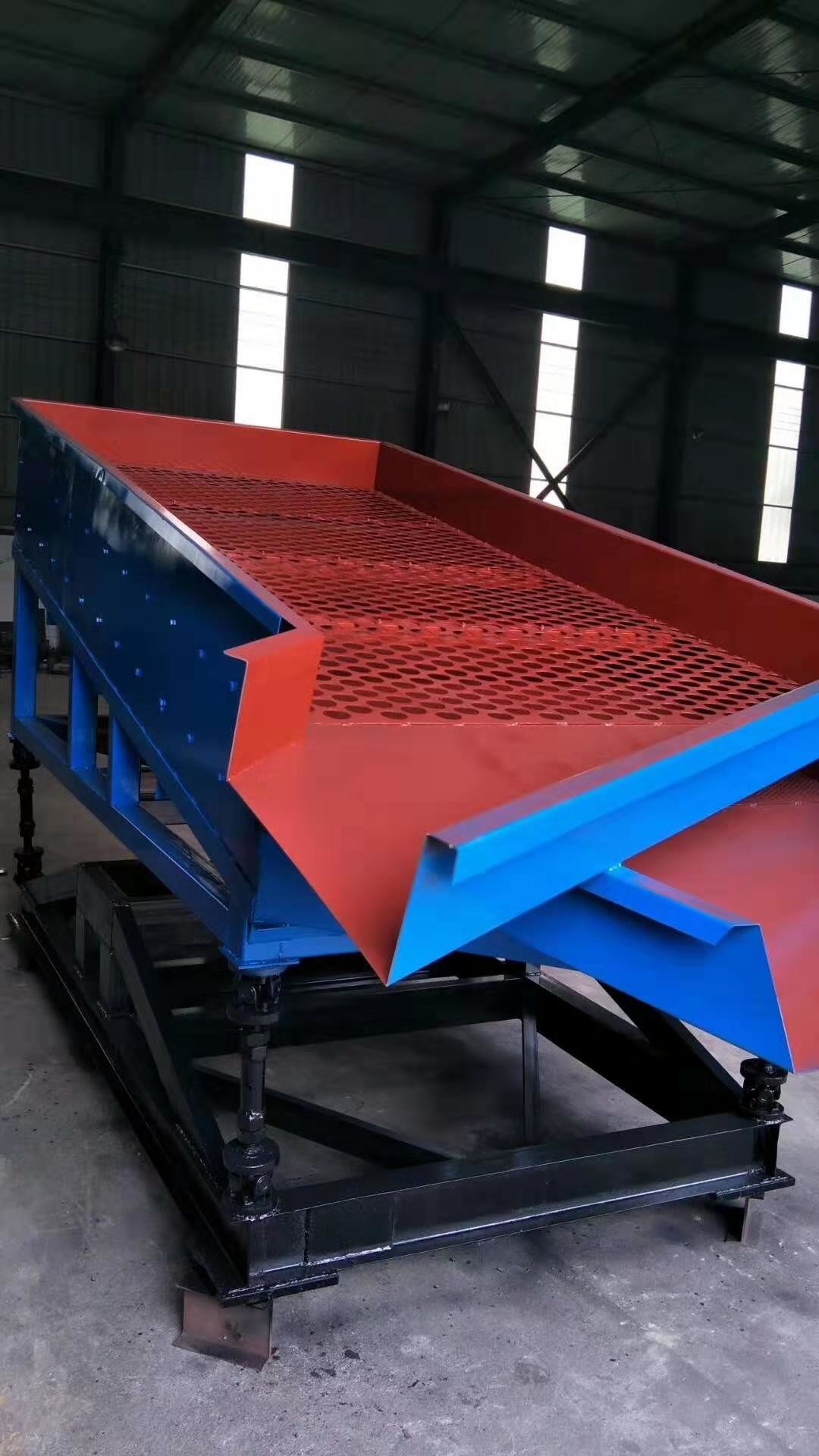

Wood Chipper Screen
Specification	SH3800
Length of wood chipper screen	3800mm
Width of wood chipper screen	1900mm
Shaking screen rotation speed	180r/min
Motor power	5.5kw
Discharging slope conveyor	10000mm
Production capacity	15-20t/h

Wood Logs Chips making machine, Disc Chipper production line for paper making 3

Wood Logs Drum Chipper

Introduction:

1. Processing log diameter : 50-300mm

2. End chips size :20-40mm

3. Production capacity : 7-15tons/hour

4. We can also do production line design as customer needs

Technical Data

Model	SH216	SH218
Feeding Inlet	240*540mm	310*680mm
Rotor Diameter	650mm	800mm
Blade Quantity	2 or 3	2 or 3
Motor Power	55KW	110KW
In Feed Conveyor	6000mm	6000mm
Out Feed Conveyor	10000mm	10000mm
Capacity	7-10T/H	9-13T/H
Weight	4070KG	7500KG

Wood Logs Chips making machine, Disc Chipper production line for paper making 4

Wood Composite Crusher

Model		SH2000-1000	SH1300-600	SH1400-600	SH1600-600
Feeding inlet size		2000x1000mm	1250x600mm	1400x600mm	1600x600mm
Blade roller diameter		1400mm	850mm	850mm	850mm
Blade roller speed		750RPM	850RPM	850RPM	850RPM
Production capacity		70-100ton/H	12-15ton/H	18-20ton/H	25-30ton/H
1	YG8 hammer blade qty	86pcs	20pcs	24pcs	28pcs
2	Blade qty	3groups/9tablets	2groups/4tablets	2groups/4tablets	2groups/4tablets
Max. Processing log diameter		<800mm	450mm	450mm	450mm
Main motor power		450kw	160kw	200kw	250kw
Wood chipper size		3-5cm	2-4cm	2-4cm	2-4cm
Working life of blades		4000T-5000T	4000T-6000T	4000T-6000T	4000T-6000T
Optional : Diesel engine power 400HP is workable Wheels for mobile usage Hydraulic collapsible outlet conveyor Magnetic machine to suck out iron products
