pulverizer wood crusher tree stump grinder tree root crusher wholesale wood crusher making sawdust grinding

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number SH3600-1600
Minimum Order Quantity 1 SET
Price US $18,000 - 32,000 / Set
Packaging Details flat rack container loading
Delivery Time within 25 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Wood Crusher Application Crushing Wood Roots Stump Into Chippers
Condition New Materials Shredder Stump, Roots, Pallets, Straws, Etc Into Chippers
Power(W) 185KW Feeding Inlet Diameter 3600mm
Automatic Grade Automatic Outlet Conveyor Length 12meters
Production Capacity 25-30tons/hour Warranty 1 Year
Weight 18tons
Leave a Message
Product Description

STUMP CRUSHER

1.Indtroduction:

  • Processing Raw Materials : wood roots/stumps,branches, straw, pallets, etc .
  • Feeding inlet diameter :3600mm
  • shaft diameter : 800mm
  • Capacity: 25-30tons/hour
  • blade quantity: 4pcs
  • electric motor :185kw/3phase

2.Specification:

Technical data Model SH3600-1600
Blade shaft size 1600x850mm
Rotor diameter 800mm
Blade quantity 4
Main motor power 185KW
Feeding inlet diameter 3600mm
Out feed conveyor 12meters
Capacity 25-30Ton/Hour
Weight 18000kg



3.Photos:

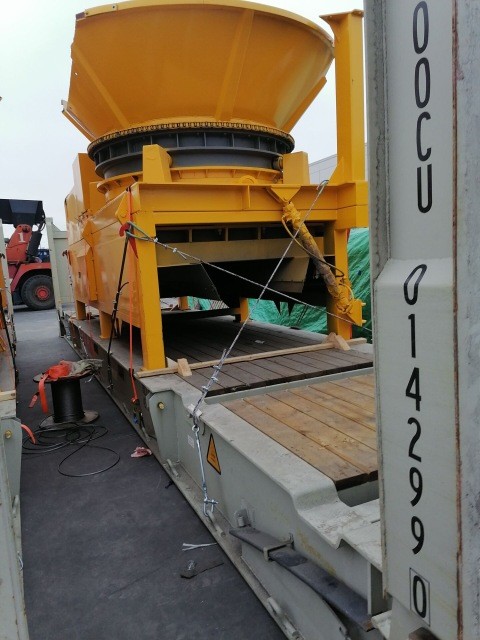

pulverizer wood crusher tree stump grinder tree root crusher wholesale wood crusher making sawdust grinding 0

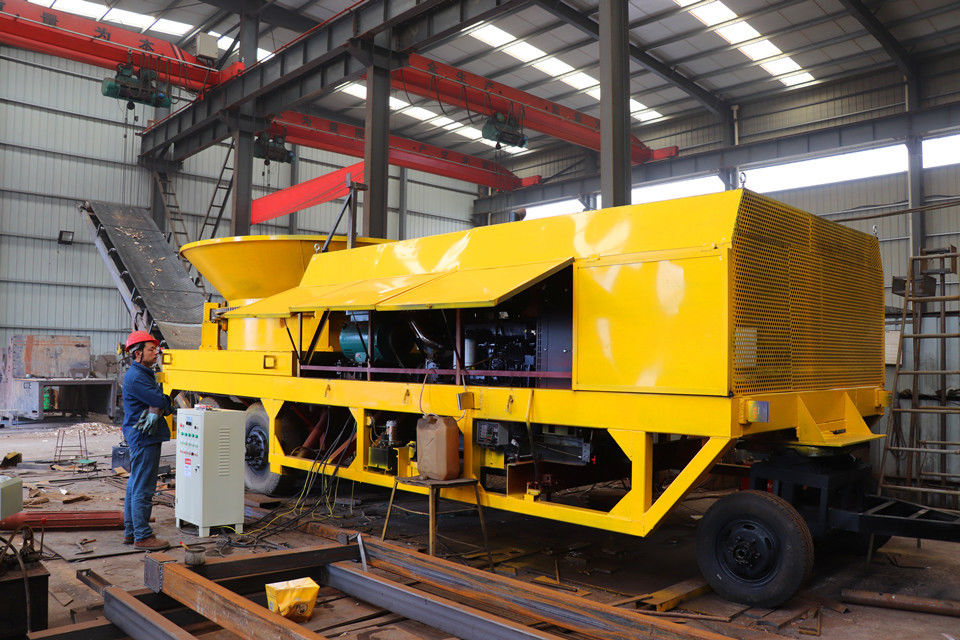

pulverizer wood crusher tree stump grinder tree root crusher wholesale wood crusher making sawdust grinding 1

Optional - Diesel mobile type

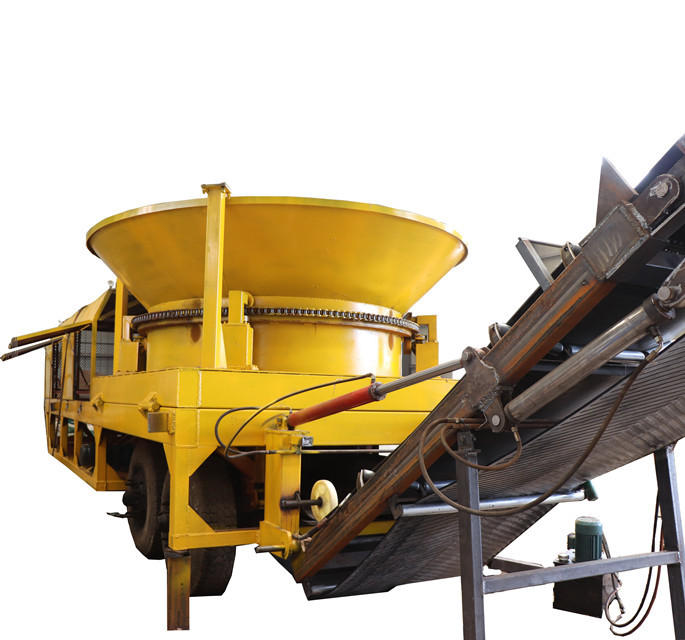

pulverizer wood crusher tree stump grinder tree root crusher wholesale wood crusher making sawdust grinding 2

Optional - screener

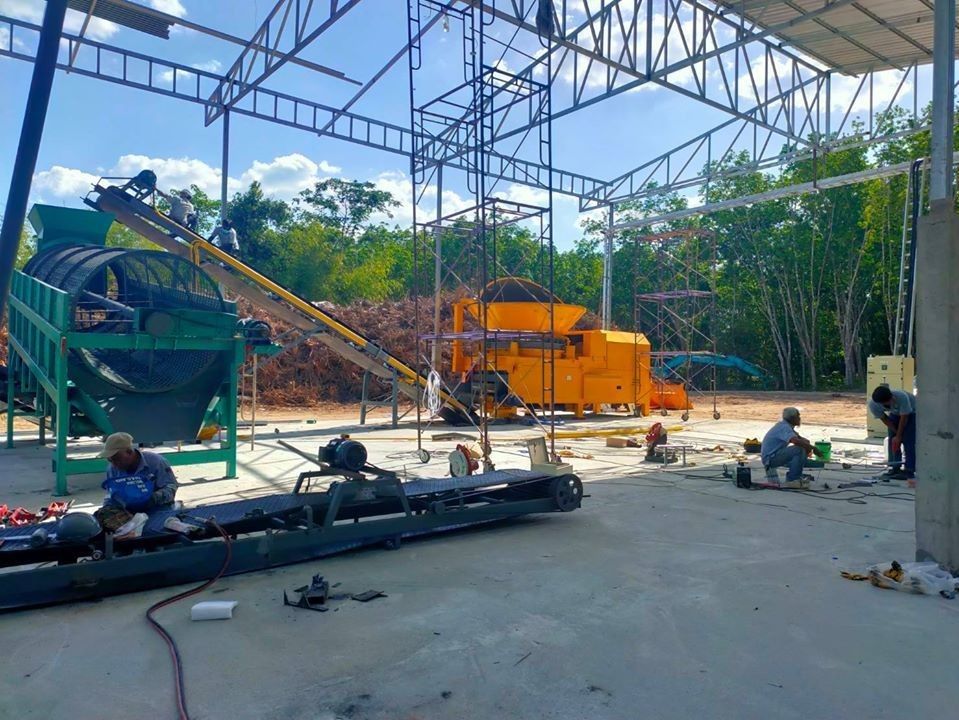

pulverizer wood crusher tree stump grinder tree root crusher wholesale wood crusher making sawdust grinding 3

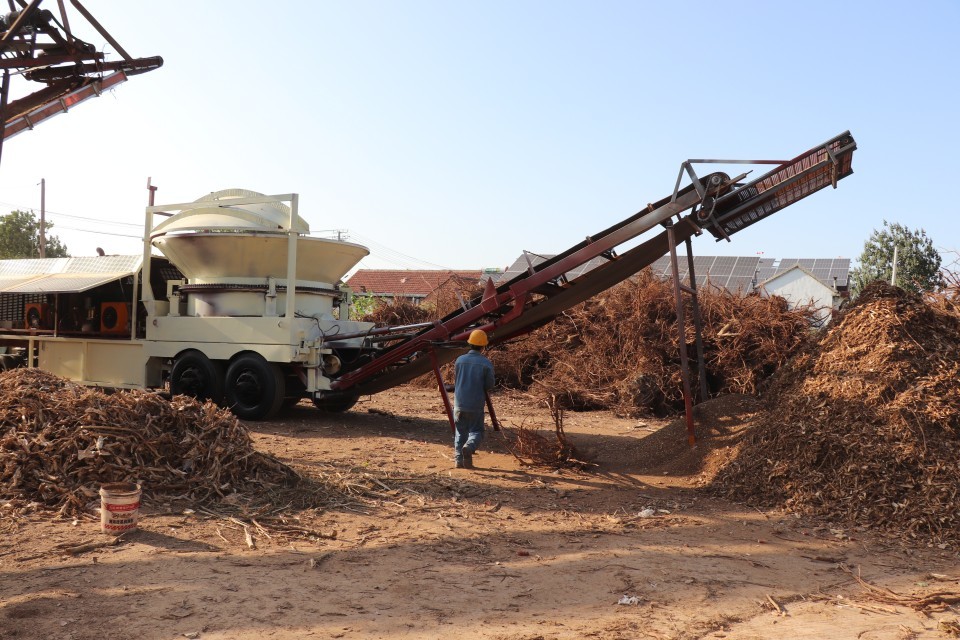

pulverizer wood crusher tree stump grinder tree root crusher wholesale wood crusher making sawdust grinding 4



Wood Composite Crusher Machine

Tehnical data:

Model SH2000-1000 SH1300-600 SH1400-600 SH1600-600
Feeding inlet size 2000x1000mm 1250x600mm 1400x600mm 1600x600mm
Blade roller diameter 1400mm 850mm 850mm 850mm
Blade roller speed 750RPM 850RPM 850RPM 850RPM
Production capacity 70-100ton/H 12-15ton/H 18-20ton/H 25-30ton/H
1 YG8 hammer blade qty 86pcs 20pcs 24pcs 28pcs
2 Blade qty 3groups/9tablets 2groups/4tablets 2groups/4tablets 2groups/4tablets
Max. Processing log diameter <800mm 450mm 450mm 450mm
Main motor power 450kw 160kw 200kw 250kw
Wood chipper size 3-5cm 2-4cm 2-4cm 2-4cm
Working life of blades 4000T-5000T 4000T-6000T 4000T-6000T 4000T-6000T

Optional :

  • Diesel engine power 400HP is workable
  • Wheels for mobile usage
  • Hydraulic collapsible outlet conveyor
  • Magnetic machine for sucking out iron products

Photos:

Electrical type

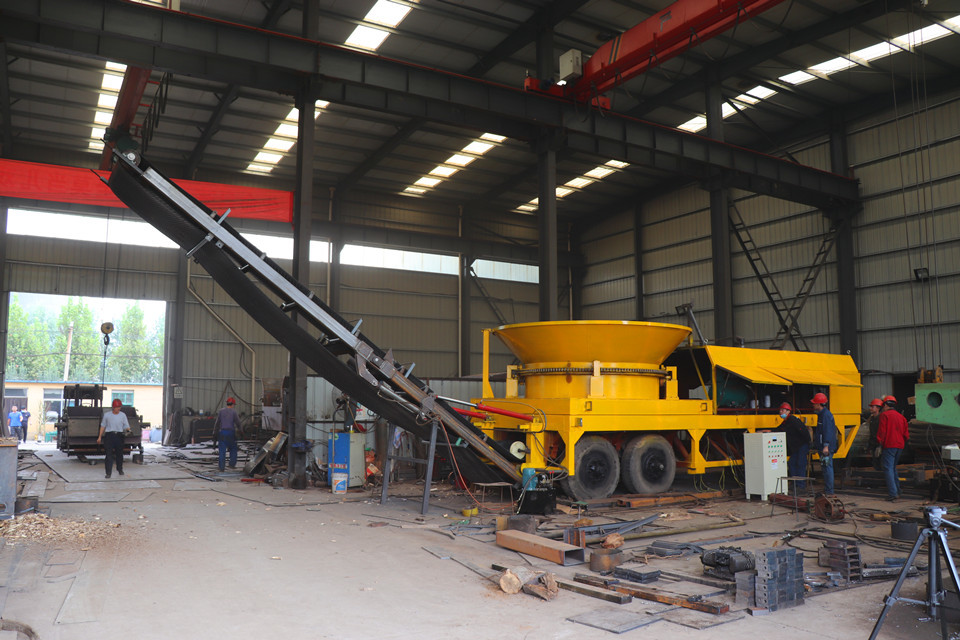

pulverizer wood crusher tree stump grinder tree root crusher wholesale wood crusher making sawdust grinding 5

Diesel engine + generator type

pulverizer wood crusher tree stump grinder tree root crusher wholesale wood crusher making sawdust grinding 6

With wheels for mobile usage

pulverizer wood crusher tree stump grinder tree root crusher wholesale wood crusher making sawdust grinding 7

Wood Sawdust Machine

Technical Data:



Model SHMF1300-700 SHMF1500-800
Feeding inlet size 1300X700mm 1500X800mm
Blade shaft diameter 700mm 800mm
Blade quantity 84pcs 84pcs
Main motor power 132kw 160kw
Production capacity 4-5ton/hour 6-8ton/hour
Feeding system 1set,5.5KW,With strong magnetic machine
Discharging system 1set
Bag dust collection 1 unit(40bags, with Supports and pipes)
Sacron Cyclone Dust Collector 1unit(1200MM dia., with Supports and pipes)
With Soft start inverter integrated control cabinet



pulverizer wood crusher tree stump grinder tree root crusher wholesale wood crusher making sawdust grinding 8pulverizer wood crusher tree stump grinder tree root crusher wholesale wood crusher making sawdust grinding 9
