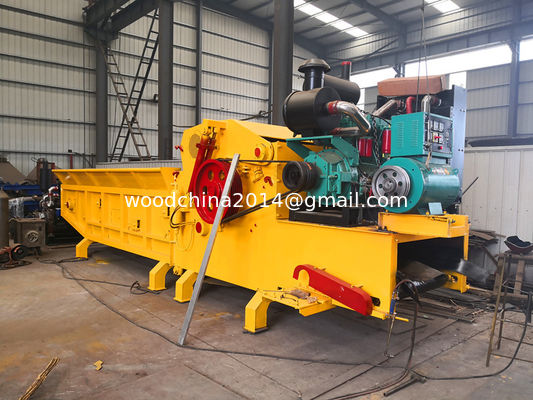

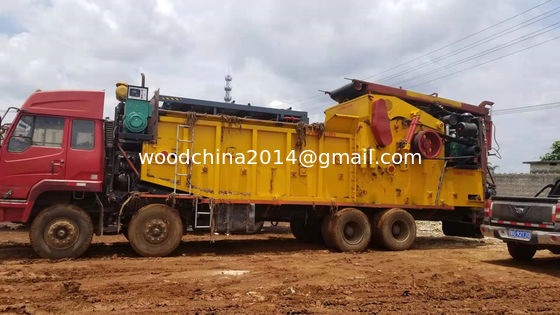

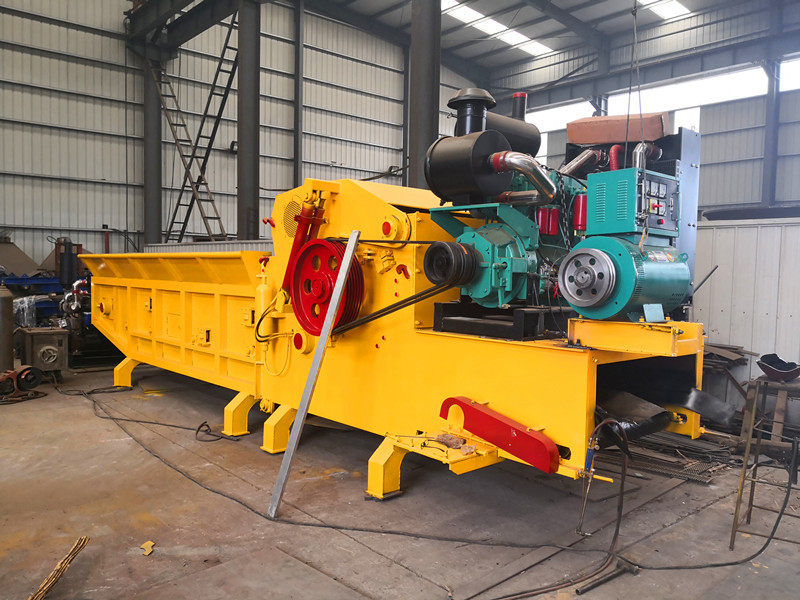

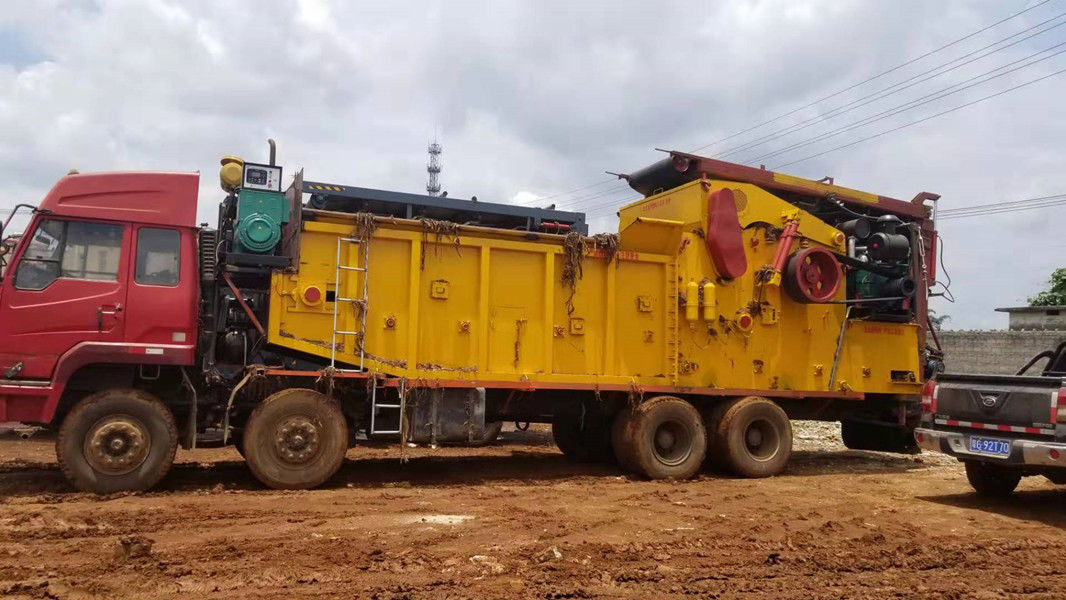

Diesel Wood Chipper Shredder Machine For Malaysia/Mobile Hardwood Crusher with 400HP engine

Diesel Wood Chipper Shredder Machine For Malaysia/Mobile Hardwood Crusher with 400HP engine

    • Diesel Wood Chipper Shredder Machine For Malaysia/Mobile Hardwood Crusher with 400HP engine
    • Diesel Wood Chipper Shredder Machine For Malaysia/Mobile Hardwood Crusher with 400HP engine
    • Diesel Wood Chipper Shredder Machine For Malaysia/Mobile Hardwood Crusher with 400HP engine
    • Diesel Wood Chipper Shredder Machine For Malaysia/Mobile Hardwood Crusher with 400HP engine
    • Diesel Wood Chipper Shredder Machine For Malaysia/Mobile Hardwood Crusher with 400HP engine
    • Diesel Wood Chipper Shredder Machine For Malaysia/Mobile Hardwood Crusher with 400HP engine
  • Diesel Wood Chipper Shredder Machine For Malaysia/Mobile Hardwood Crusher with 400HP engine

    Product Details:

    Place of Origin: shandong province, China
    Brand Name: SH
    Certification: ISO9001
    Model Number: SH1600-600, SH1400-600, SH1300-600, SH800-500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD18,000-49,000/SET
    Packaging Details: container loading
    Delivery Time: within 25 days
    Payment Terms: T/T, Western Union
    Supply Ability: 500sets/year
    Contact Now
    Detailed Product Description
    Condition: New Blade Roll Diameter: 850mm Or 1000mm
    Chipper Size: 20-40mm Capacity: 12-30tons/hour
    Processing Log Max. Diameter: 450mm Operation: Automatic
    Diesel Engine: 400HP Outlet Conveyor: 10meters

    SH1300-600 Series Wood Crusher Machine

    • is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on.
    • It can work together with the baler breaker.

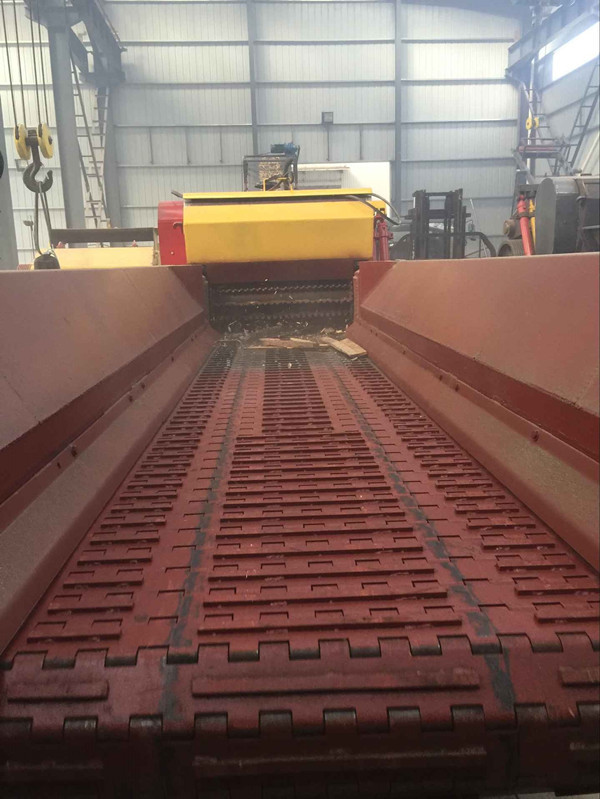

    • This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time.
    • It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.

    Configuration:

    • Diesel engine power: 400HP+50kw alternator
    • Capacity: 12-30tons/hour
    • Blade roll diameter : 850mm
    • Wood chipper size: 20-40mm
    • Specifications:
    型号 Model SH1300-600
    进料口尺寸 Feeding Inlet 1250*600MM
    刀辊直径 Blade Roller Diameter 850MM
    刀辊转速 Blade Roller Speed 850RPM
    产量 Capacity 12-15T/Hour
    飞刀 BLADES 2sets/4pcs
    最大加工木材直径 Max Processing Wood Diameter 450MM
    电机功率 Main Diesel Engine Power 400HP+50KW alternator
    木片尺寸 Wood Chipper Size 2-4CM
    刀片寿命 Working Life Of THE Hammer Blades 4000T-6000T
    喂料电机功率 Feeding motor power 7.5kw +11kw
    进料链板宽度 Feeding chain plate width 1260mm
    进料链板长度 Feeding chain plate length 6meters
    出料电机功率 Outlet electric motor 5.5kw x 2 sets
    出料传送带 Outlet conveyor length x width 10m x 1meter
    出料高度 Outlet height 3800-4500mm
    主机启动方式 Host Start Model Soft start
    控制方式 Control system Control Cabinet + Remote Control
    Electrical Motor type machine is workable













































































    Photos:

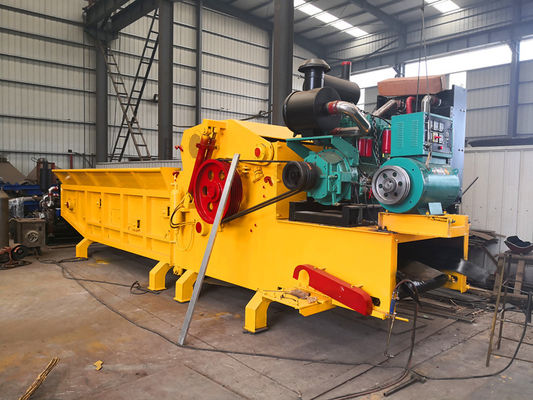

    Diesel Wood Chipper Shredder Machine For Malaysia/Mobile Hardwood Crusher with 400HP engineDiesel Wood Chipper Shredder Machine For Malaysia/Mobile Hardwood Crusher with 400HP engineDiesel Wood Chipper Shredder Machine For Malaysia/Mobile Hardwood Crusher with 400HP engine
