Center Wheel Design Wood Saw Machines Hydraulic Automatic Horizontal Band Sawmill

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	MJH1000D, MJH1300P

Minimum Order Quantity:	1 SET
Price:	USD16,000-25,900/SET
Packaging Details:	container loading
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	500Sets /year

Get Best Price Contact Now

Detail Information

Name:	Portable Band Saw,Wood Band Saw,Band Saw Machine	Condition:	New
Type:	Band Saw	Usage:	Wood Cutting
Max. Sawing Log Diameter:	1000mm	Max. Sawing Log Length:	4.5m Or 6meters
After-sales Service Provided:	Online Support,Free Spare Parts,Video Technical Support	Diesel Power:	22HP
Key Selling Points:	Competitive Price,Automatic,Energy Saving,High Productivity,Easy To Operate	Warranty:	12 Month
Highlight:	Automatic Wood Saw Machines 1000mm , Center Wheel Design Horizontal Band Sawmill , Hydraulic Horizontal Band Sawmill

Product Description

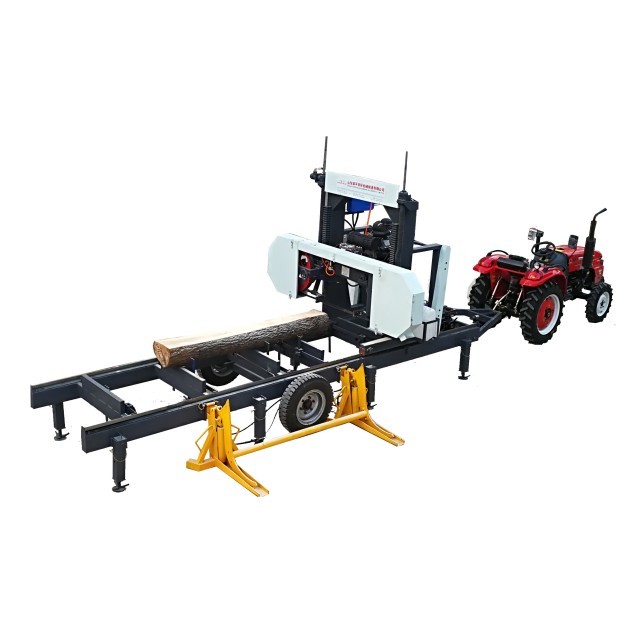

Hydraulic Portable sawmill, Diesel power, Full Hydraulic to Cut 36 round log 20 ft. long

Hydraulic Horizontal Band Sawmill (Petrol/Diesel Engine type )

Standard Configuration
	Hydraulic Log Loading Arm *1			Hydraulic Clamp *1 Secure and stabilize the log
	Hydraulic Wood Clamp*4 Secure and stabilize the log			Hydraulic vertical side supports *4 Secure and stabilize the log
	Mobile Wheels, 8 Adjustable Up/down legs			Board automatic return hook
Optional parts:
		Touch Screen Accuset Setworks Automatically moves head for each cut and head walking speed is Frequency variable	Hydraulic bi-directional Chain log turner*2 For max. log control
		Hydraulic wood adjuster x1	Extend The Rail Length

Center Wheel Design Wood Saw Machines Hydraulic Automatic Horizontal Band Sawmill 9

Center Wheel Design Wood Saw Machines Hydraulic Automatic Horizontal Band Sawmill 10

Hydraulic Horizontal Band Sawmill

型号	Model	SW1000P
锯割木材直径	Max Sawing Wood Diameter	1000mm
锯轮直径	Saw Wheel Diameter	700mm
最大锯割木材厚度	Max Sawing Wood Thickness	350mm
锯割木材长度(标准)	Standard Sawing Wood Length	4500mm
功率	Engine Power	35HP petrol engine or 22HP diesel engine
锯头(升/降)	Up/Down	Electrial
行走方式(前进/倒退)	Forward/Backward	Inverter
锯条宽度范围	Saw Blade width	50-80mm
1,木材上料装置	Hydraulic Log Loading Arms	1
2,液压翻转夹紧顶装置	Hydraulic Rotation Clamping	2
3,10个支架腿+轮胎4个	10pcs legs + tryes 4pcs	1
4,设定锯割尺寸	Sawn sizes setting	touching screen +PLC
5,液压链式翻滚装置	Hydraulic Chain Rotation	2
6,液压档木立桩	Hydraulic lot stop pole	4
机床长度	Machine Length	5800mm
重量	Weight	2800kg

Hydraulic Chain Rotation
Center Wheel Design Wood Saw Machines Hydraulic Automatic Horizontal Band Sawmill 11

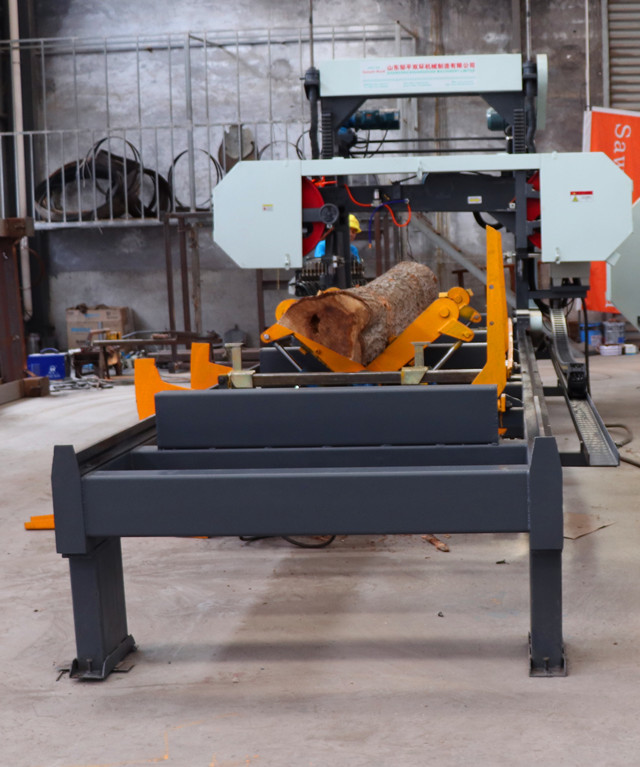

Hydraulic Rotation Clamping
