Name: Fully Automatic Horizontal Hydraulic Band Saw Machine For 1000mm Wood
Brand: Weifang Jiuyi Information technology co., LTD
SKU: SW40E, SW40P
Price: 17.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Hydraulic Portable Sawmill

Diameter Of Flywheels: 720mm

Saw Walking: Inverter Speed Adjustable

Max. Sawing Log Diameter: 1000mm

Sawing Log Length: 6000mm

Style: Horizontal Band Saw

Bandsaw Blade Width: 40-80mm

Productivity: Up To 60 M3/8h

Motor Power: 27 HP, 35HP

Operation: PLC Touching Screen Auto Setworks

Applicable Industries: Manufacturing Plant

Highlight:

Horizontal Hydraulics Bandsaw Machine

Fully Automatic Hydraulic Bandsaw Machine

1000mm Hydraulic Bandsaw Machine

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001,CE

Model Number: SW40E, SW40P

Payment & Shipping Terms

Packaging Details: luo packing of Hydraulic Portable Sawmill

Delivery Time: within 30 days

Payment Terms: T/T, Western Union

Supply Ability: 500sets/year of Hydraulic Portable Sawmill

Gallery

Fully Automatic Horizontal Hydraulic Band Saw Machine For 1000mm Wood

Product Description

Hydraulic Portable Sawmill

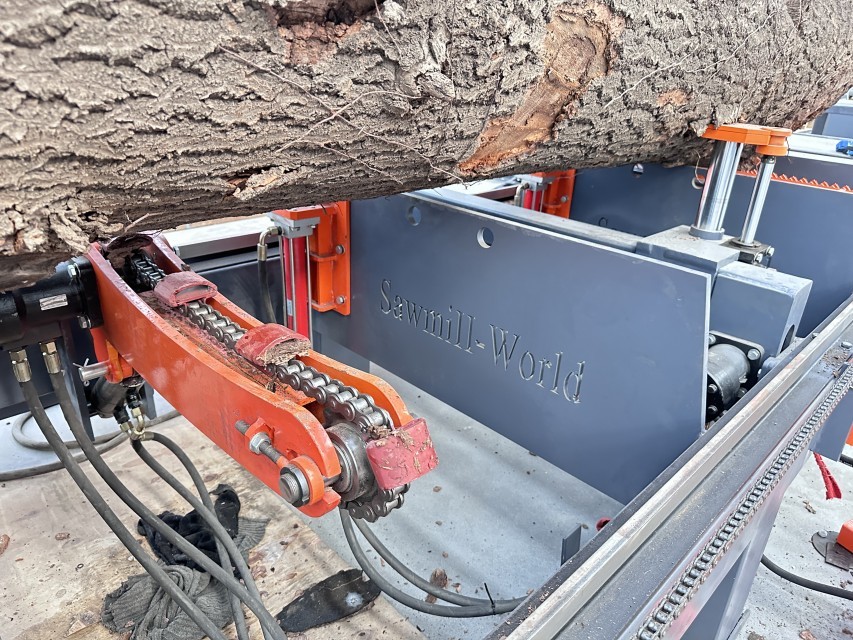

Hydraulic loading arm for automatic loading log onto the rail bed

Hydraulic chain rotatiaon for automatically rotates the logs

Hydraulic log stop pole prevents wood from falling when loading or flipping

Automatic return hook pushes wood boards back when the saw head returns

The touch screen uses Taiwan Weinview technologyandthe PLC uses Taiwan FATEK technology,to guarantee quality

Model	SW40E
Max Sawing Wood Diameter	100mm(40")
Saw Wheel Diameter	720mm
Max Sawing Wood Thickness	300mm
Standard Sawing Wood Length	22feet
Engine Power	22KW Electric motor
Up/Down	Electric ,1.1kw
Forward/Backward	inverter ,1.1kw
Saw Blade Thickness	60mm
Hydraulic Log Loading Arms	1
Hydraulic Rotation Clamping	2
legs	8
Setting sawn sizes	Touching screen+PLC
Hydraulic Chain Rotation	1
Hydraulic log stop pole	4
Hydraulic board moving roller	1
Hydraulic wood adjuster	1
Hydraulic pump station	1set, 5.5kw
Machine Length	9000mm
Weight	2800kg

Detailed Images

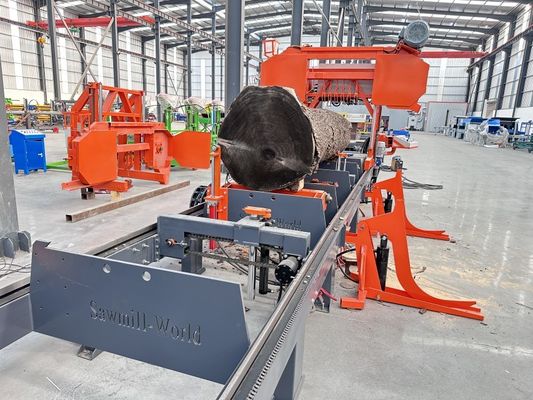

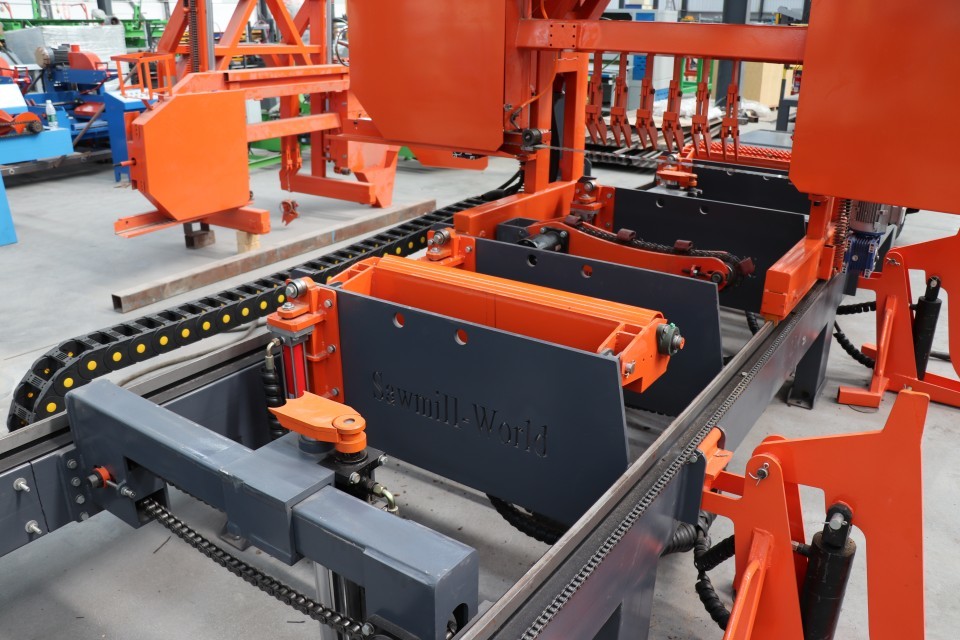

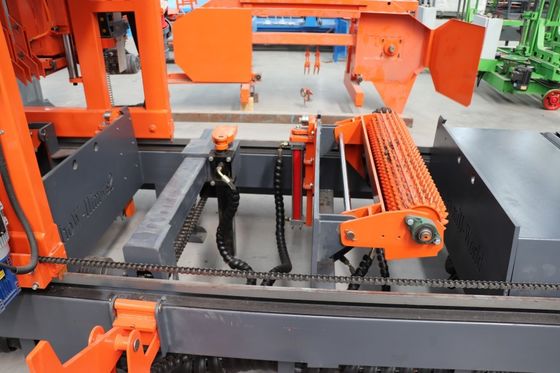

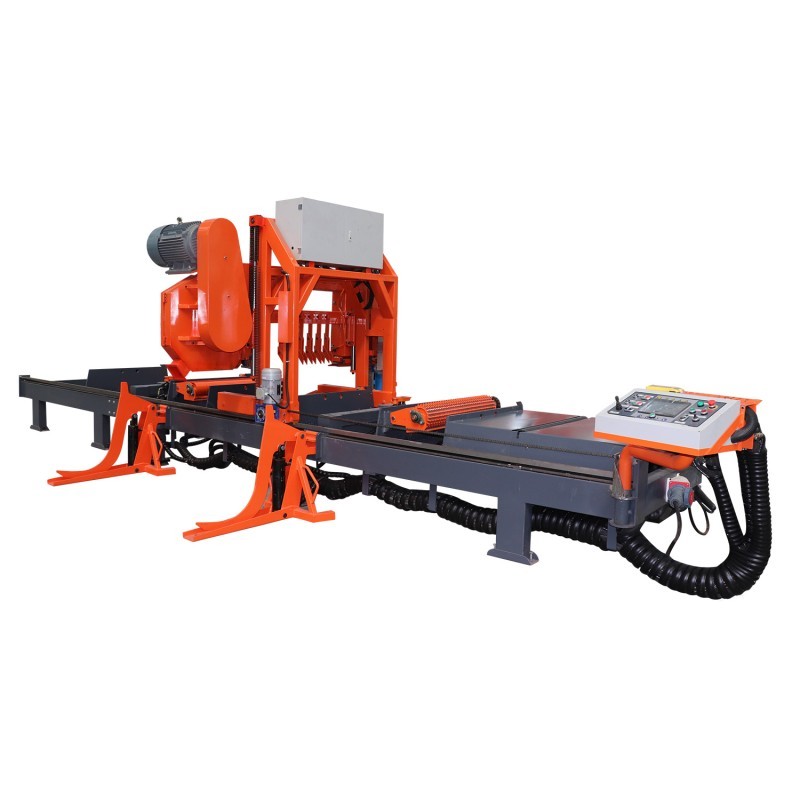

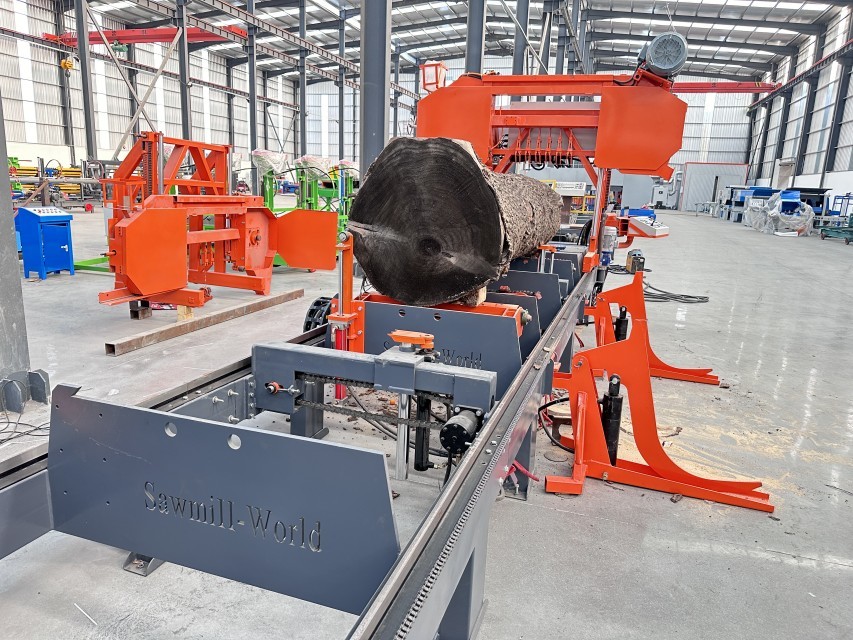

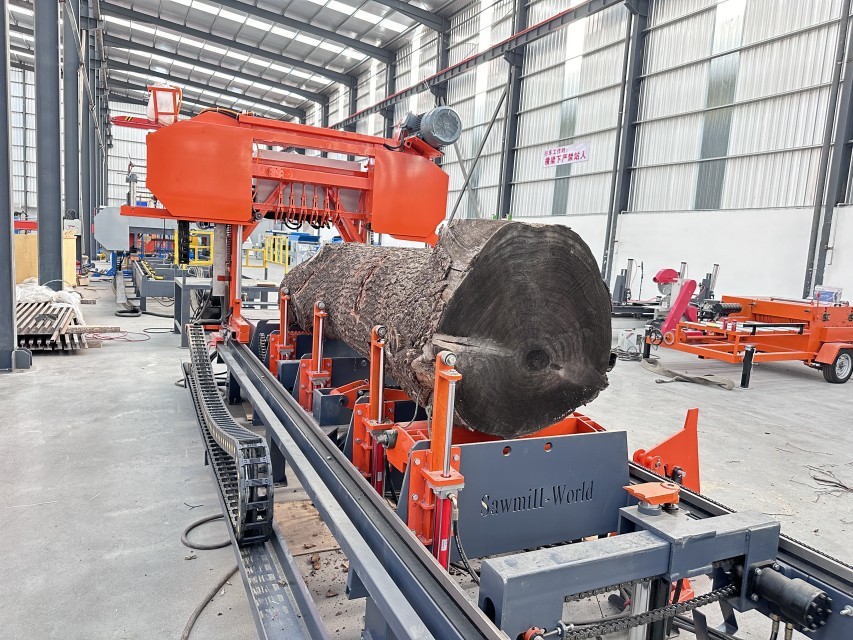

Fully Automatic Horizontal Hydraulic Band Saw Machine For 1000mm Wood 0

Fully Automatic Horizontal Hydraulic Band Saw Machine For 1000mm Wood 1

Fully Automatic Horizontal Hydraulic Band Saw Machine For 1000mm Wood

Horizontal Hydraulics Bandsaw Machine

Fully Automatic Hydraulic Bandsaw Machine

1000mm Hydraulic Bandsaw Machine

electrical portable sawmill

automatic sawmill machine

horizontal band saw for wood

Hydraulic Bandsaw Machine Hydraulic Portable Sawmill Wood Cutting Band Saw Machine

Industrial Hydraulic Bandsaw Mill For 1300mm 1500mm Log Sawing

1500mm Large Sawmill Hydraulic Bandsaw Machine Horizontal Wood Band Saw Mill

MJH1200E Automatic Horizontal Portable Sawmill ,Hydraulics Log Cutting Band Saw

MJH1000 Hydraulic Bandsaw Machine Wood Band Sawmill, log cutting band saw portable sawmill used

22HP Hydraulic Portable Sawmill 4.5m 6m Sawing Log Length

4500mm Length Portable Sawmill Bandsaw Horizontal Wood Saw Automatic

Woodworking Hydraulic Bandsaw Machine Log Cutting Band Sawmill Wood Saw Machine

Model	SW40P
Max Sawing Wood Diameter	100mm(40")
Saw Wheel Diameter	720mm
Max Sawing Wood Thickness	300mm
Standard Sawing Wood Length	6000mm
Engine Power	35HP Petrol engine
Up/Down	Electric
Forward/Backward	inverter
Saw Blade Thickness	60mm
Hydraulic Log Loading Arms	1
Hydraulic Rotation	2
legs	8
Setting sawn sizes	Touching screen+PLC
Hydraulic Chain Rotation	1
Hydraulic log stop pole	4
Hydraulic board moving roller	1
Hydraulic wood adjuster	1
Hydraulic pump station	1
Wheels for mobile usage	1
Machine Length	8000mm
Weight	2800kg
