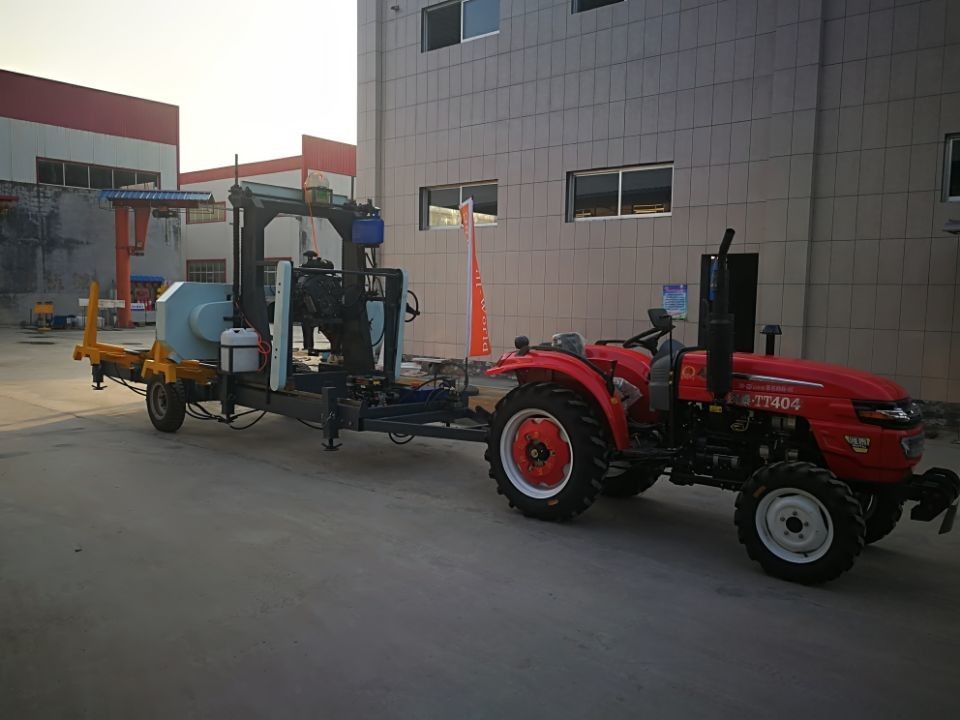

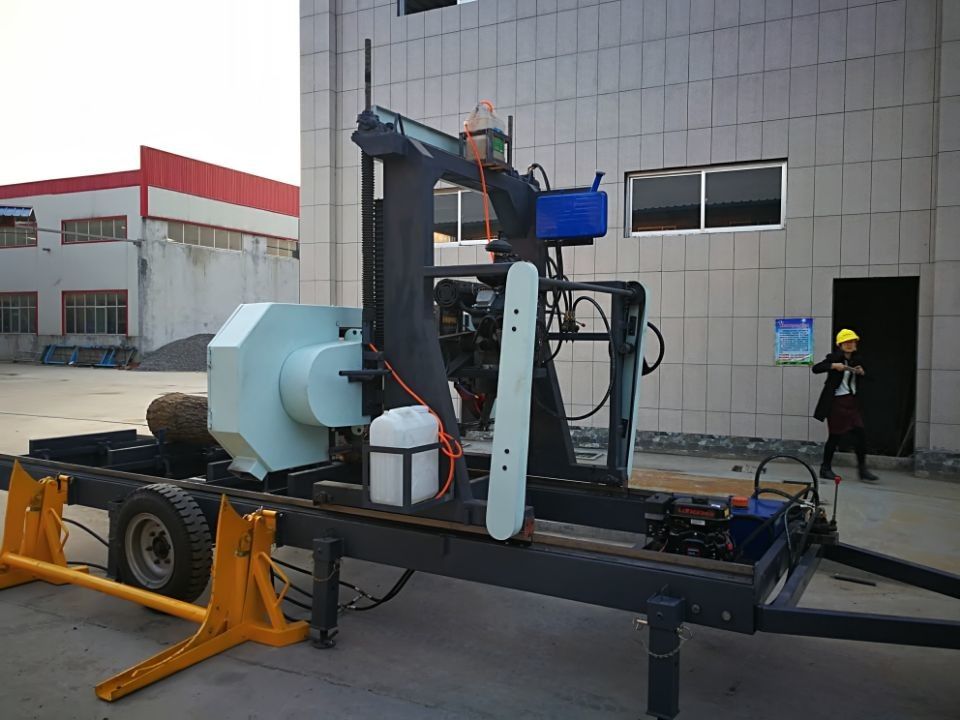

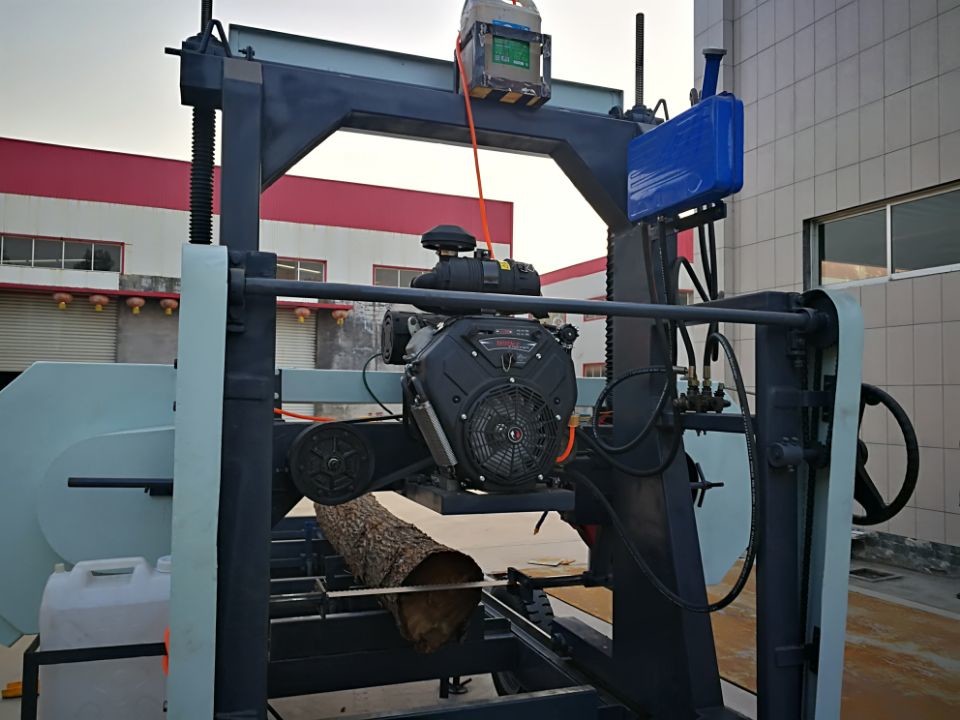

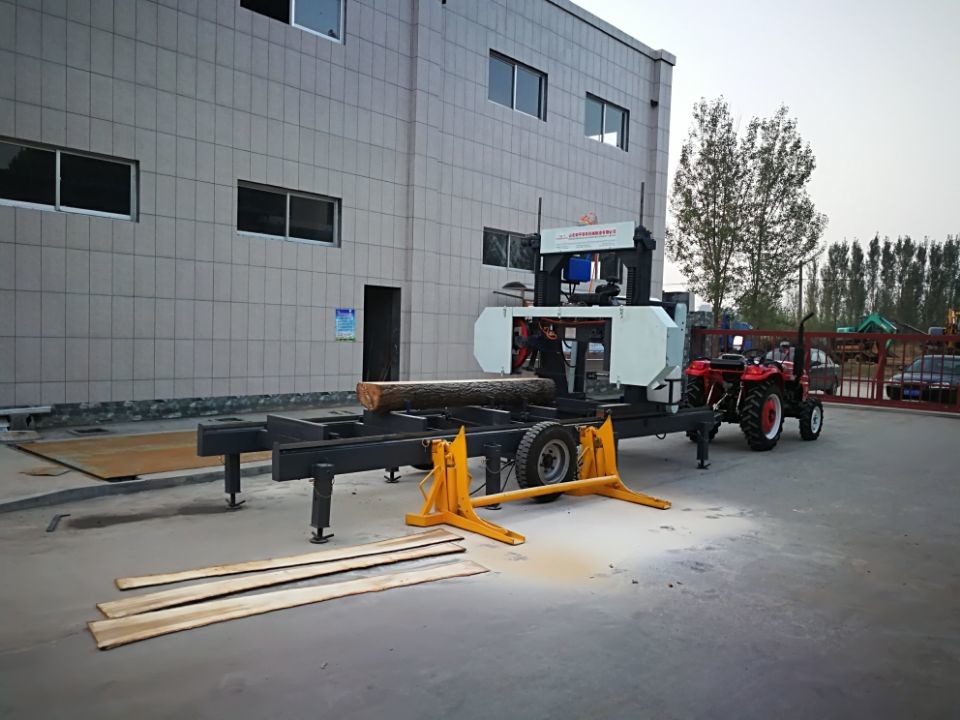

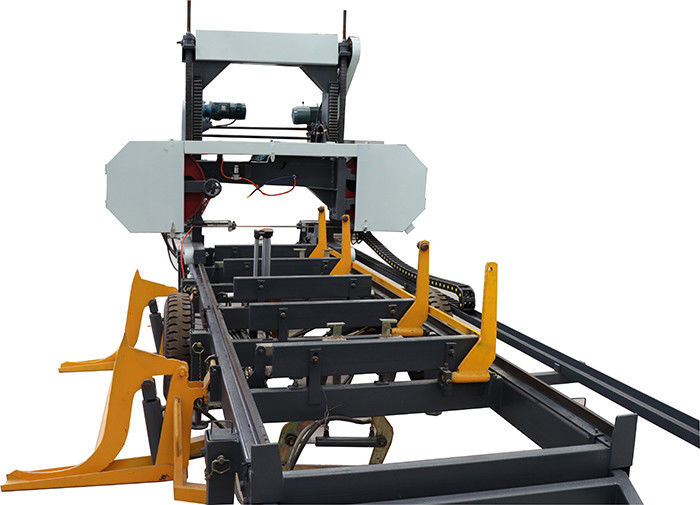

Hydraulic Horizontal Band Sawmill (Petrol/Diesel Engine type )
1.The sawmill is with hydraulic log loading arm.
2. The sawmill is with hydraulic rotation clamping .
3. The sawmill is with hydraulic wood clamp.
4. The sawmill is with mobile wheel for mobile usage .
Specifications:
| Model | MJH1000D | MJH1300P |
| Max Sawing Wood Diameter | 1000mm | 1300mm |
| Saw Wheel Diameter | 700mm | 700mm |
| Max Sawing Wood Thickness | 300mm | 300mm |
| Standard Sawing Wood Length | 4000mm | 4000mm |
| Motor Power | 22HP Diesel 2-Cylinder | 35HP Petrol 2-Cylinder |
| Saw Blade Width | 27mm-75mm | 27mm-75mm |
| Saw head up/down | Hydraulic | Hydraulic |
| Machine Length | 5800mm | 5800mm |
| Weight | 2500kg | 2500kg |
| Standard Configuration | ||||||
 |
Hydraulic Log Loading Arm *1 |
|
Hydraulic Clamp *1 Secure and stabilize the log |
|||
|
Hydraulic Wood Clamp*4 Secure and stabilize the log |
|
Hydraulic vertical side supports *4 Secure and stabilize the log |
|||
|
Mobile Wheels, 8 Adjustable Up/down legs |
|
Board automatic return hook | |||
| Optional parts: | ||||||
|
Touch Screen Accuset Setworks Automatically moves head for each cut and head walking speed is Frequency variable |
|
Hydraulic bi-directional Chain log turner*2 For max. log control |
|||
| Hydraulic wood adjuster x1 | |
Extend The Rail Length | ||||
