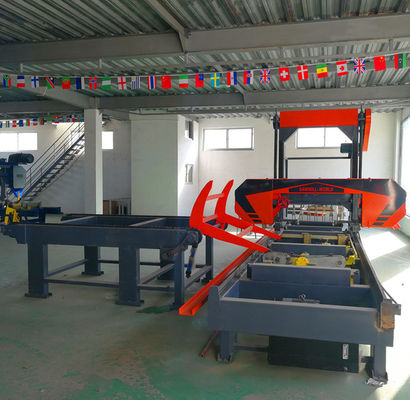

MJH1000 Hydraulic Bandsaw Machine Wood Band Sawmill, log cutting band saw portable sawmill used
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | MJH700A, MJH1000A,MJH1300A |
| Minimum Order Quantity | 1 SET |
| Price | US $15,900 - 24,700 / Set |
| Packaging Details | container loading |
| Delivery Time | within 20 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 1000 Set/ per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hydraulic Band Sawmill | Type | Band Saw |
|---|---|---|---|
| Style | Horizontal | Power(W) | 22 Kw, 30 Kw |
| Voltage | 380v/3phase/50HZ Or As Customer Needs | Cut Max. Wood Diameter | 700mm - 1000mm |
| Saw Wheel Diameter | 700mm | Operation | PLC Touching Screen |
| Warranty | 12 Month | After-sales Service Provided | Engineer Available To Service Machine Overseas |
| High Light | MJH1000 Hydraulic Bandsaw Machine,700mm Wood Band Saw Machine,MJH1000 Wood Band Saw Machine |
||
Product Description
MJH1000 Hydraulic Automatic Horizontal Portable Wood Band Saw Machine
Hydraulic Automatic Horizontal Band Sawmill
- Combined with hydraulic automation technology, the hydraulic automatic horizontal band sawmill realizes all digital intelligent control.
- Chinese and English operating systems, automatic wood rotation, sawing and cutting of large diameter wood, simple operation, precise cutting thickness to improve wood usage rate .
Technical Specifications:
| Model | MJH1000A | MJH700A |
| Max Sawing Wood Diameter | 1000mm | 700mm |
| Saw Wheel Diameter | 700mm | 700mm |
| Max Sawn Thickness | 300mm | 300mm |
| Standard Sawing Wood Length | 4.5 meters | 4.5meters |
| Main Motor Power | 22kw | 18.5KW |
| Hydraulic motor power | 4kw | 3kw |
| Saw Blade Width | 40mm-80mm | 40mm-80mm |
| Machine Length | 6000mm | 6000mm |
| Weight | 3500kg | 3000kg |
Hydraulic Horizontal Band Sawmill(Electric Model)
| 型 号 | Model | MJH1300E |
| 锯割木材直径 | Max Sawing Wood Diameter | 1300mm |
| 锯轮直径 | Saw Wheel Diameter | 700mm |
| 最大锯割木材厚度 | Max Sawing Wood Thickness | 300mm |
| 锯割木材长度(标准) | Standard Sawing Wood Length | 4000mm |
| 电机功率 | Electric Motor Power | 30kw |
| 升降电机 | Up/Down Electric Motor | 1.5kw |
| 行走电机 | Forward/backward Electric Motor | 2.2kw |
| 锯条宽度范围 | Saw Blade Width | 27mm-75mm |
| 涨紧锯条 | Blade Tension | 液压 Hydraulic |
| 机床长度 | Machine Length | 5800mm |
| 重量 | Weight | 2500kg |
