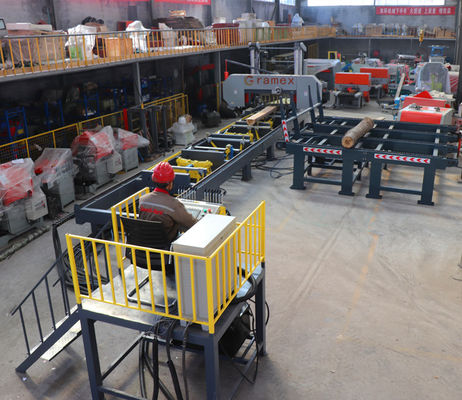

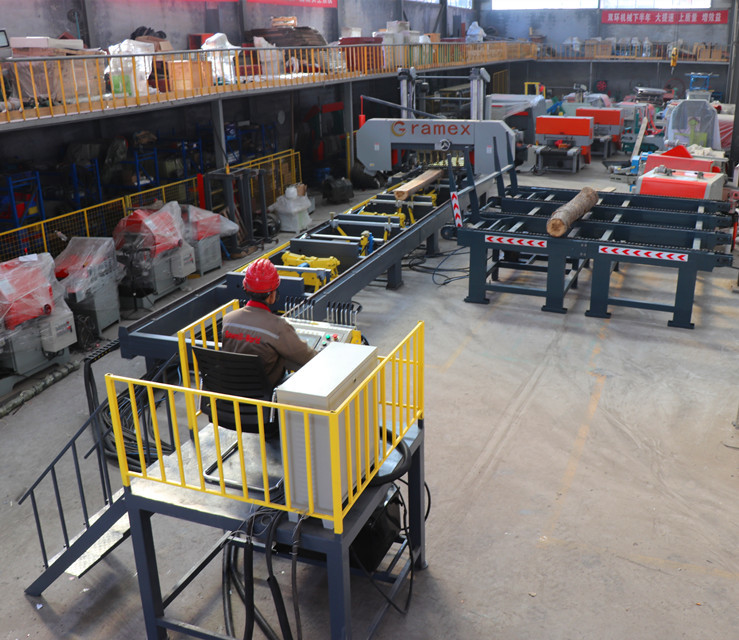

Hydraulic horizontal band sawmill production line
--- We design as customer sawing requirements like log diamter, length, end wood board sizes, etc.
| MJH700A Hydraulic Sawmill | |
| max. sawing log diameter | 700mm |
| saw wheel diameter | 700mm |
| max. sawn thickness | 300mm |
| sawing length | 4500mm |
| main motor power | 22KW |
| hydraulic pump motor | 4KW |
| blade width range | 32mm-80mm |
| sawn sizes setting mode | CNC touching screen |
| log rotation | hydraulic |
| saw head walking | inverter |
| wood grasp mode | hydraulic |
| track length | 6000mm |
| machine weight | 3500KW |

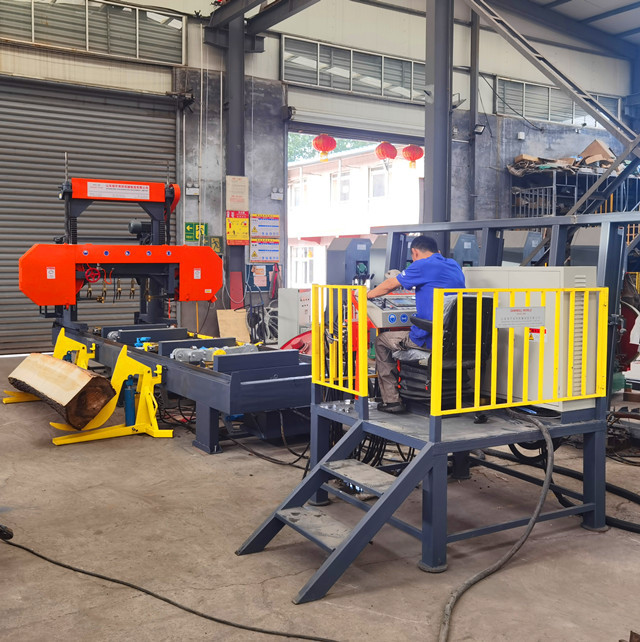

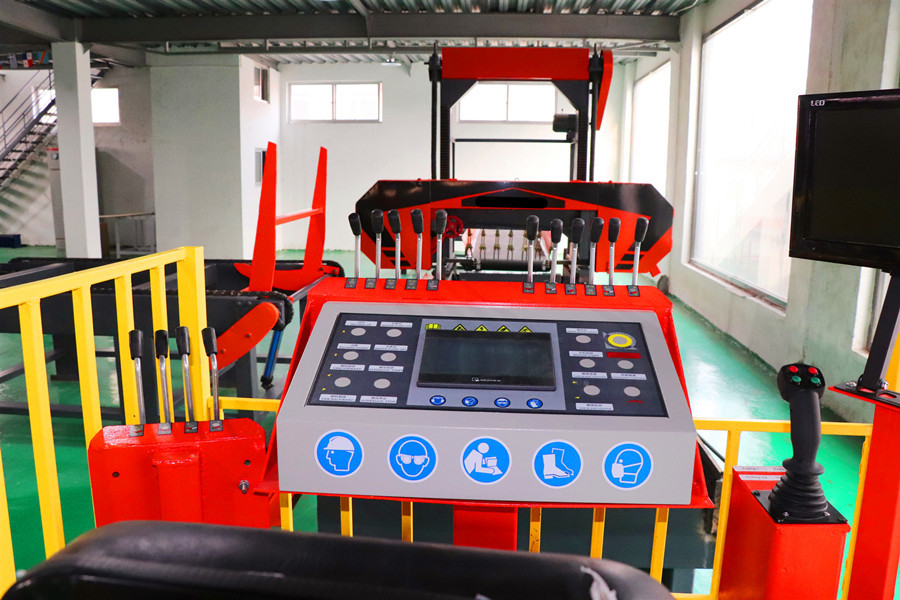

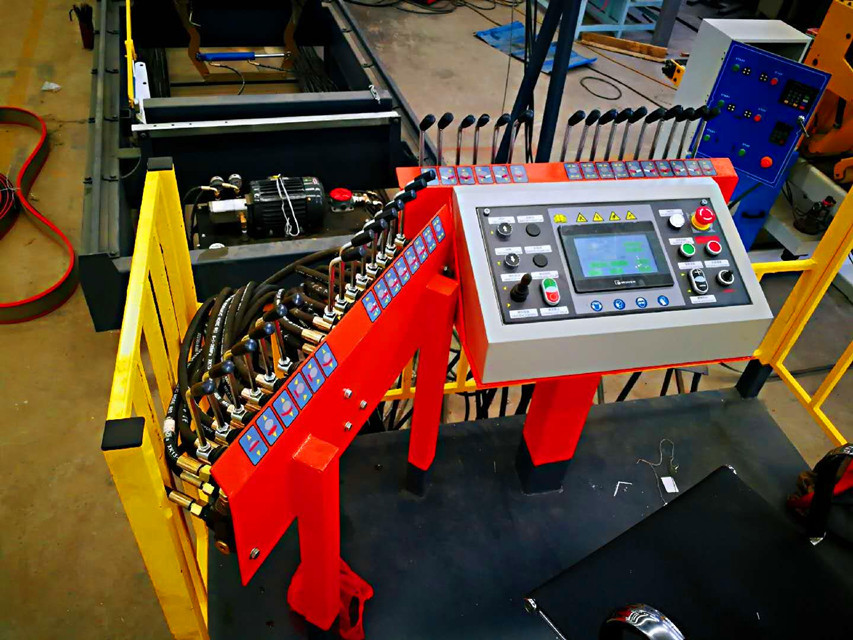

| Central control operation platform | 1pc |
| SL250-4000 Log loading deck | |
| length | 4000mm |
| width | 2500mm |
| motor | hydraulic motor |
| weight | 1500KG |
| HC600-5000 planks returning conveyor | |
| conveyor width | 600 |
| conveyor length | 5000 |
| motor | 0.75KW |
| Unilateral lifting method | hydraulic motor |
| GX5000-2000 Plate roller automatic ramp | |
| roller length | 5000mm |
| Slope pulley frame length | 2000mm |
| Slope pulley frame width | 2500mm |
| power | Self-induction (hydraulic) |
| EG600A Board Edger Saw | |
| max. sawing width | 600mm |
| min. sawing width | 50mm |
| max. sawing thickness | 70mm |
| blade diameter | 350mm |
| motor | 15kw |
| BC300 wood slabs cutting saw | |
| sawing max. width | 300mm |
| sawing max. thickness | 80mm |
| blade diameter | 405mm |
| motor | 7.5KW*2 |
| DP80-300 multi blades ripsaw for planks | |
| sawing max. width | 300mm |
| sawing max. thickness | 80mm |
| blade diameter | 180mm |
| motor | 15kw*2 |

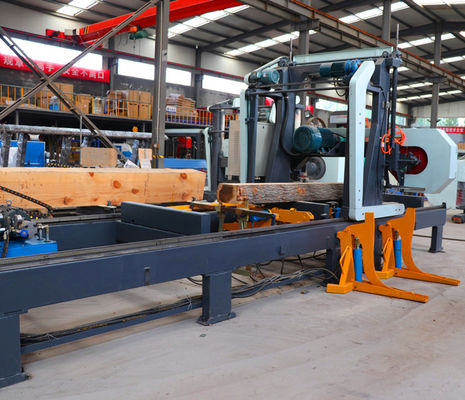

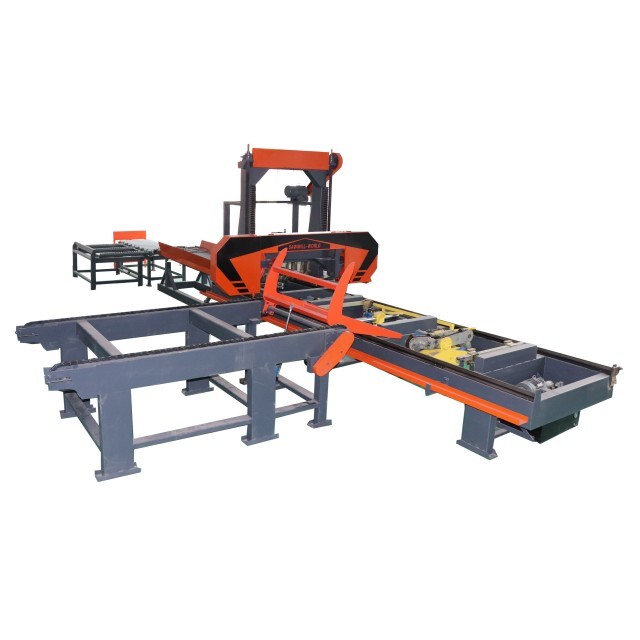

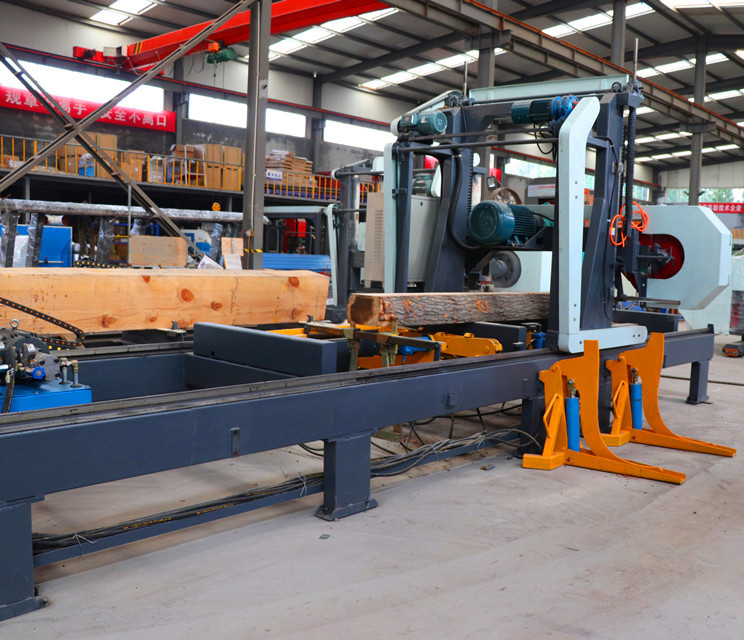

Hydraulic Automatic Horizontal Band Sawmill
Combined with hydraulic automation technology, the hydraulic automatic horizontal band sawmill realizes all digital intelligent control. Chinese and English operating systems, automatic wood rotation, sawing and cutting of large diameter wood, simple operation, precise cutting thickness to improve wood usage rate .
Technical Specifications:
| Model | MJH1000A | MJH700A |
| Max Sawing Wood Diameter | 1000mm | 700mm |
| Saw Wheel Diameter | 700mm | 700mm |
| Max Sawn Thickness | 300mm | 300mm |
| Standard Sawing Wood Length | 4.5 meters | 4.5meters |
| Main Motor Power | 22kw | 18.5KW |
| Hydraulic motor power | 4kw | 3kw |
| Saw Blade Width | 40mm-80mm | 40mm-80mm |
| Machine Length | 6000mm | 6000mm |
| Weight | 3500kg | 3000kg |
|
Model
|
MJH1000E | MJH700E |
|
Max Sawing Wood Diameter
|
1000mm | 700mm |
|
Saw Wheel Diameter
|
700mm | 700mm |
|
Max Sawing Wood Thickness
|
300mm | 300mm |
|
Standard Sawing Wood Length
|
4000mm | 4000mm |
|
Electric Motor Power
|
30kw | 22kw |
|
Up/Down Electric Motor
|
1.5kw | 1.5kw |
|
Forward/backward Electric Motor
|
2.2kw | 2.2kw |
|
Saw Blade Width
|
27mm-75mm | 27mm-75mm |
|
Blade Tension
|
Hydraulic | Hydraulic |
|
Machine Length
|
5800mm | 5800mm |
|
Weight
|
2500kg | 2300kg |
| Standard Configuration | ||||||
|
Touch Screen Accuset Setworks |
|
Hydraulic Clamp *1 |
|||
|
Hydraulic Wood Clamp*4 |
|
Hydraulic vertical side supports *4 |
|||
|
Hydraulic Log Loading |
|
Board automatic return hook | |||
| Optional parts: | ||||||
|
Mobile Wheels, |
|
Hydraulic bi-directional Chain log turner*2 |
|||
|
Hydraulic plank roller axle x1 | |
Extend The Rail Length | |||
