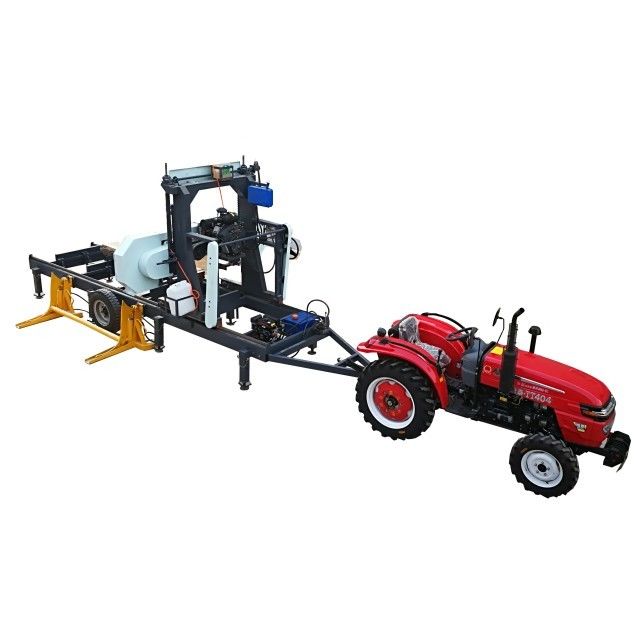

Hydraulic Portable sawmill, Diesel power, Full Hydraulic to Cut 36 round log 20 ft. long
Hydraulic Horizontal Band Sawmill (Petrol/Diesel Engine type )
| Model | MJH1000D | MJH1300P |
| Max Sawing Wood Diameter | 1000mm | 1300mm |
| Saw Wheel Diameter | 700mm | 700mm |
| Max Sawing Wood Thickness | 300mm | 300mm |
| Standard Sawing Wood Length | 4000mm | 4000mm |
| Motor Power | 22HP Diesel 2-Cylinder | 35HP Petrol 2-Cylinder |
| Saw Blade Width | 27mm-75mm | 27mm-75mm |
| Saw head up/down | Hydraulic | Hydraulic |
| Machine Length | 5800mm | 5800mm |
| Weight | 2500kg | 2500kg |
| Standard Configuration | ||||||
 |
Hydraulic Log Loading Arm *1 |
|
Hydraulic Clamp *1 Secure and stabilize the log |
|||
|
Hydraulic Wood Clamp*4 Secure and stabilize the log |
|
Hydraulic vertical side supports *4 Secure and stabilize the log |
|||
|
Mobile Wheels, 8 Adjustable Up/down legs |
|
Board automatic return hook | |||
| Optional parts: | ||||||
|
Touch Screen Accuset Setworks Automatically moves head for each cut and head walking speed is Frequency variable |
|
Hydraulic bi-directional Chain log turner*2 For max. log control |
|||
| Hydraulic wood adjuster x1 | |
Extend The Rail Length | ||||
ydraulic Horizontal Band Sawmill
| 型 号 | Model | SW1000P |
| 锯割木材直径 | Max Sawing Wood Diameter | 1000mm |
| 锯轮直径 | Saw Wheel Diameter | 700mm |
| 最大锯割木材厚度 | Max Sawing Wood Thickness | 350mm |
| 锯割木材长度(标准) | Standard Sawing Wood Length | 4500mm |
| 功率 | Engine Power | 35HP petrol engine or 22HP diesel engine |
| 锯头(升/降) | Up/Down | Electrial |
| 行走方式(前进/倒退) | Forward/Backward | Inverter |
| 锯条宽度范围 | Saw Blade width | 50-80mm |
| 1,木材上料装置 | Hydraulic Log Loading Arms | 1 |
| 2,液压翻转夹紧顶装置 | Hydraulic Rotation Clamping | 2 |
| 3,10个支架腿+轮胎4个 | 10pcs legs + tryes 4pcs | 1 |
| 4,设定锯割尺寸 | Sawn sizes setting | touching screen +PLC |
| 5,液压链式翻滚装置 | Hydraulic Chain Rotation | 2 |
| 6,液压档木立桩 | Hydraulic lot stop pole | 4 |
| 机床长度 | Machine Length | 5800mm |
| 重量 | Weight | 2800kg |

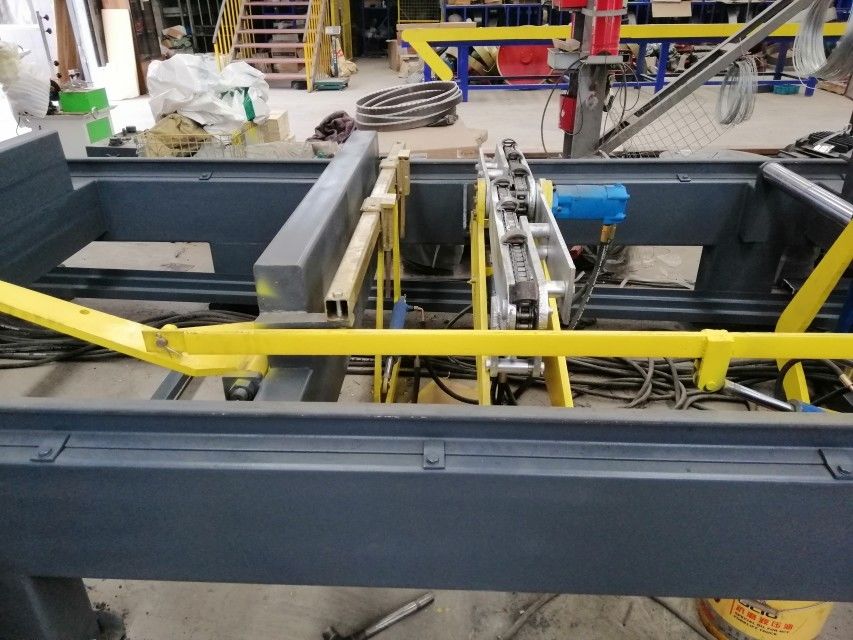

Hydraulic Chain Rotation
Hydraulic Rotation Clamping
