| Place of Origin: | shandong province, China |
| Brand Name: | SH |
| Certification: | ISO9001 |
| Model Number: | MJH1000D, MJH1300P |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | USD16,000-25,900/SET |
| Packaging Details: | iron frame pallet or film wrapped packings |
| Delivery Time: | within 20 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 1000sets/year |
| Name: | Portable Band Saw | Condition: | New |
|---|---|---|---|
| Usage: | Cutting Wood Logs Into Planks | Style: | Horizontal Band Saw |
| Engine: | Diesel / Petrol Engine | Max. Sawing Log Diameter: | 1000mm Or 1300mm |
| Sawing Log Length: | 4meters | Power(w): | 22HP Or 35HP |
| Weight: | 2500KG | Key Selling Points: | Competitive Price,Automatic,High Productivity,Easy To Operate |
| After-sales Service Provided: | Online Support,Video Technical Support | Other: | We Can Customize Machine According To Customer Needs |

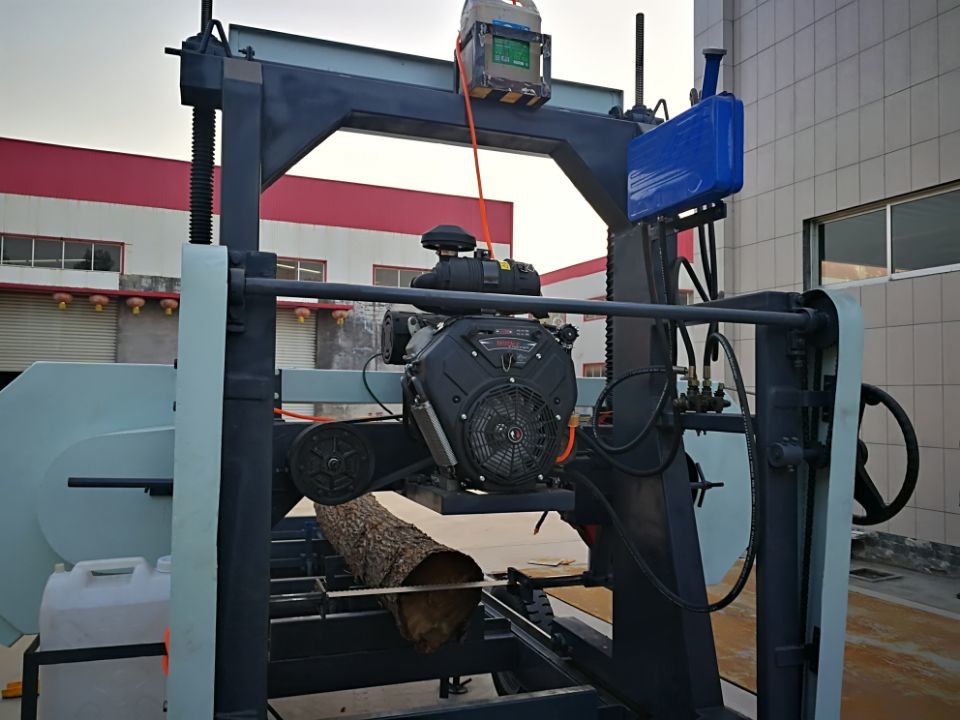

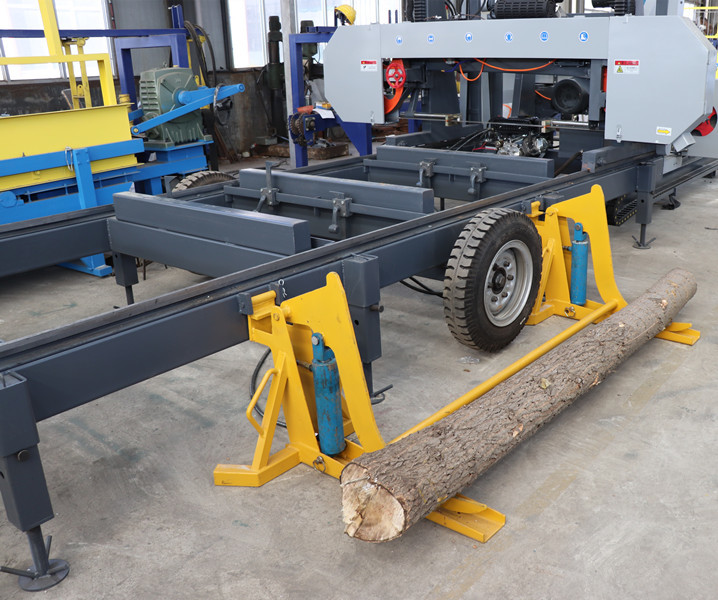

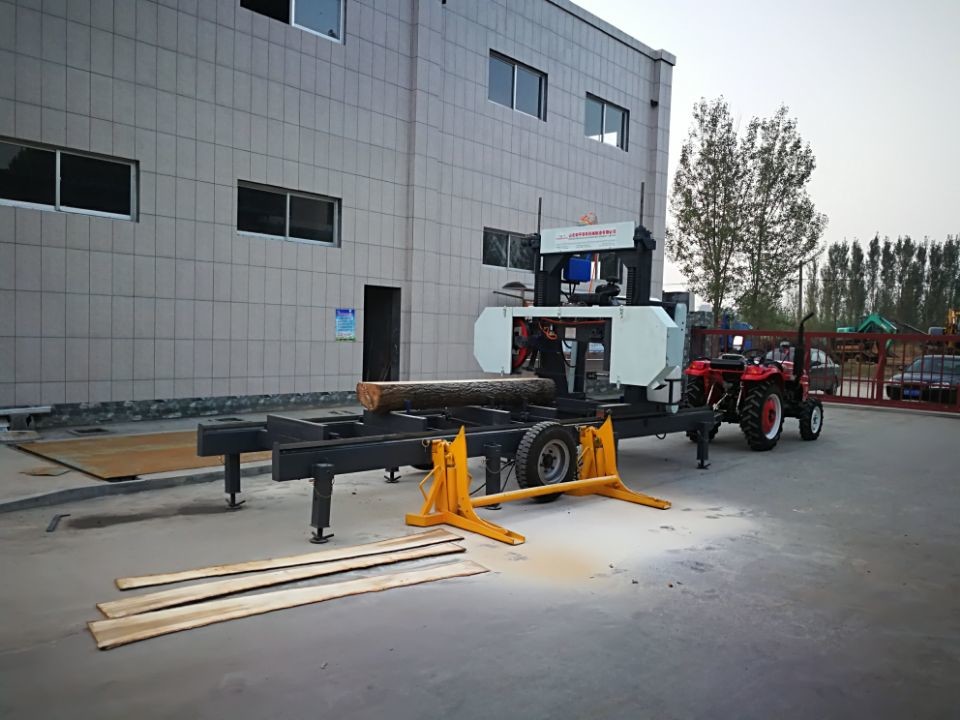

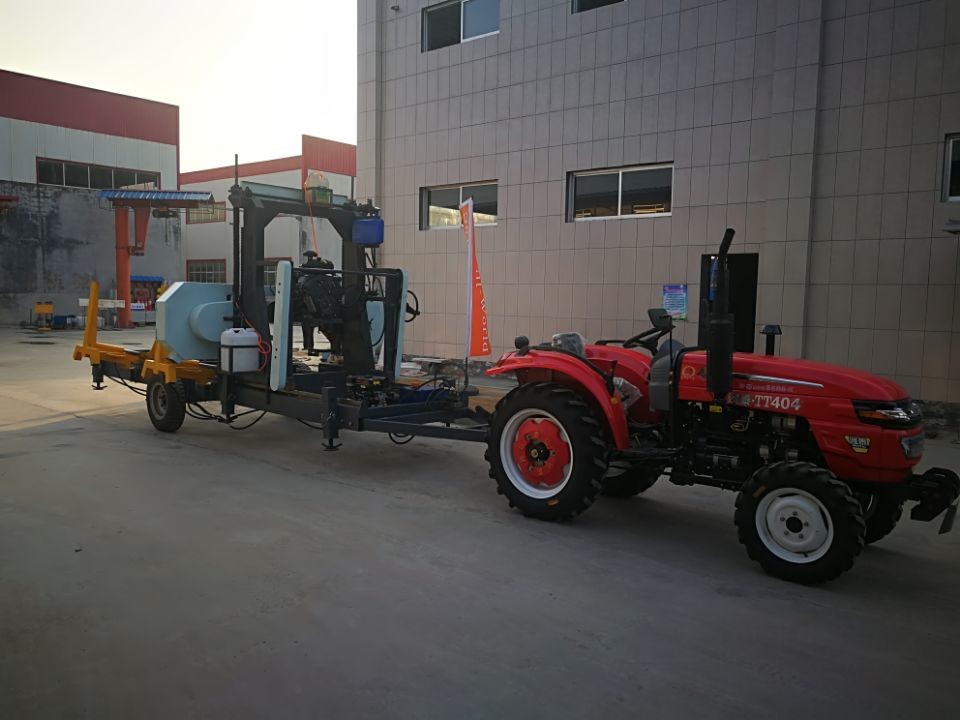

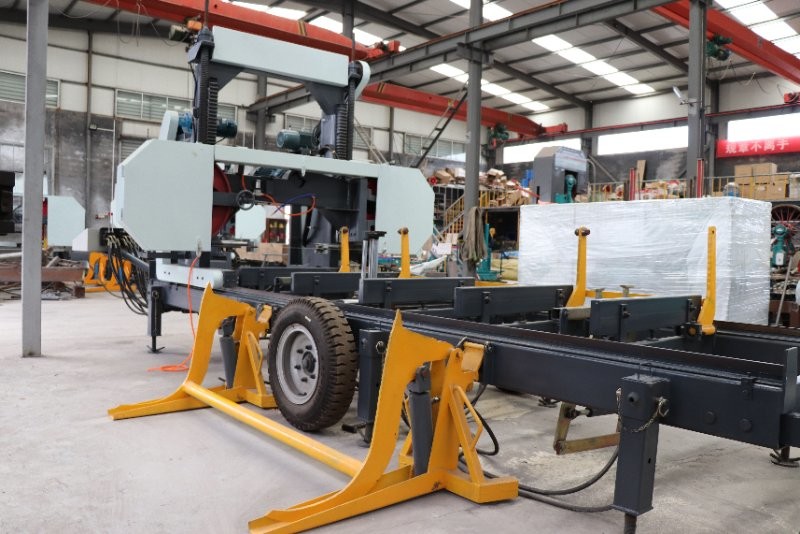

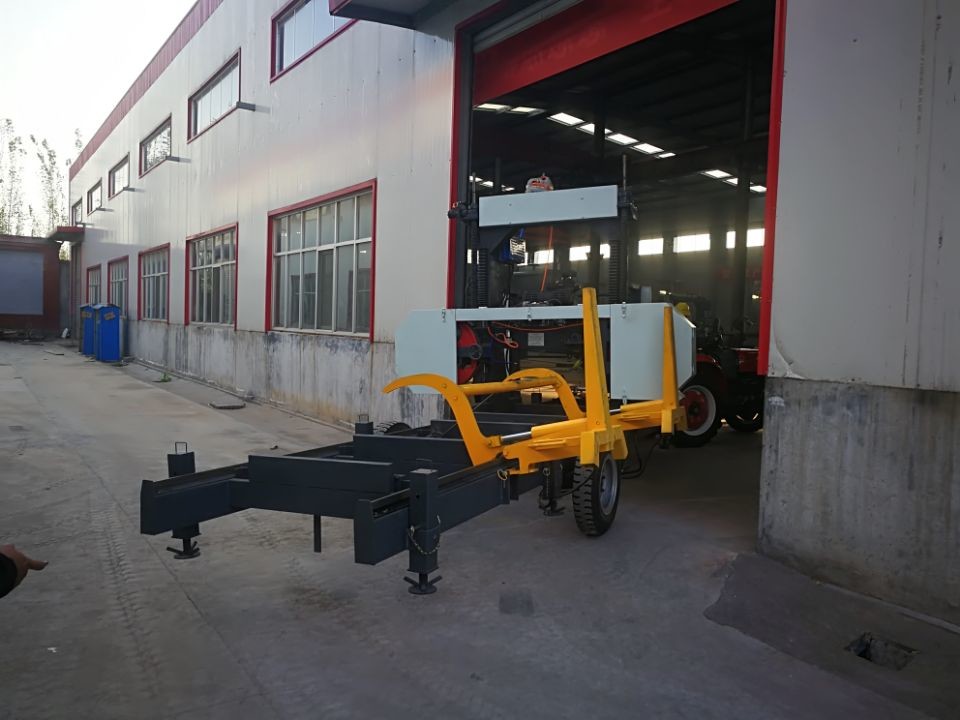

Hydraulic Horizontal Band Sawmill (Petrol/Diesel Engine type )
1.The sawmill is with hydraulic log loading arm.
2. The sawmill is with hydraulic rotation clamping .
3. The sawmill is with hydraulic wood clamp.
4. The sawmill is with mobile wheel for mobile usage .
Specifications:
| Model | MJH1000D | MJH1300P |
| Max Sawing Wood Diameter | 1000mm | 1300mm |
| Saw Wheel Diameter | 700mm | 700mm |
| Max Sawing Wood Thickness | 300mm | 300mm |
| Standard Sawing Wood Length | 4000mm | 4000mm |
| Motor Power | 22HP Diesel 2-Cylinder | 35HP Petrol 2-Cylinder |
| Saw Blade Width | 27mm-75mm | 27mm-75mm |
| Saw head up/down | Hydraulic | Hydraulic |
| Machine Length | 5800mm | 5800mm |
| Weight | 2500kg | 2500kg |
| Standard Configuration | ||||||
 | Hydraulic Log Loading | | Hydraulic Clamp *1 | |||
| Hydraulic Wood Clamp*4 | | Hydraulic vertical side supports *4 | |||
| Mobile Wheels, | | Board automatic return hook | |||
| Optional parts: | ||||||
| Touch Screen Accuset Setworks | | Hydraulic bi-directional Chain log turner*2 | |||
| Hydraulic wood adjuster x1 | | Extend The Rail Length | ||||
| Item | Auxiliary Equipment | ||||
| 1 | MR1111 Automatic Band Saw Blade Sharpener | ||||
| 2 | Sand Wheel For MR1111 | ||||
| 3 | UN65 Flash Seal Welding Machine | ||||
| 4 | MR417 Roll Machine | ||||
| 5 | Dual Tooth Setter | ||||
| 6 | USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm | ||||
| USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm | |||||
| USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm | |||||
| USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm | |||||
| 7 | Wood Cant Hook 48” Handle | ||||
