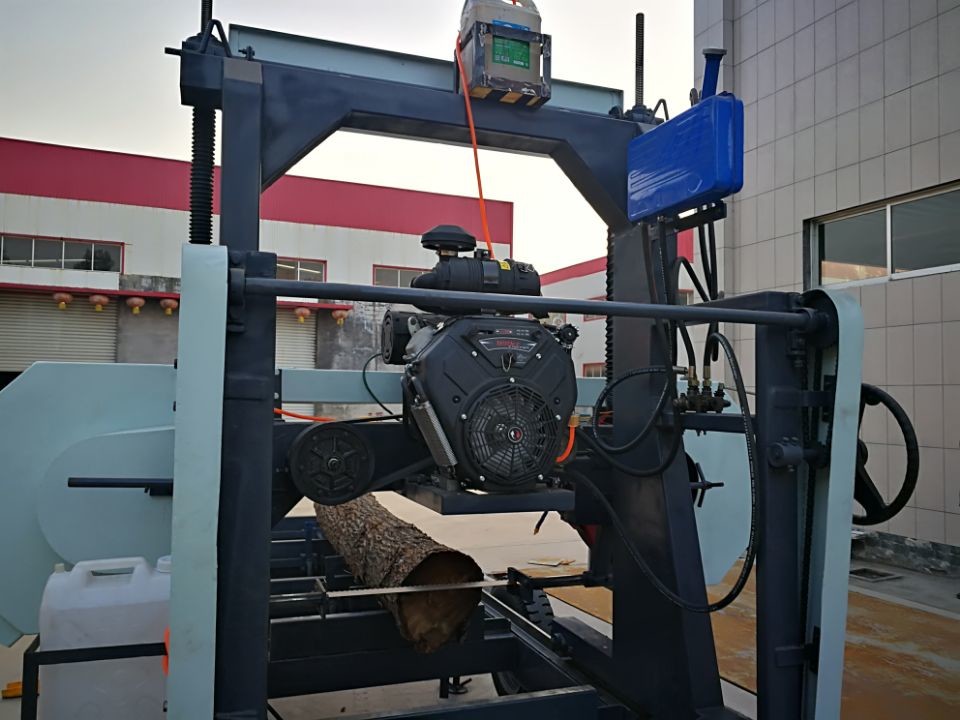

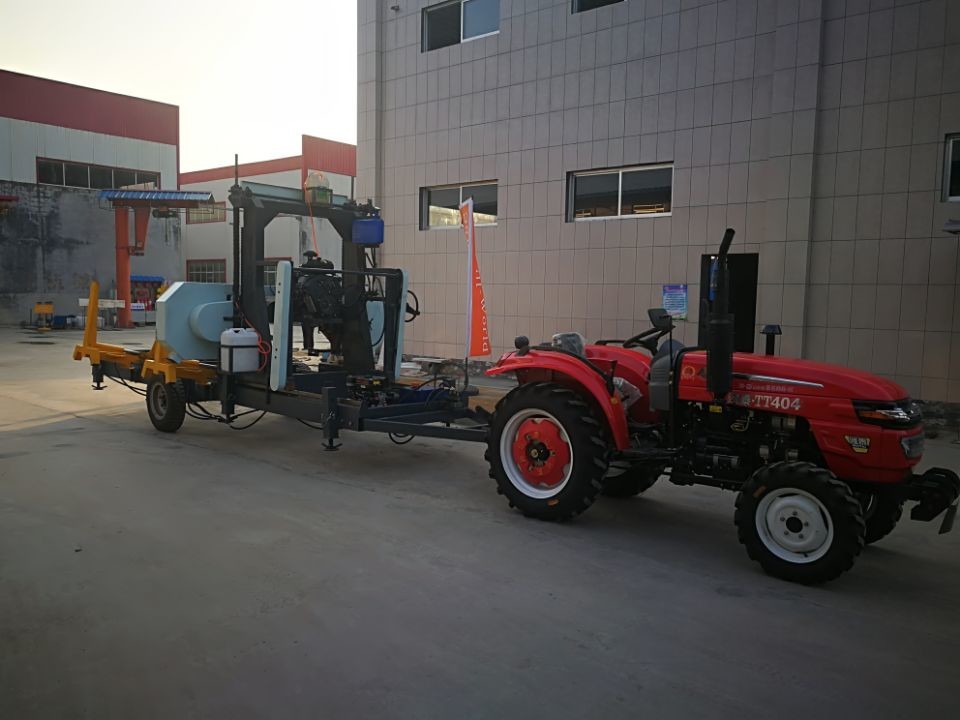

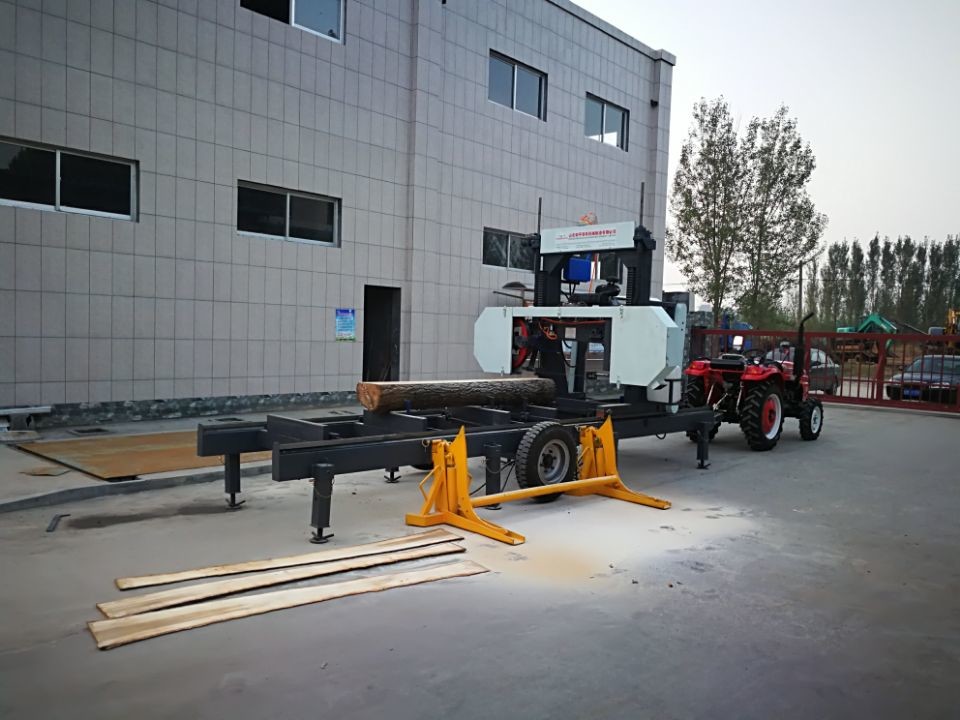

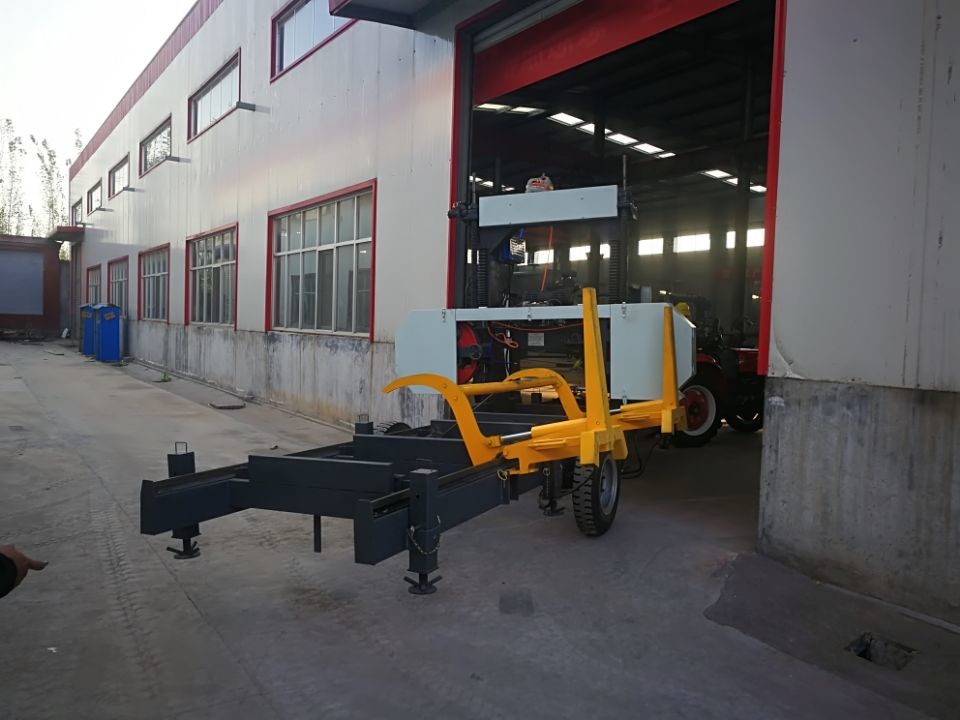

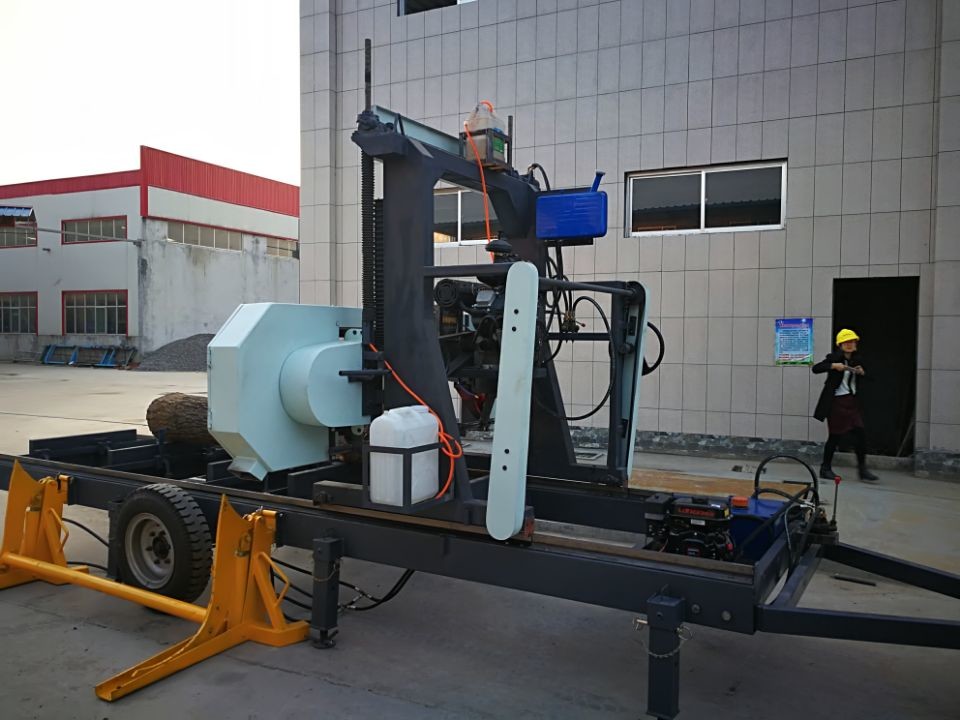

Hydraulic Horizontal Band Sawmill with Petrol/Diesel engine Powered

Place of Origin shandong province
Brand Name SH
Certification ISO9001
Model Number MJH1000D, MJH1300P
Minimum Order Quantity 1 SET
Price USD16,000-25,900/SET
Packaging Details Container loading
Delivery Time within 25 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1500Sets /year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Band Saw
Use Woodworking Style Horizontal
Engine 22HP Diesel Engine Or 35HP Petrol Engine Warranty 12 Month
Feeding Manual Or Automatic After-sales Service Provided Engineer Available To Service Machine Overseas
Leave a Message
Product Description

Hydraulic Horizontal Band Sawmill (Petrol/Diesel Engine type )

Model MJH1000D MJH1300P
Max Sawing Wood Diameter 1000mm 1300mm
Saw Wheel Diameter 700mm 700mm
Max Sawing Wood Thickness 300mm 300mm
Standard Sawing Wood Length 4000mm 4000mm
Motor Power 22HP Diesel 2-Cylinder 35HP Petrol 2-Cylinder
Saw Blade Width 27mm-75mm 27mm-75mm
Saw head up/down Hydraulic Hydraulic
Machine Length 5800mm 5800mm
Weight 2500kg 2500kg

Standard Configuration
Hydraulic Horizontal Band Sawmill with Petrol/Diesel engine Powered 0

Hydraulic Log Loading

Arm *1

Hydraulic Horizontal Band Sawmill with Petrol/Diesel engine Powered 1

Hydraulic Clamp *1

Secure and stabilize the log

Hydraulic Horizontal Band Sawmill with Petrol/Diesel engine Powered 2

Hydraulic Wood Clamp*4

Secure and stabilize the log

Hydraulic Horizontal Band Sawmill with Petrol/Diesel engine Powered 3

Hydraulic vertical side supports *4

Secure and stabilize the log

Hydraulic Horizontal Band Sawmill with Petrol/Diesel engine Powered 4

Mobile Wheels,

8 Adjustable Up/down legs

Hydraulic Horizontal Band Sawmill with Petrol/Diesel engine Powered 5 Board automatic return hook
Optional parts:
Hydraulic Horizontal Band Sawmill with Petrol/Diesel engine Powered 6

Touch Screen Accuset Setworks

Automatically moves head for each cut and head walking speed is Frequency variable

Hydraulic Horizontal Band Sawmill with Petrol/Diesel engine Powered 7

Hydraulic bi-directional Chain log turner*2

For max. log control

  Hydraulic wood adjuster x1 Hydraulic Horizontal Band Sawmill with Petrol/Diesel engine Powered 8 Extend The Rail Length































































Hydraulic Horizontal Band Sawmill with Petrol/Diesel engine Powered 9

Hydraulic Horizontal Band Sawmill with Petrol/Diesel engine Powered 10
