Hydraulic automatic cnc bandsaw machine, band saw mills with petrol or diesel engine
| Place of Origin | shandong province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | MJH1000D, MJH1300P |
| Minimum Order Quantity | 1 SET |
| Price | US $12,000 - 29,000 / Set |
| Packaging Details | container loading |
| Delivery Time | within 15 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 1000 sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Wood Band Saw,Band Saw Machine | Condition | New |
|---|---|---|---|
| Type | Band Saw | Use | Woodworking |
| Style | Horizontal | Power | 22HP Diesel Engine Or 35HP Petrol Engine |
| Max. Sawing Wood Diameter | 1300mm | Movement | With Wheels For Mobile Usage |
| Key Selling Points | Competitive Price,Automatic,High Productivity | After-sales Service Provided | Online Support,Video Technical Support |
| Warranty | 12 Month |
Product Description

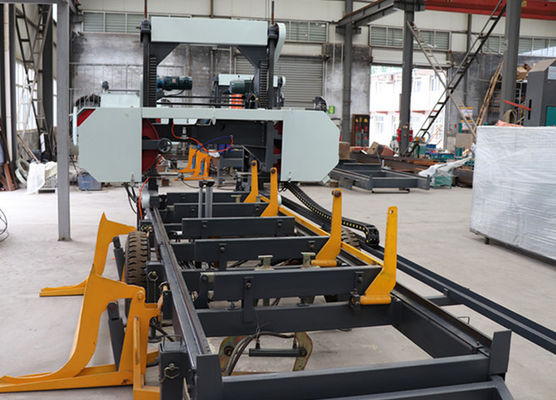

Hydraulic Horizontal Band Sawmill (Petrol/Diesel Engine type )
1.The sawmill is with hydraulic log loading arm.
2. The sawmill is with hydraulic rotation clamping .
3. The sawmill is with hydraulic wood clamp.
4. The sawmill is with mobile wheel for mobile usage .
Specifications:
| Model | MJH1000D | MJH1300P |
| Max Sawing Wood Diameter | 1000mm | 1300mm |
| Saw Wheel Diameter | 700mm | 700mm |
| Max Sawing Wood Thickness | 300mm | 300mm |
| Standard Sawing Wood Length | 4000mm | 4000mm |
| Motor Power | 22HP Diesel 2-Cylinder | 35HP Petrol 2-Cylinder |
| Saw Blade Width | 27mm-75mm | 27mm-75mm |
| Saw head up/down | Hydraulic | Hydraulic |
| Machine Length | 5800mm | 5800mm |
| Weight | 2500kg | 2500kg |
| Standard Configuration | ||||||
 |
Hydraulic Log Loading Arm *1 |
|
Hydraulic Clamp *1 Secure and stabilize the log |
|||
|
Hydraulic Wood Clamp*4 Secure and stabilize the log |
|
Hydraulic vertical side supports *4 Secure and stabilize the log |
|||
|
Mobile Wheels, 8 Adjustable Up/down legs |
|
Board automatic return hook | |||
| Optional parts: | ||||||
|
Touch Screen Accuset Setworks Automatically moves head for each cut and head walking speed is Frequency variable |
|
Hydraulic bi-directional Chain log turner*2 For max. log control |
|||
| Hydraulic wood adjuster x1 | |
Extend The Rail Length | ||||
