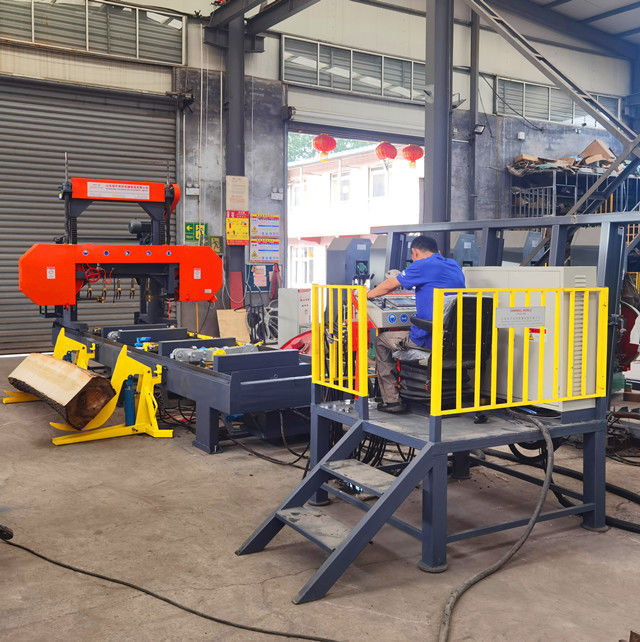

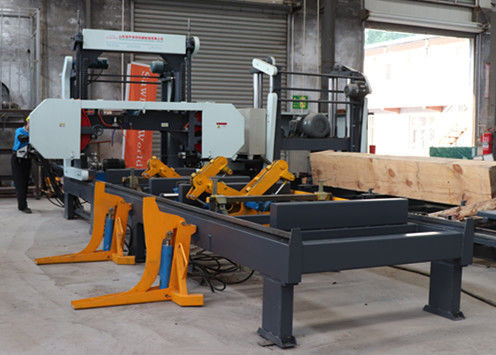

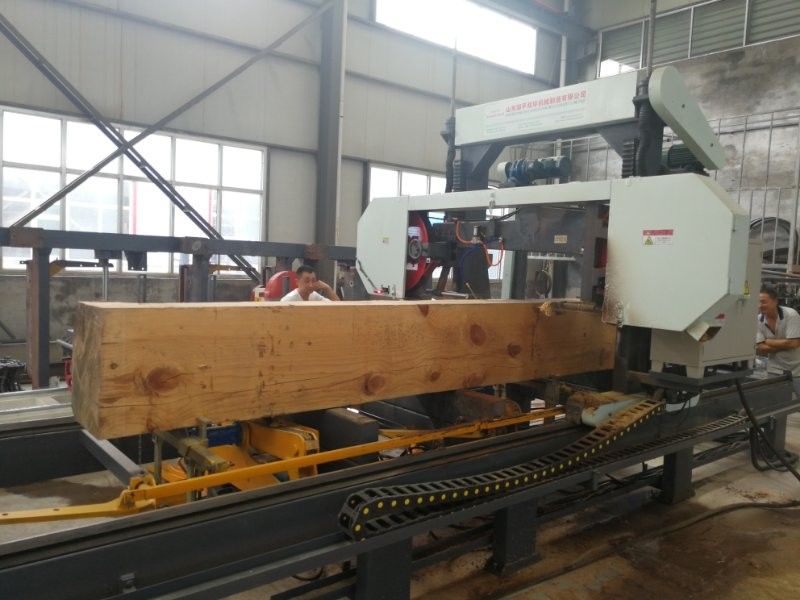

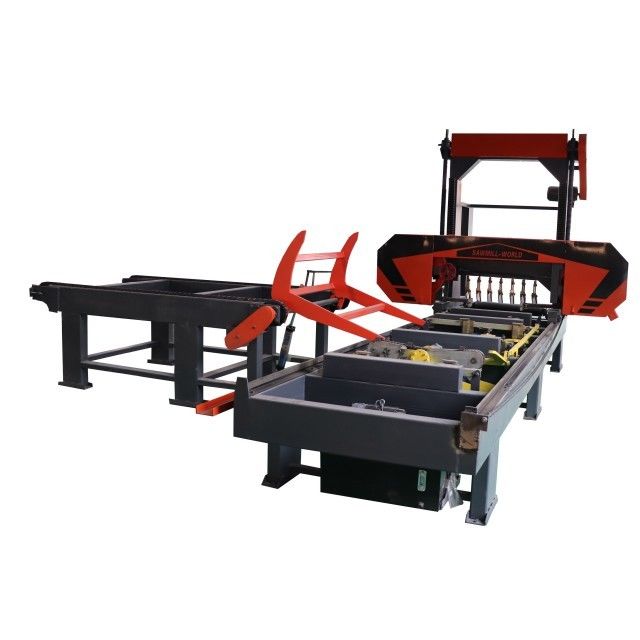

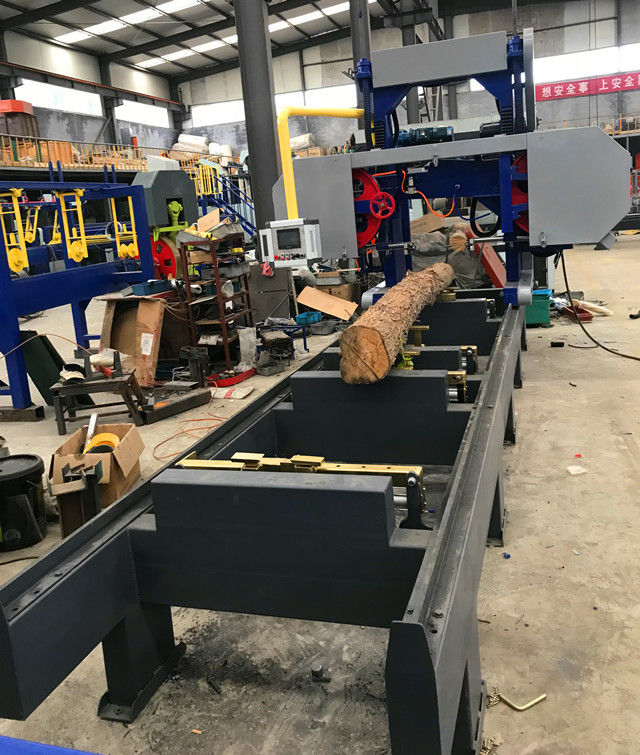

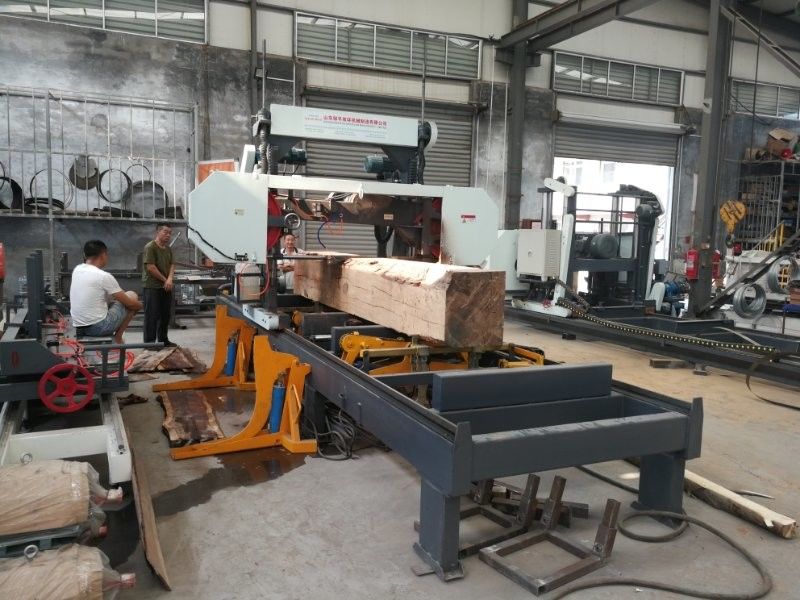

Hydraulic Automatic Horizontal Band Sawmill
Combined with hydraulic automation technology, the hydraulic automatic horizontal band sawmill realizes all digital intelligent control. Chinese and English operating systems, automatic wood rotation, sawing and cutting of large diameter wood, simple operation, precise cutting thickness to improve wood usage rate .
Technical Specifications:
Hydraulic Horizontal Band Sawmill
| 型 号 | Model | SW1000E |
| 锯割木材直径 | Max Sawing Wood Diameter | 100mm(40") |
| 锯轮直径 | Saw Wheel Diameter | 700mm |
| 最大锯割木材厚度 | Max Sawing Wood Thickness | 350mm |
| 锯割木材长度(标准) | Standard Sawing Wood Length | 6000mm |
| 功率 | Engine Power | 22KW Electric motor |
| 锯头(升/降) | Up/Down | Electrical |
| 行走方式(前进/倒退) | Forward/Backward | Inverter |
| 锯条宽度范围 | Saw Blade Thickness | 50-80mm |
| 1,木材上料装置 | Hydraulic Log Loading Arms | 1 |
| 2,液压翻转夹紧顶装置 | Hydraulic Rotation Clamping | 2 |
| 3,支架腿 | Legs | 8 |
| 4,设定锯割尺寸 | Sawn sizes setting | Touching screen +PLC |
| 5,液压链式翻滚装置 | Hydraulic Chain Rotation | 1 |
| 6,液压档木立桩 | Hydraulic lot stop pole | 4 |
| 7,液压木材移动辊 | Hydraulic wood moving roller | 1 |
| 8,调整木材大小头液压辊 | Hydraulic wood adjuster | 1 |
| 机床长度 | Machine Length | 8000mm |
| 重量 | Weight | 2800kg |
Touching screen +PLC - sawn sizes setting
Hydraulic Rotation Clamping
Hydraulic Chain Rotation
Hydraulic wood adjuster
Technical data
| Model | MJH1000A | MJH700A |
| Max Sawing Wood Diameter | 1000mm | 700mm |
| Saw Wheel Diameter | 700mm | 700mm |
| Max Sawn Thickness | 300mm | 300mm |
| Standard Sawing Wood Length | 4.5 meters | 4.5meters |
| Main Motor Power | 22kw | 18.5KW |
| Hydraulic motor power | 4kw | 3kw |
| Saw Blade Width | 40mm-80mm | 40mm-80mm |
| Machine Length | 6000mm | 6000mm |
| Weight | 3500kg | 3000kg |
