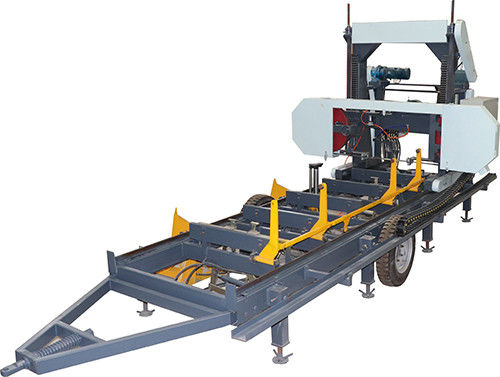

Horizontal wood cutting band saw portable sawmill for sale /diesel engine horizontal band sawmill

Place of Origin shandong province
Brand Name SH
Certification ISO
Model Number MJH700E, MJH1000E
Minimum Order Quantity 1 SET
Price US $15,900 - 24,700 / Set
Packaging Details container loading
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Band Saw
Use Woodworking Voltage 380V,50HZ, 3phase Or As Customer Needs
Power 22 Kw - 30 Kw Warranty 12 Months
After-sales Service Provided Engineers Available To Service Machines Overseas Cut Max. Wood Diameter 700mm - 1000mm
Operation Automatic
Leave a Message
Product Description

Hydraulic Band Sawmill Machine With Electric Motor

The max. cutting wood diameter can be customized as your requests




Model
MJH1000E MJH700E

Max Sawing Wood Diameter
1000mm 700mm

Saw Wheel Diameter
700mm 700mm

Max Sawing Wood Thickness
300mm 300mm

Standard Sawing Wood Length
4000mm 4000mm

Electric Motor Power
30kw 22kw

Up/Down Electric Motor
1.5kw 1.5kw

Forward/backward Electric Motor
2.2kw 2.2kw

Saw Blade Width
27mm-75mm 27mm-75mm

Blade Tension
Hydraulic Hydraulic

Machine Length
5800mm 5800mm

Weight
2500kg 2300kg



Standard Configuration
Horizontal wood cutting band saw portable sawmill for sale /diesel engine horizontal band sawmill 0

Touch Screen Accuset Setworks

Automatically moves head for each cut and head walking speed is Frequency variable

Horizontal wood cutting band saw portable sawmill for sale /diesel engine horizontal band sawmill 1

Hydraulic Clamp *1

Secure and stabilize the log

Horizontal wood cutting band saw portable sawmill for sale /diesel engine horizontal band sawmill 2

Hydraulic Wood Clamp*4

Secure and stabilize the log

Horizontal wood cutting band saw portable sawmill for sale /diesel engine horizontal band sawmill 3

Hydraulic vertical side supports *4

Secure and stabilize the log

Horizontal wood cutting band saw portable sawmill for sale /diesel engine horizontal band sawmill 4

Hydraulic Log Loading

Arm *1

Horizontal wood cutting band saw portable sawmill for sale /diesel engine horizontal band sawmill 5 Board automatic return hook
Optional parts:
Horizontal wood cutting band saw portable sawmill for sale /diesel engine horizontal band sawmill 6

Mobile Wheels,

8 Adjustable Up/down legs

Horizontal wood cutting band saw portable sawmill for sale /diesel engine horizontal band sawmill 7

Hydraulic bi-directional Chain log turner*2

For max. log control

Horizontal wood cutting band saw portable sawmill for sale /diesel engine horizontal band sawmill 8 Hydraulic plank roller axle x1 Horizontal wood cutting band saw portable sawmill for sale /diesel engine horizontal band sawmill 9 Extend The Rail Length



Horizontal wood cutting band saw portable sawmill for sale /diesel engine horizontal band sawmill 10
