Large Horizontal Band Saw Wood Portable Sawmill For Sale Full Automatic Big Sawmill
| Place of Origin | shandong province |
|---|---|
| Brand Name | SH |
| Certification | ISO |
| Model Number | MJH1200E,MJH1500E |
| Minimum Order Quantity | 1 SET |
| Price | US $41,000 - 51,000 / Set |
| Packaging Details | container loading |
| Delivery Time | within 20 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 500sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Band Saw |
|---|---|---|---|
| Use | Woodworking | Style | Horizontal |
| Voltage | 380v,3ph,50HZ Or As Customer Needs | Dimension(L*W*H) | 7000*2500*2500mm |
| Weight | 8500kg | Warranty | 12 Months |
| Sawing Thickness Setting | PLC Touching Screen Auto Setworks |
Product Description

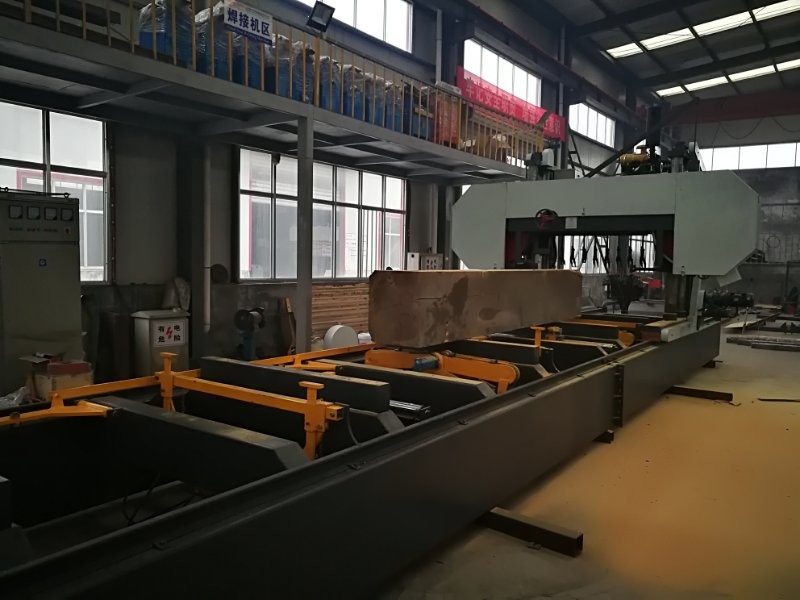

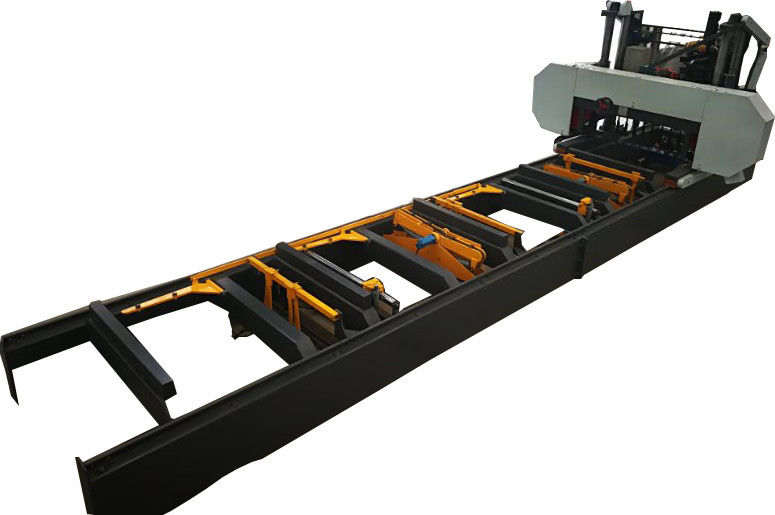

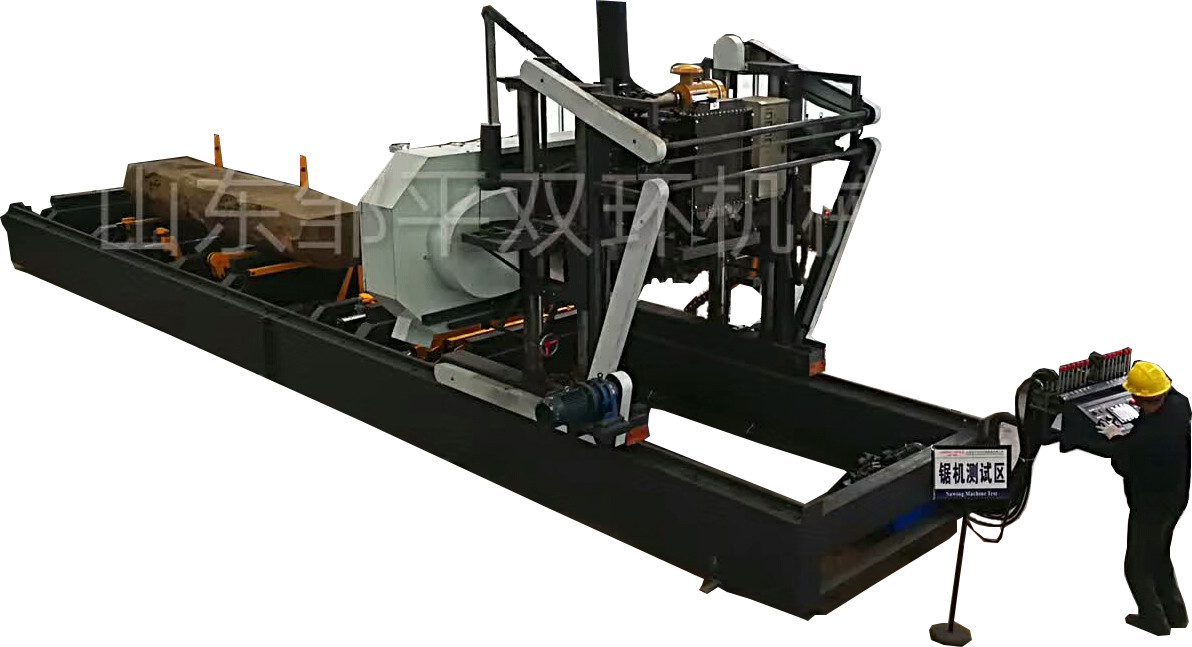

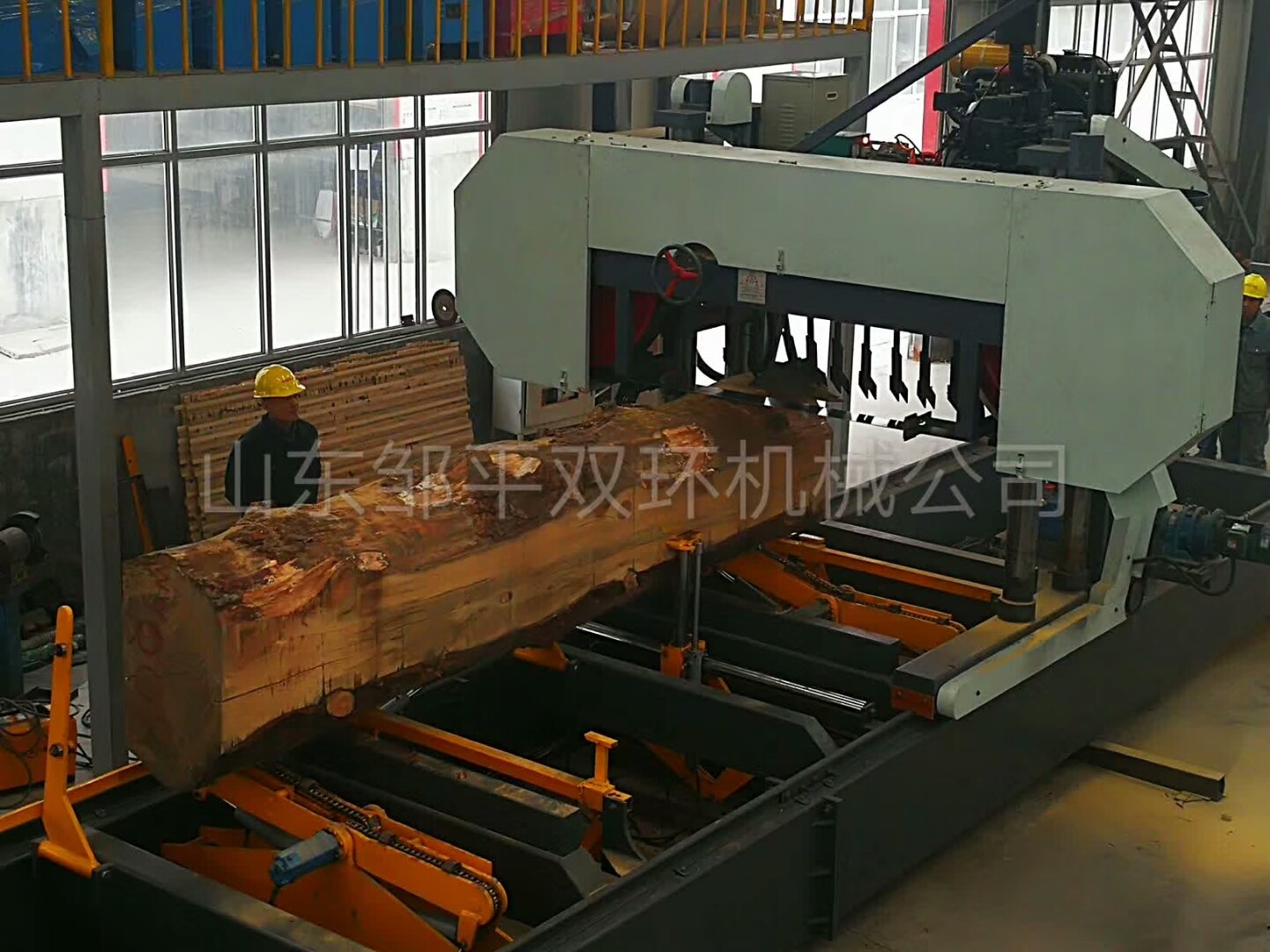

Heavy Duty Hydraulic Automatic Wood Cutting Horizontal Band Sawmill

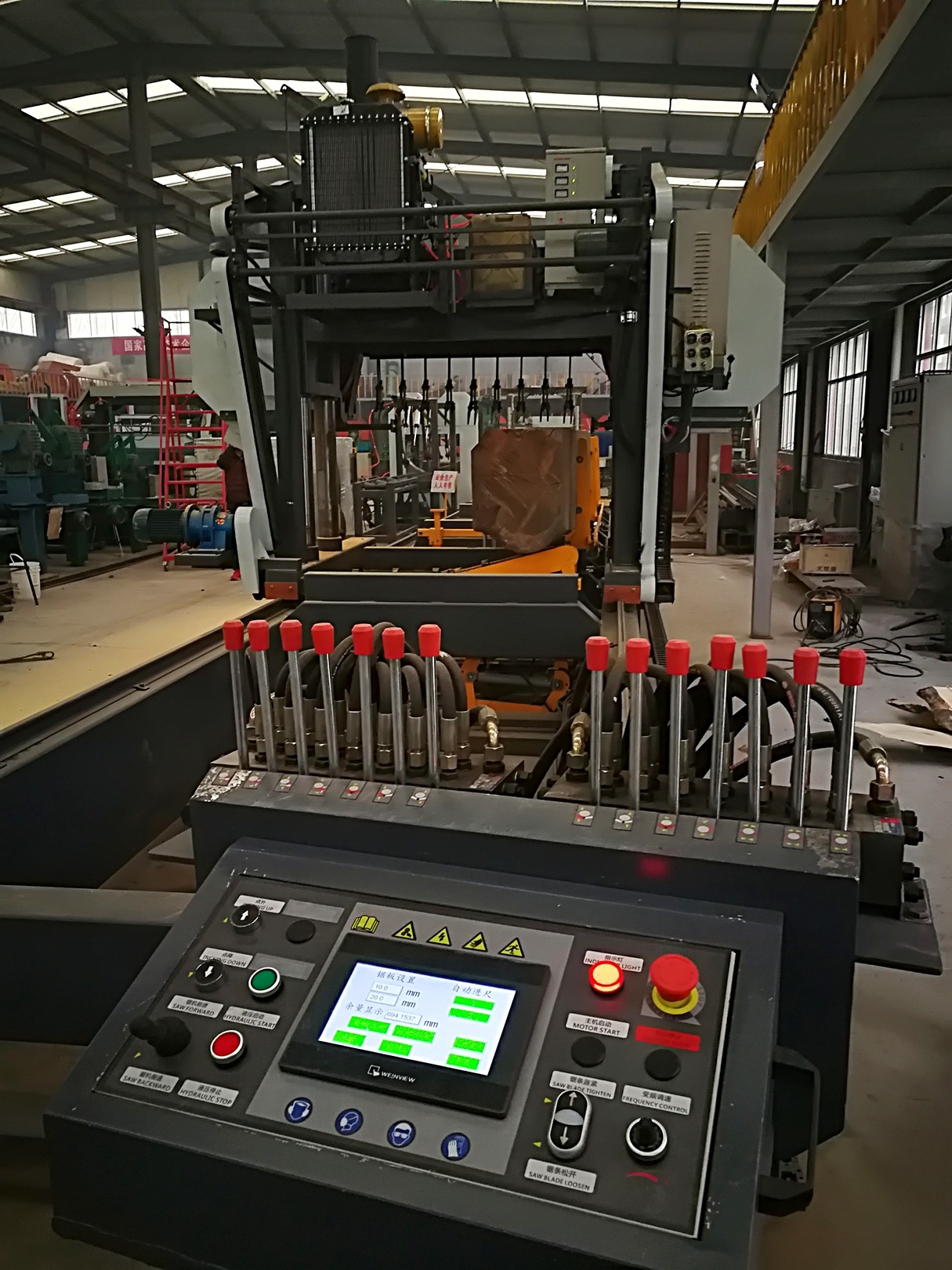

Combined with Hydraulic automation technology, the heavy duty hydraulic horizontal band sawmill realizes all digital intelligent control . Chinese and English operating systems, automatic rotation, sawing and cutting of large diameter wood, simple operation of equipment, precise cutting thickness, improves wood usage rate .
Technical Data:
|
Model
|
MJH1200E
|
MJH1500E
|
|
Max Sawing Wood Diameter
|
1200mm
|
1500mm
|
|
Saw Wheel Diameter
|
1000mm
|
1070mm
|
|
Max Sawing Wood Thickness
|
400mm
|
400mm
|
|
Standard Sawing Wood Length
|
4500mm
|
4500mm
|
|
Electric Motor Power
|
37kw
|
45kw
|
|
Up/Down Electric Motor
|
2.2kw
|
2.2kw
|
|
Forward/Backward Electric Motor
|
3kw
|
3kw
|
|
Band Saw Blade Width
|
125-150mm
|
125-150mm
|
|
Band Saw Blade Tension
|
Electric
|
|
|
Machine Length
|
7000mm
|
7000mm
|
|
Weight
|
7000kg
|
8500kg
|
