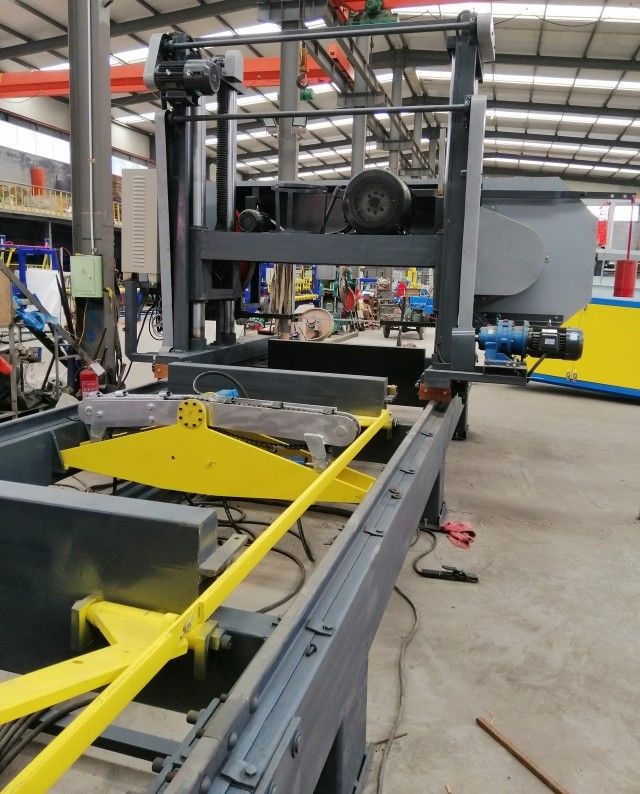

Woodworking Hydraulic Bandsaw Machine Log Cutting Band Sawmill Wood Saw Machine
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | MJH1100E,MJH1500E |
| Minimum Order Quantity | 1 SET |
| Price | US $21,000 - 39,000 / Set |
| Packaging Details | container loading |
| Delivery Time | within 20 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 100sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Large Size Wood Cutting Horizontal Band Sawmill | Type | Band Saw |
|---|---|---|---|
| Style | Horizontal | Saw Wheel Diameter | 1070mm |
| Voltage | 380v,3ph,50HZ Or As Customer Needs | Power | 37kw, 53kw |
| Saw Blade Width | 125mm, 150mm | Weight | 8500kg |
| Sawing Thickness Setting | Touching Screen | Warranty | 12 Months |
| After-sales Service Provided | Engineers Available To Service Machine Overseas | ||
| High Light | Woodworking Hydraulic Bandsaw Machine,1070mm Log Cutting Band Saw,1070mm Hydraulic Bandsaw Machine |
||
Product Description

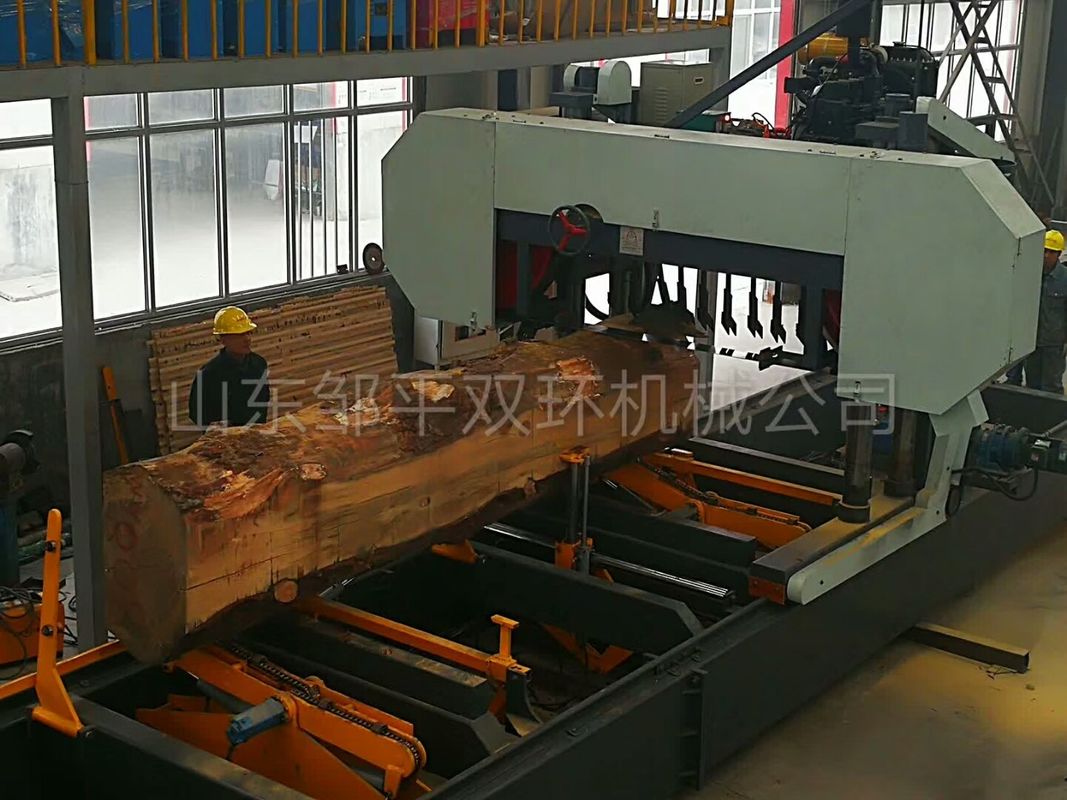

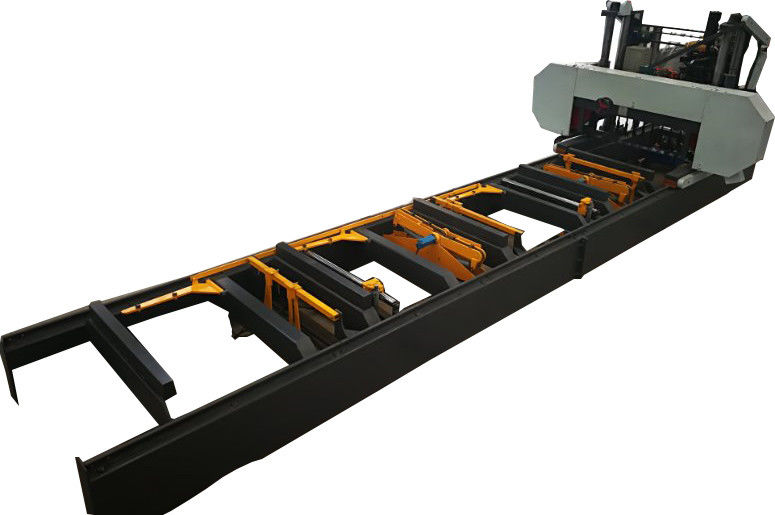

Hydraulic Automatic Wood Cutting Horizontal Band Sawmill,Big Heavy Duty Bandsaw
Hydraulic Automatic Wood Cutting Horizontal Band Sawmill
- Combined with Hydraulic automation technology, the heavy duty hydraulic horizontal band sawmill realizes all digital intelligent control .
- Chinese and English operating systems, automatic rotation, sawing and cutting of large diameter wood, simple operation of equipment, precise cutting thickness, improves wood usage rate .
Technical Data:
|
Model
|
MJH1200E
|
MJH1500E
|
|
Max Sawing Wood Diameter
|
1200mm
|
1500mm
|
|
Saw Wheel Diameter
|
1000mm
|
1070mm
|
|
Max Sawing Wood Thickness
|
400mm
|
400mm
|
|
Standard Sawing Wood Length
|
4500mm
|
4500mm
|
|
Electric Motor Power
|
37kw
|
45kw
|
|
Up/Down Electric Motor
|
2.2kw
|
2.2kw
|
|
Forward/Backward Electric Motor
|
3kw
|
3kw
|
|
Band Saw Blade Width
|
125-150mm
|
125-150mm
|
|
Band Saw Blade Tension
|
Electric
|
|
|
Machine Length
|
7000mm
|
7000mm
|
|
Weight
|
7000kg
|
8500kg
|
Panel Cutting Multi Blade RIp Saw
Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine
Introduction:
- with Infrared positioning
- for big thickness board edger cutting
- high working efficiency, low cost ,fulfil the max. value of the wood
- easy usage, no installation
Technical data :
| Model | ZHW800-70 | ZHW800-80 | ZHW800-100 |
| Sawing wood height | 10-70mm | 10-80mm | 20-100mm |
| Sawing wood width | 800mm | 800mm | 800mm |
| Carbide blade diameter | 280mm | 305mm | 355mm |
| Main motor | 22KW | 30KW | 37KW |
| Blade quantity | 1P-10P | 1P-10P | 1P-10P |
| Rotation speed | 3500/min | 3500/min | 3500/min |
Double Spindle Panel Cutting Multiple Blades Rip Saw -Heavy Duty Type
