Automatic Horizontal Wood Band Saw Mill, Hydraulic Log Cutting Sawmill Horizontal Bandsaw
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | MJH700A, MJH1000A, SW1000E |
| Minimum Order Quantity | 1 SET |
| Price | US $21,600 - 28,200 / Set |
| Packaging Details | container 2oading |
| Delivery Time | within 10 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 500sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Horizontal Wood Band Saw Mill | Type | Band Saw |
|---|---|---|---|
| Max. Sawing Log Diameter | 1300mm | Sawing Log Length | 4500mm Or As Customer Needs |
| Log Rotation | Hydraulic Chain Rotation | Sawn Sizes Setting | PLC Touching Screen Auto Setworks |
| Bandsaw Blade Width | 40-80mm | Saw Wheel Diameter | 700mm |
| Saw Head Walking | Inverter | Sawmill Track | 5800mm Or Extend As Customer Needs |
Product Description

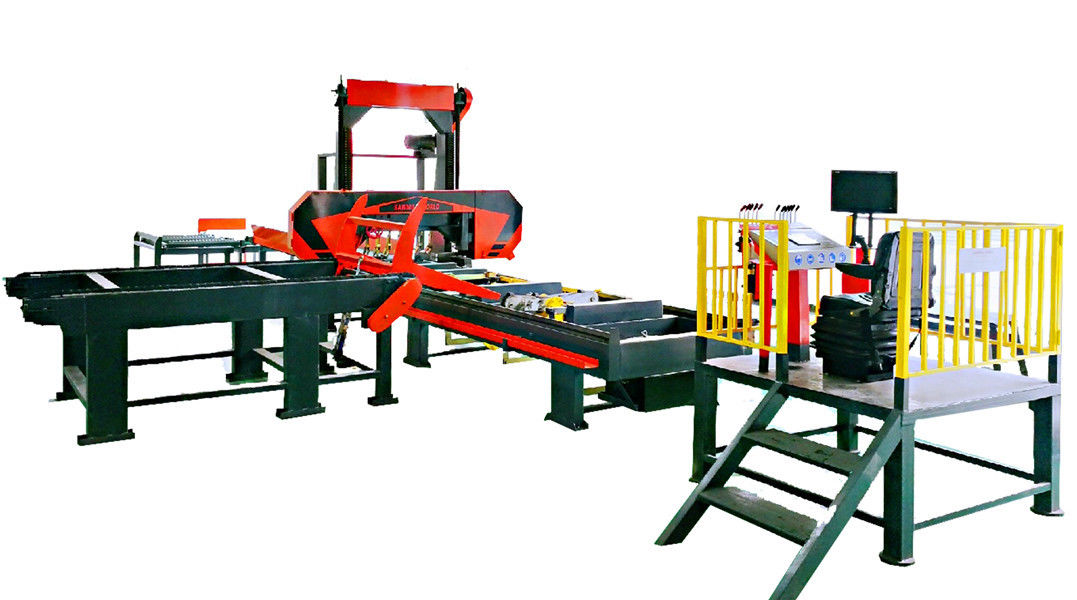

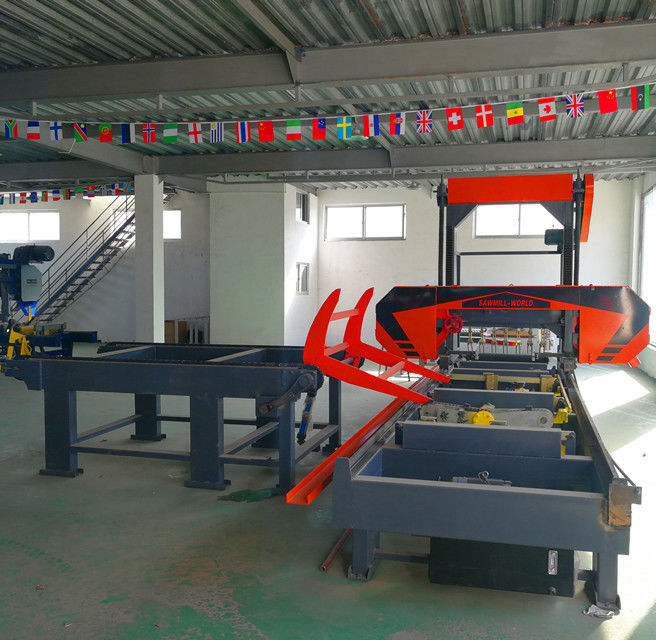

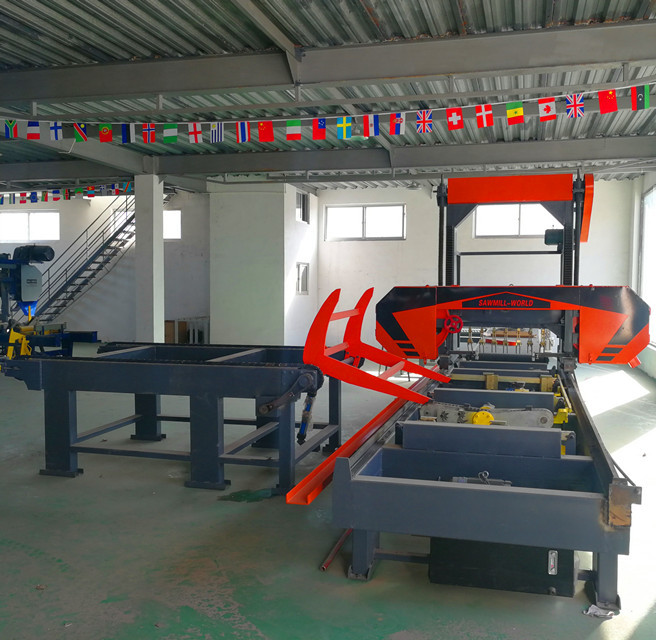

Hydraulic Automatic Horizontal Band Sawmill
Combined with hydraulic automation technology, the hydraulic automatic horizontal band sawmill realizes all digital intelligent control.
Chinese and English operating systems, automatic wood rotation, sawing and cutting of large diameter wood, simple operation, precise cutting thickness to improve wood usage rate .
Technical Specifications:
| Model | MJH1000A | MJH700A |
| Max Sawing Wood Diameter | 1000mm | 700mm |
| Saw Wheel Diameter | 700mm | 700mm |
| Max Sawn Thickness | 300mm | 300mm |
| Standard Sawing Wood Length | 4.5 meters | 4.5meters |
| Main Motor Power | 22kw | 18.5KW |
| Hydraulic motor power | 4kw | 3kw |
| Saw Blade Width | 40mm-80mm | 40mm-80mm |
| Machine Length | 6000mm | 6000mm |
| Weight | 3500kg | 3000kg |
Hydraulic horizontal band sawmill production line
Related Saw Machine
Twin Blades Wood Board Edger/border cutting machine
1. Twin circular blades saw.
2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.
3. With tyres, moveable usage is workable
4. The saw blade moves with infrared light and moves at the same time .
Technical data :
| Model | EG600 | EG800 | EG1000 |
| Sawing width | 50-600MM | 50-800MM | 50-1000MM |
| Sawing height | 10-70mm | 10-70mm | 10-70mm |
| Blade diameter | 2*350MM | 2*350MM | 2*350MM |
| Feeding speed | 20-25m/ minute | 20-25m/ minute | 20-25m/ minute |
| Main motor power | 7.5KW*2 | 7.5KW*2 | 7.5KW*2 |
Photos:
